• Model NO.：GD-261-1
• Flash Point Pensky-Martens Apparatus：Flash Point Tests by Pensky-Martens Closed Cup
• Flammability Application：Both Biodiesel & Blended Fuels
• Igniting Source：Gas or Equivalent
• Dimension：10.340mm*330mm*380mm
• Net Weight：9 Kg
• Flash Point Display：LCD Screen Display
• Warranty：12 Months
• Transport Package：Wooden Case
• Origin：Chongqing China
• HS Code：9031809090
• Production Capacity：200 PCS , Month

Basic Info.

Model NO. GD-261-1 Flash Point Pensky-Martens Apparatus Flash Point Tests by Pensky-Martens Closed Cup Flammability Application Both Biodiesel & Blended Fuels Igniting Source Gas or Equivalent Dimension 10.340mm*330mm*380mm Net Weight 9 Kg Flash Point Display LCD Screen Display Warranty 12 Months Transport Package Wooden Case Origin Chongqing China HS Code 9031809090 Production Capacity 200 PCS / Month

Product Description

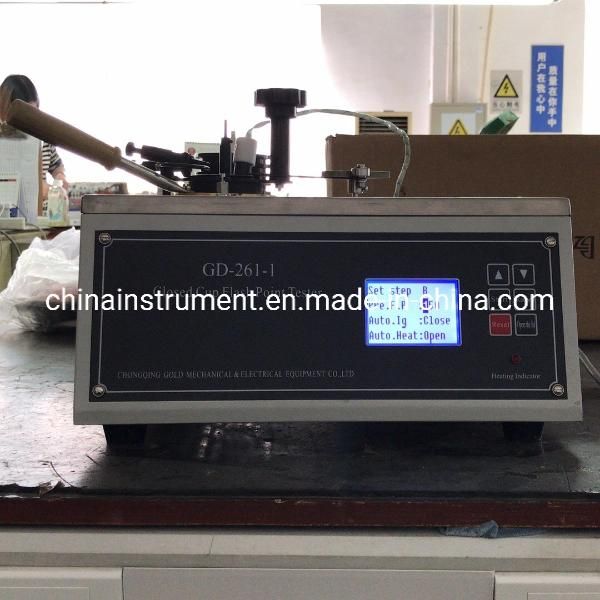

Semi-automatic pensky marten flash point apparatus by Pensky-Martens flash point testing




Pensky marten flash point apparatus:

The flash point is essentially the lowest temperature of the liquid or semi-solid at which vapors from a test portion combine with air to give a flammable mixture and "flash" when an ignition source is applied. Flash point testing is required in the petroleum industry to characterize fuels and petroleum-based products as part of quality control and to meet safety regulations concerning the transport of these products.

The Pensky marten flash point apparatus consists of a closed-cup test arrangement that contains any vapors produced and essentially simulates the situation in which a potential source of ignition is accidentally introduced into a container. For this test, a test portion is introduced into a cup and a close-fitting lid is fitted to the top of the cup. The cup and test portion are heated and stirred, apertures are then opened in the lid to allow air into the cup and also the ignition source to be dipped into the vapors to test for a flash.


Features:

1. Single chip microcomputer control technique.LCD screen displays.English man-machine interaction interface.The heating power is continuously step-less adjustable.The rate of heating up is exact.Easy setting for parameters.
2. The LCD screen has prompting menu,prompting input operation interface.It shows the setted parameters,real-time temperatures and other test parameters.Press the "record"button when the flash point appears.The screen will show and reserve the flash point.
3. The structure is newly design and small.Stainless steel table-board looks clean and beautiful. The Pensky marten flash point apparatus can be used as long as equipped with gas or other civilian fuels. It is easy to use and test results exact.


Specifications:

1. Power supply: AC( 220±10% )V, 50Hz
2. Total power consumption: ≤650W
3. Heating device: (1) The furnace is silicon carbide material. Power is 600W
                                 (2) The heating power is adjustable from 0 W to 600W
4. Heating rate:Procedure A: (5~6)ºC/min, Procedure B:(1~1.5)ºC/min
5. Stirring device: (1)Stirring motor: BYGH101 stepping motor
                                (2) Driving mode: flexible shaft
                                (3) Shaft size: 8mm×40mm
6. Stirring rate:Procedure A: (90~120)RPM, Procedure B: (250±10)RPM
7. Stand oil cup: (1)Internal diameter:50.7mm~50.8mm
                              (2) Depth: 55.7mm~56.0mm
                              (3) Marking depth of oil testing capacity: 33.9mm~34.3mm
                              (4) Oil test capacity: about 70ml
8. Igniting source: Pipeline gas or liquefied petroleum gas
9. Suitable environment: Ambient temperature:(15~35)ºC; Relative humidity:≤85%
10. Dimension: 340mm×330mm×380mm
11. Net weight: 9kg
