WDW-500E Digital Double Column Universal Material 500KN Tensile Testing Machine with PC Control
DongGuan HongTuo Instruments Co., Ltd.- Warranty:1 year
- Type:Universal Testing Machine
- Display:Digital
- Certification:CE, FCC
- Usage:Tensile Strength Testing Equipment
- Capacity:500 KN
Base Info
- Model NO.:WDW-500E
- Tensile Space:700mm (Can be customized)
- Compression Space:700mm (Can be customized)
- Effective Spacing:650mm (Can be customized)
- Testing Before Delivery:Yes
- After-sale Customer Service:Yes
- Transport Package:Standard Exporting Wooden Package
- Trademark:DahoMeter
- Origin:Dongguan, China
- HS Code:9027809900
- Production Capacity:300 Sets,Month
Description
Basic Info.
Model NO. WDW-500E Tensile Space 700mm (Can be customized) Compression Space 700mm (Can be customized) Effective Spacing 650mm (Can be customized) Testing Before Delivery Yes After-sale Customer Service Yes Transport Package Standard Exporting Wooden Package Trademark DahoMeter Origin Dongguan, China HS Code 9027809900 Production Capacity 300 Sets/MonthProduct Description
WDW-500E Digital Double Column Universal Material 500KN Tensile Testing Machine with PC Control
It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
Application industry:
Metal materials; aerospace; powder metallurgy; magnetic materials, ceramics manufacturing; rubber and plastics; metrological quality inspection; commodity inspection and arbitration; technical supervision departments; universities; research laboratories; basic materials laboratory; metallurgical steel; machinery manufacturing; Automobile production; textile and chemical fiber; wire and cable; packaging materials and food; instrumentation; medical equipment; petrochemical; civil nuclear energy; energy battery; basic materials;
Application Products:
Medium strength metal Sintered products Friction material Rubber Plastic Film Fiber and thin lines Adhesive | Foam material Tape Elastomer Connector Biomaterials Wood and paper products Metal foil Metallic line | Oil bearing Ceramics Parts Fastener Composite materials |
Standard:
ASTMA370,ASTME4,ASTME8,ASTME9,ISO6892,ISO7438,ISO7500-1,EN10002-4,GB/T228-2002,etc.
Main Feature:1.Adopt floor structure,High Stiffness, lower for tensile, upper for compression,upper for tensile, lower for compression, double space. The beam is step less lifting.
2.Adopting ball screw drive, realize no clearance transmission,make sure the precision control of the test force and deformation speed.
3.The shiel plate with limit mechanism used to control the beam moving range, in order to avoid sensor damaged due to the moving distance is too large.
4.The table, moving beams is made of high quality precision machining steel plate , not only reduce the vibration generated by specimen fracture, but also improve the stiffness.
5.Three columns of mandatory orientation, make the main unit rigidity much improved, to further ensure the repeatability of measurement.
6.Adopt bolt type grip installation, make the grip replace easier.
7.Adopt AC servo driver and AC servo motor, with stable performance,more reliable. Have over-current, over-voltage, over speed, overload protection device. Specification:
Model | WDW-500E |
Max. Load | 500 KN |
Structure | Four-column Floor Model (Upper Is Compression And Lower Is Tensile) |
Control Method | Computer Automatic Control |
Load Accuracy | 0.5 Class |
Load Range | 0.2%~100% FS (1KN~500KN) |
Motor | Panasonic Motor, Made In Japan |
Sensor | Import Sensor, Made In USA |
Resolution | 1/300000 |
Measuring Range Of Deformation | 2%~100% |
Accuracy Indication Of Deformation | ≤±0.5% |
Disp. Indicating Relative Error | ≤±1% |
Displacement Resolution | 0.04um |
Adjusting Range Of Control Rate Of Load | 0.005~5%FS/S |
Control Precision Of Control Rate Of Load | When rate < 0.05% FS/s, the precision is within ± 2% of setting value; When rate ≥ 0.005%FS/s, the precision is within ± 1% of setting value. |
Adjustment Scope Of Deformation Rate | 0.005~5%FN/S |
Accuracy Of Deformation Rate | Test Speed<0.05%FN/s, within the ±2% of the preset value, Test Speed≥0.05%FN/s, within the ±0.5% of the preset value. |
Adjusting Range Of Displacement Rate | 0.05~200mm/min (Can be customized) |
Control Precision Of Displacement Rate | When rate < 0.5mm/min, within ± 1% of setting value; When rate ≥ 0.5mm/min, within ± 0.5% of setting value. |
Scope Of The Consistent Load Deformation And Displacement Control | 0.5%~100%FS |
Accuracy Of The Consistent Load Deformation And Displacement Control | Preset value≥10%FN, within the ±0.1% of preset value; Preset value<10%FN, within the ±1% of preset value. |
Tensile Space | 700mm (Can be customized) |
Compression Space | 700mm (Can be customized) |
Effective Spacing | 650mm (Can be customized) |
Load Cell Configuration | One PC (Max Load). More load cells can be added according to customer requirement. |
Extend Configuration | Large deformation extensometer, High or low temperature test chamber, High temperature oven. |
Power Supply | AC220V±10%,50Hz (Can be customized) |
Grips | Hydraulic Automatic Grips |
Dimension | 1360*1000*2830mm |
Weight | 3100 KG |

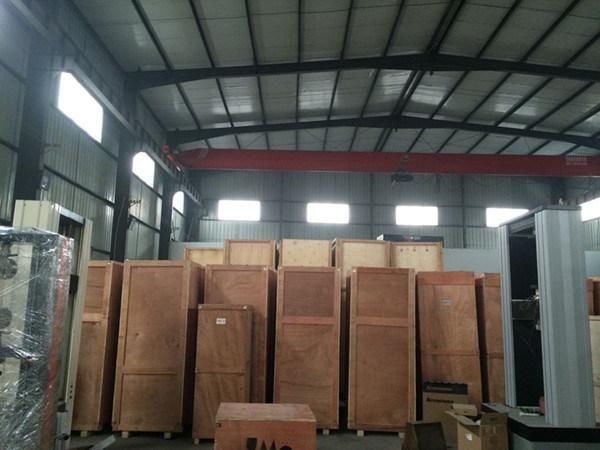

Packaging & Shipping
Company Information
We, Dongguan Hongtuo Instrument Co., Ltd, a China based company, are pleased to introduce ourselves as a notable testing equipments and machines manufacturer.Our company was established in the year 2000 with two primarily motto, which includes complete client satisfaction and to reach top-most position in the international market. The exceptional quality of our products like Gold Tester,Gold Testing Machine,Density Meter,Universal Tensile Testing Machine,Climatic Chamber,Melt Flow Index Tester,Charpy Impact Testing Machine,Tap Density Tester,Abrasion Tester,Ultrasonic Flaw Detector,Surface Roughness Tester and other Laboratory Testing Equipment, etc. is our company's USP.
Certification
FAQ
1.Quality Insurance
We guarantee this instrument for 12 months and life-long maintenance
We will be responsible for fixing or replacing the instrument if quality issue was arisen,the service is excluding if the machine is breakdown caused by following reasons:
(1) Wrong operation;
(2) Fixed or refitted personally;
(3) The machine itself is not the reason caused breakdown;
(4)Applying the machine under the serious conditions.such as high
temperature,moist, corrosive gas,or vibration.
(5)Move or transportation as soon as installed.
(6)Consumables and easy-loss components.
(7)Natural disaster
2.After-sales Service
a.If errors occur,please refer to the troubleshooting tips of the instruction manual.
b.Please contact with our after-sales service department or distributor in time if can't clear fault.
c.DahoMeter after-sales hot line 400 830 0646
3.Are we manufacturer made copy product or original product?
We are the original manufacturer.
4.Why choose us
We deep understood what's you need is not only product,but also all-around service support,especially for technical instruction and after-sales service.
a.We have been specialized in this field since 2002.
b.Professional researching and technology team.
c.Customer service team.
5.Can you offer quality certification?
Yes.We can offer quality certification issued by our quality control department with free of charge.or issued by third-party international inspection organizations with extra charge.
6.Can you do the calibration and testing before handover the goods?
Yes.We do testing and calibration for every product before delivery
