• Model NO.：WDW-300D
• Max.Load KG：30000 KG
• Maximum stretching/compression space：500mm
• Maximum test width：570mm
• Testing Before Delivery：Yes
• After-sale Customer Service：Yes
• Transport Package：Standard Exporting Wooden Package
• Trademark：DahoMeter
• Origin：Dongguan, China
• HS Code：9027809900
• Production Capacity：300 Sets,Month

Basic Info.

Model NO. WDW-300D Max.Load KG 30000 KG Maximum stretching/compression space 500mm Maximum test width 570mm Testing Before Delivery Yes After-sale Customer Service Yes Transport Package Standard Exporting Wooden Package Trademark DahoMeter Origin Dongguan, China HS Code 9027809900 Production Capacity 300 Sets/Month

Product Description

Computer Control Electronic Lab Universal Testing Equipment Tensile Strength Tester WDW-300D


It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.


Application industry:



Metal materials; aerospace; powder metallurgy; magnetic materials, ceramics manufacturing; rubber and plastics; metrological quality inspection; commodity inspection and arbitration; technical supervision departments; universities; research laboratories; basic materials laboratory; metallurgical steel; machinery manufacturing; Automobile production; textile and chemical fiber; wire and cable; packaging materials and food; instrumentation; medical equipment; petrochemical; civil nuclear energy; energy battery; basic materials;



Application Products:

Medium strength metal Sintered products Friction material Rubber Plastic Film Fiber and thin lines Adhesive

Foam material Tape Elastomer Connector Biomaterials Wood and paper products Metal foil Metallic line

Oil bearing Ceramics Parts Fastener Composite materials

Standard:
 ASTMA370,ASTME4,ASTME8,ASTME9,ISO6892,ISO7438,ISO7500-1,EN10002-4,GB/T228-2002,etc.

Main Feature:
 1.1 Price advantage We increase our own research and development efforts, built processing center, produce the core parts independently, so we could reduce link costs with the same quality. Our good quality products could save you much more than some other low price but bad quality products. Reducing the failure rate of the machine to reduce the customer's maintenance costs, but also improve the efficiency of the machine, this price with high quality could give customers real benefits.

1.2 Service advantages A full range of services making customer satisfaction reflect our professional. Pre-sale, we provide comprehensive advisory services, tailored for different industries to meet customers' special needs. After-sale, we could supply door to door installation and training services according to customer requirements . During the use process, if there is any problem, your could reach our technical engineers in time by e-mail, remote video, telephone and other possible ways. The machine parts is free of charge during the warranty period ,and machines lifetime maintenance.

Specification:

1 Maximum stretching/compression space: 500mm;
2 Maximum test width: 570mm;
3 Maximum stroke of the beam: 1100mm
4 Maximum test force: 300 kN;
5 Test machine level: 1;
6 Test force measurement range: 2%-100% FS;
7 Test force measurement accuracy: ±1%;
8 The force resolution: 1/500000 of the full scale (only a resolution in full scale, regardless of file);
9 Displacement measurement accuracy: ±1%;
10 Displacement measurement resolution: 0.001mm / 0.001μm;
11 Deformation measurement accuracy: ±1%;
12 Deformation measurement resolution: 0.001mm;
13 Displacement control speed range: 0.001 ~ 500mm / min;
14 Displacement control rate accuracy: within ±1.0% of the set value,  the rate is <0.01 mm/min;
within ±0.2% of the set value , the rate is ≥0.01 mm/min, ;
15 Stress and strain control rate adjustment range : 0.005~5%FS/S ;
16 Stress and strain control rate adjustment accuracy: when the rate is <0.05% FS, it is within ±2% of the set value;
rate ≥0.05% FS, it is within ±0.5% of the set value ;
17 Host size: 1055 × 1010 × 2310mm;
18 Weight: 1600kg;
19 Power: 5kW;
20 Power supply: three-phase 380V ± 10%, 50Hz;
21 Environmental requirements: no vibration, no dust; room temperature 10 ° C ~ 35 ° C; humidity ≤ 80%;
No vibration around, no corrosive medium, no strong magnetic field interference;

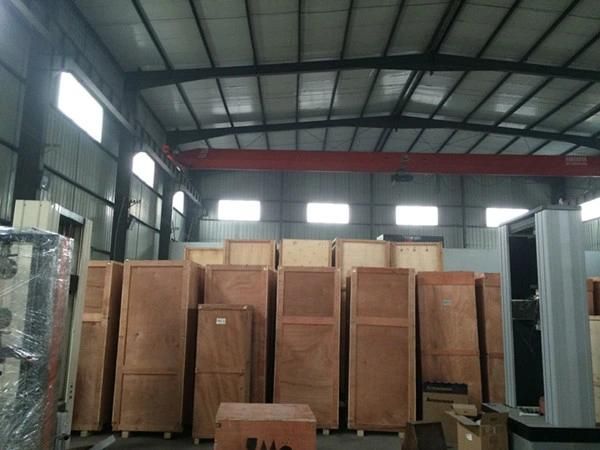

Packaging & Shipping





Company Information

We, Dongguan Hongtuo Instrument Co., Ltd, a China based company, are pleased to introduce ourselves as a notable testing equipments and machines manufacturer.Our company was established in the year 2000 with two primarily motto, which includes complete client satisfaction and to reach top-most position in the international market. The exceptional quality of our products like Gold Tester,Gold Testing Machine,Density Meter,Universal Tensile Testing Machine,Climatic Chamber,Melt Flow Index Tester,Charpy Impact Testing Machine,Tap Density Tester,Abrasion Tester,Ultrasonic Flaw Detector,Surface Roughness Tester and other Laboratory Testing Equipment, etc. is our company's USP.



Certification

FAQ

1.Quality Insurance

We guarantee this instrument for 12 months and life-long maintenance
We will be responsible for fixing or replacing the instrument if quality issue was arisen,the service is excluding if the machine is breakdown caused by following reasons:
(1) Wrong operation;
(2) Fixed or refitted personally;
(3) The machine itself is not the reason caused breakdown;
(4)Applying the machine under the serious conditions.such as high
temperature,moist, corrosive gas,or vibration.
(5)Move or transportation as soon as installed.
(6)Consumables and easy-loss components.
(7)Natural disaster

2.After-sales Service

a.If errors occur,please refer to the troubleshooting tips of the instruction manual.
b.Please contact with our after-sales service department or distributor in time if can't clear fault.
c.DahoMeter after-sales hot line 400 830 0646

3.Are we manufacturer made copy product or original product?
We are the original manufacturer.

4.Why choose us

We deep understood what's you need is not only product,but also all-around service support,especially for technical instruction and after-sales service.
a.We have been specialized in this field since 2002.
b.Professional researching and technology team.
c.Customer service team.

5.Can you offer quality certification?

Yes.We can offer quality certification issued by our quality control department with free of charge.or issued by third-party international inspection organizations with extra charge.

6.Can you do the calibration and testing before handover the goods?

Yes.We do testing and calibration for every product before delivery
