• Model NO.：LY71
• Accuracy Grade：1
• Load Way：Mechanical Load
• Loading Method：Static Load
• Display：Digital
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Without
• Division Value Per Cell：1j 2j
• Impact Speed：5.24m,S
• Span of Sample Support：40mm
• Impact Blade：2-2.5mm
• Angle of Impact Knife：30°
• Knife Thickness：16mm
• Specimen Specification：10 *10 *55mm
• Temperature Range：Room Temperature
• Feeding Speed：Less Than 2 Second
• Appearance：460*610*1400mm
• Net Weight：About 40kg
• Motor Power：370W
• Power Supply：Three-Phase Four-Wire 380V,50Hz
• Transport Package：Plywood Standard Ocean Case
• Specification：750*500*2100mm
• Trademark：CHENJI or OEM
• Origin：China Jinan or Others
• Production Capacity：2800 Set Per Year

Basic Info.

Model NO. LY71 Accuracy Grade 1 Load Way Mechanical Load Loading Method Static Load Display Digital Control Computer Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position Without Division Value Per Cell 1j 2j Impact Speed 5.24m/S Span of Sample Support 40mm Impact Blade 2-2.5mm Angle of Impact Knife 30° Knife Thickness 16mm Specimen Specification 10 *10 *55mm Temperature Range Room Temperature Feeding Speed Less Than 2 Second Appearance 460*610*1400mm Net Weight About 40kg Motor Power 370W Power Supply Three-Phase Four-Wire 380V/50Hz Transport Package Plywood Standard Ocean Case Specification 750*500*2100mm Trademark CHENJI or OEM Origin China Jinan or Others Production Capacity 2800 Set Per Year

Product Description

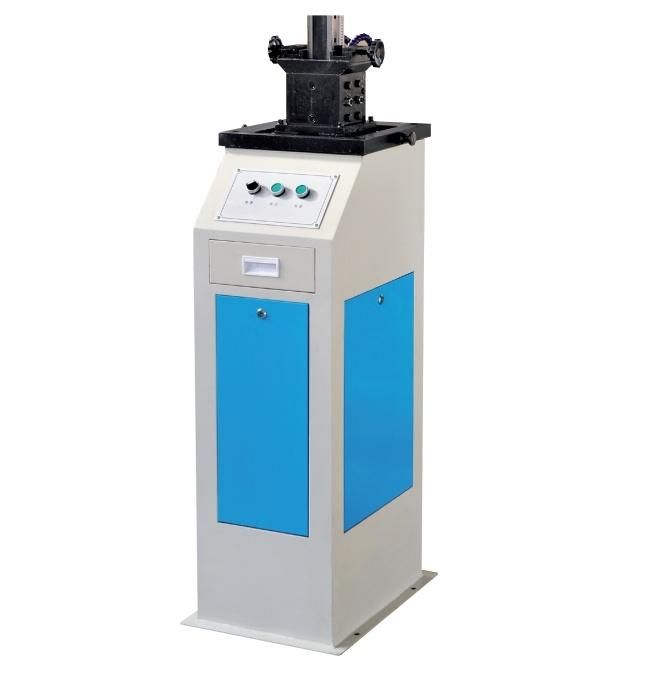

LY71-UV type impact sample notch electro-hydraulic broaching machine
1. Introduction
Impact test specimen gap for broaching machine is special equipment for the preparation of sample gap. The broaching machine on 10 x 10 x55mm sample YuanPi can a broaching the qualified V and U sample gap, fully comply with GB/T229-2007 "metal charpy notched impact test method" in the impact sample the accuracy requirement of the gap.Equipment has simple structure, high precision, long life, low noise, reliable, stable performance, aesthetically pleasing, etc, is preferred by the majority of users in all walks of life.

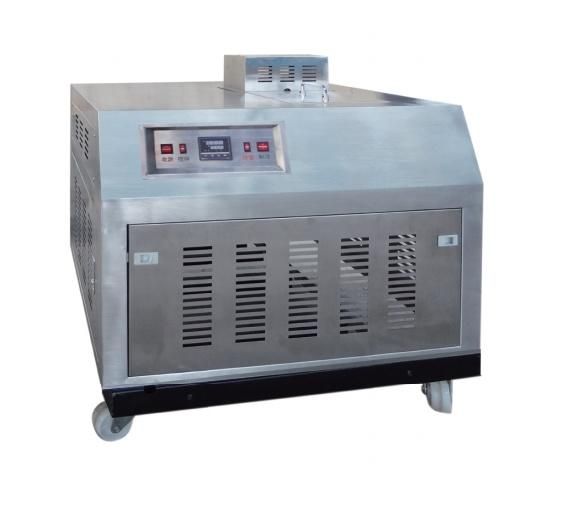

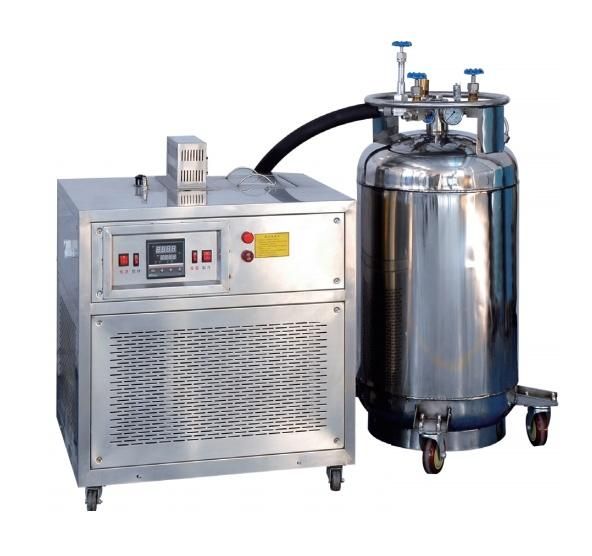

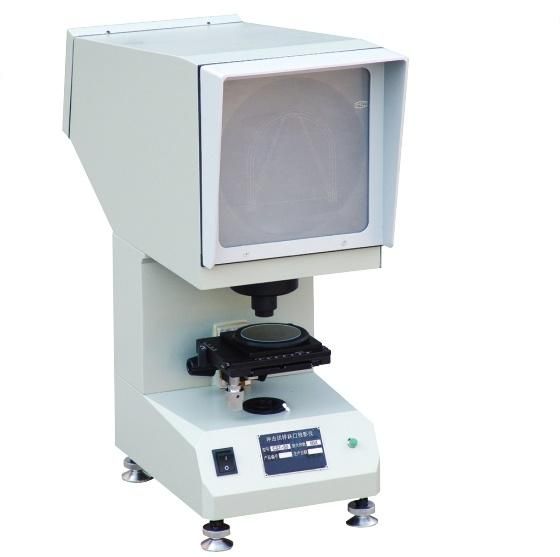

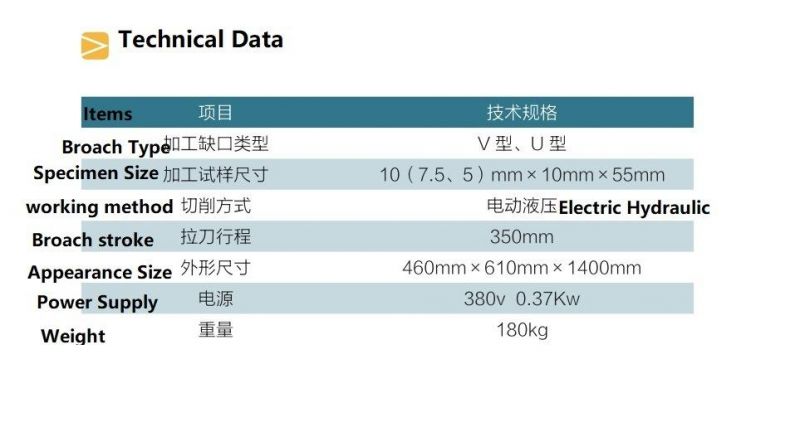

2. Technical Specification  4. Grouped equipment
