Oil Tester Automatic Petroleum Products Carbon Residue Content Apparatus by Micro Method ASTM D4530

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • Product Name：Automatic Petroleum Products Carbon Residue Conten
  • Application：Carbon Residue of Petroleum Products
  • Heating Method：Micro-Method
  • Resolution：0.1%(M,M)
  • Measurement Range：0.1%~30%(M,M)
  • Auto-Calculate and Print：Yes

Base Info

  • Model NO.：GD-17144
  • Standard：ASTM D4530, GB,T17144
  • Automatic/Manual：Automatic
  • Test Sample：Petroleum Products
  • Sample Quantity：1
  • RS232 Port：Yes
  • Transport Package：Wooden Case Gd-17144
  • Trademark：gold
  • Origin：China
  • Production Capacity：100 Piece,Pieces Per Month

Description

Basic Info.

Model NO. GD-17144 Standard ASTM D4530, GB/T17144 Automatic/Manual Automatic Test Sample Petroleum Products Sample Quantity 1 RS232 Port Yes Transport Package Wooden Case Gd-17144 Trademark gold Origin China Production Capacity 100 Piece/Pieces Per Month

Product Description

Automatic Petroleum Products Carbon Residue Content Apparatus by Micro method ASTM D4530



Introduction:

Micro Carbon Residue Tester is suitable to determine the amount of carbon residue of petroleum products.


Features:

1. ASTM D4530 Carbon Residue Tester  adopts all-in-one structure. It consists of two parts: electrical control chamber and high temperature heating furnace.
2. Carbon Residue Tester  adopts single chip machine system. The instrument controls the whole procedures automatically according to program preset.

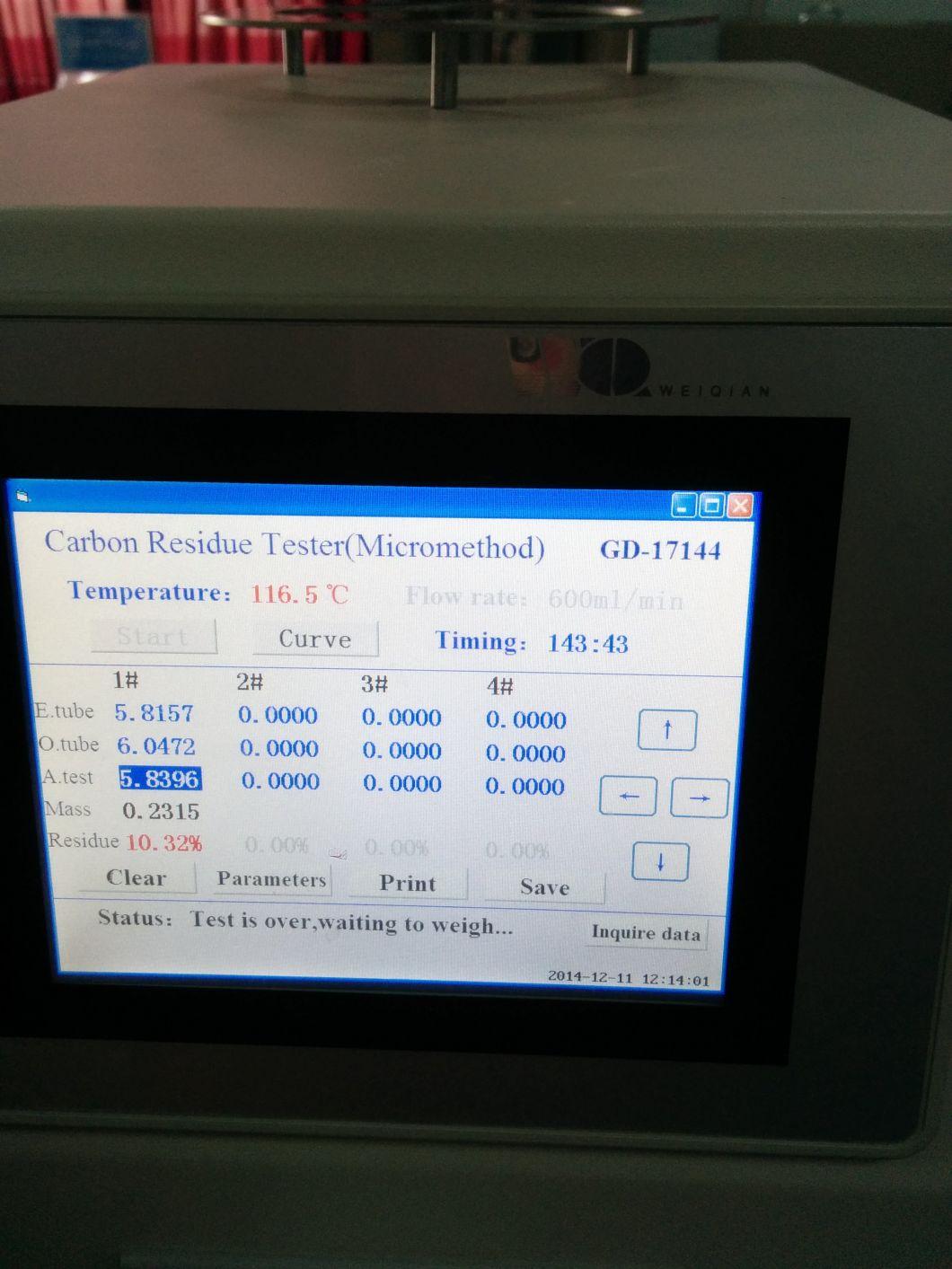

3. The screen adopts all English interface.
4. Carbon Residue Tester  controls the flow rate of nitrogen, temperature heating rate and preset temperature automatically.
5. It collects test data and calculates results automatically.
6. The measurement range of this instrument is 0.10%(m/m)~30.0%(m/m).
7. ASTM D4530 Carbon Residue Tester  can also be used to determine the petroleum products composed of distillate oils which carbon residue is lower than 0.10%(m/m). But the specimen shall be sampling to 10%(V/V)distillation residue according to GB/T6536 firstly.
8. It equips a electric balance to achieve the automation of sample weighing and data input.


Specifications:

Product nameASTM D4530 MCRT Micro Method Carbon Residue Tester
Power supply AC(220±10%) V, 50Hz
Maximum power consumption1600W
Temperature of coke chamber500ºC
Temperature control accuracy±2ºC
Heating power1500W
Ambient temperature 5ºC~35ºC
Relative humidity≤85%
Dimension520mm*360mm*525mm

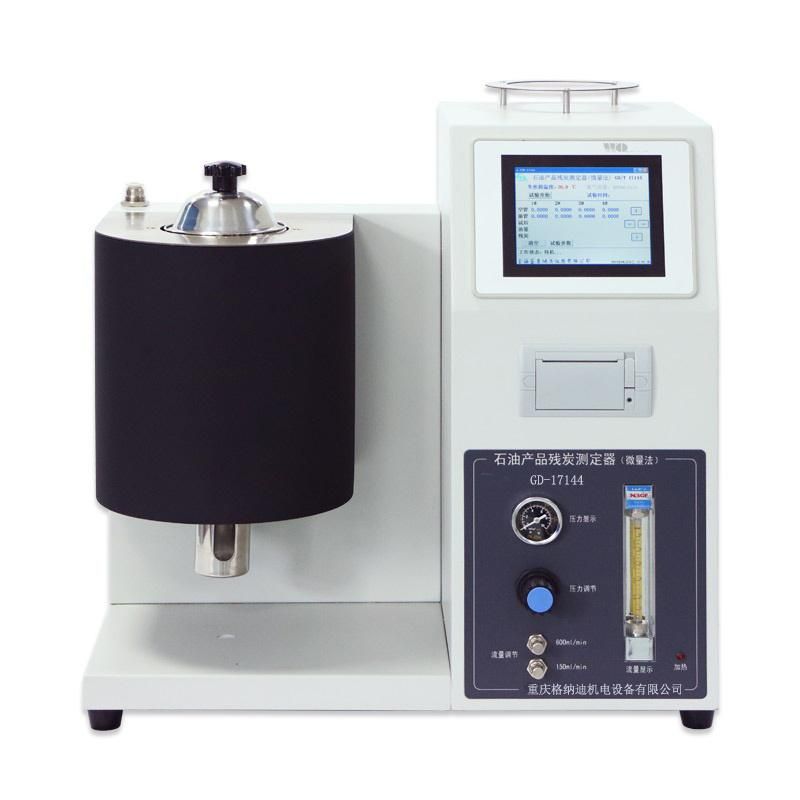

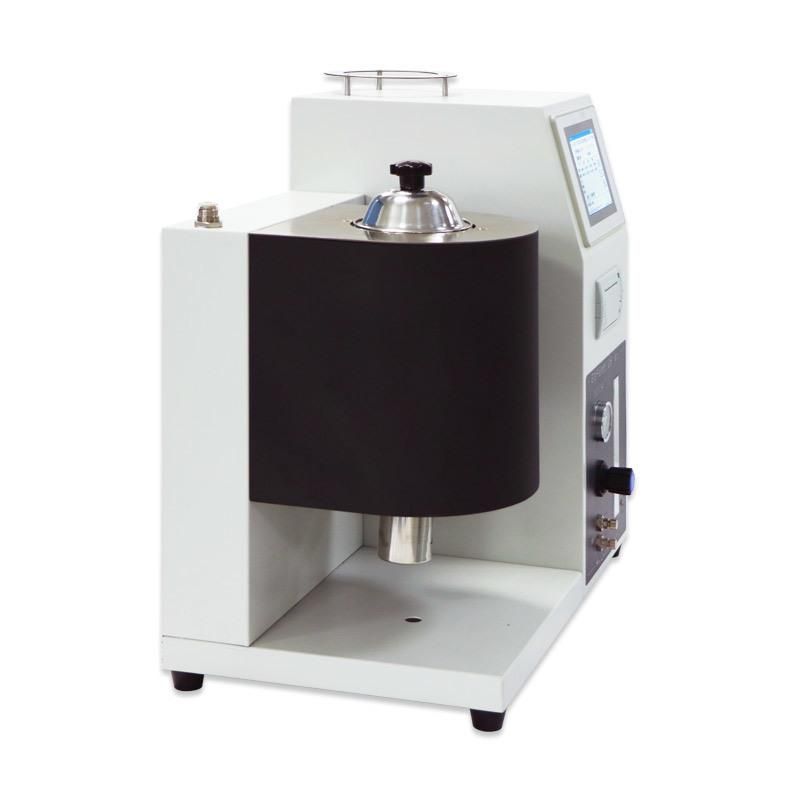

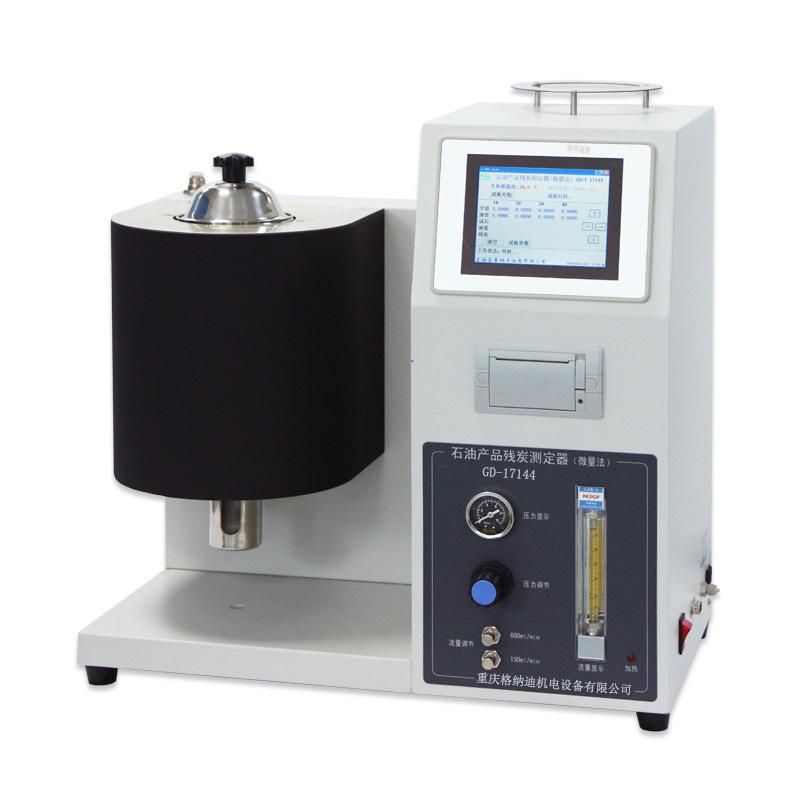

Detail Images:
Oil Tester Automatic Petroleum Products Carbon Residue Content Apparatus by Micro Method ASTM D4530Oil Tester Automatic Petroleum Products Carbon Residue Content Apparatus by Micro Method ASTM D4530Oil Tester Automatic Petroleum Products Carbon Residue Content Apparatus by Micro Method ASTM D4530

Oil Tester Automatic Petroleum Products Carbon Residue Content Apparatus by Micro Method ASTM D4530
