• Model NO.：GW
• Accuracy Grade：1
• Load Way：Mechanical Load
• Loading Method：Static Load
• Display：Digital
• Control：Manual Control
• Weight：1500-1800kgs
• Power Source：AC220V
• Rotating Speed：3.7r,Min
• Central Distance：165mm
• Bar Diameter：6-40mm 20-50mm
• Function：Steel Bar Strength Testing
• Working Plate Diameter：760mm
• Transport Package：Plywood Standard Package
• Production Capacity：100 PCS , Month

Basic Info.

Model NO. GW Accuracy Grade 1 Load Way Mechanical Load Loading Method Static Load Display Digital Control Manual Control Weight 1500-1800kgs Power Source AC220V Rotating Speed 3.7r/Min Central Distance 165mm Bar Diameter 6-40mm 20-50mm Function Steel Bar Strength Testing Working Plate Diameter 760mm Transport Package Plywood Standard Package Production Capacity 100 PCS / Month

Product Description

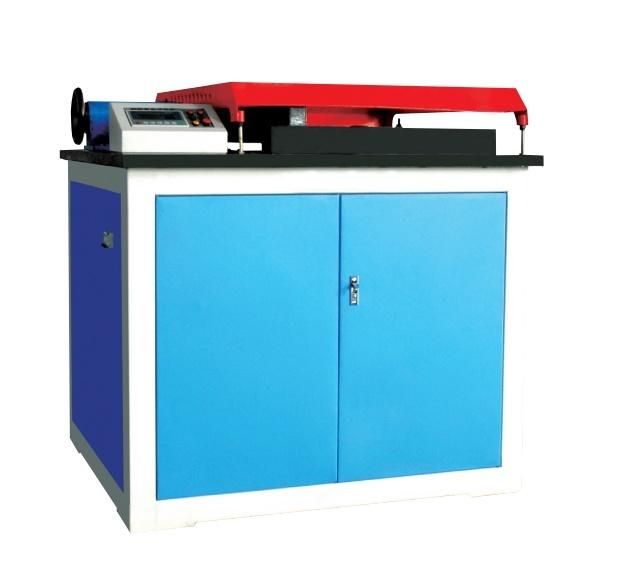

GW Series Steel Bar Bending Strength Test Machine


1. Feature and Usage
Steel bar bending machine is to flat steel is reverse bend test, test equipment, the equipment main technical parameters and indexes accord with YB/T5126-2003 / / GB5029 GB1499.2-2007-85 "steel flat reverse bend test method" requirement.
For the steel mills and the construction unit test an experimental equipment reinforced bar inflection performance, at the same time to adapt to the fan in the construction industry field of reinforced bending, used to test and construction.Is the original GW - 2/25 type and GW - 2140 type of alternative products, by changing the different parts with one machine can replace the two machine, saved money for our customers.
The complete equipment performance, good quality and have compact structure small volume, simple operation easy to master, 36 v safety voltage control, digital display intuitive bending Angle, smooth operation low noise, use reliable long life, simple design reasonable maintenance convenient lubrication and so on. Characteristic is limit and the vulnerability of a design more reasonable, easy to replace parts, so long service life.

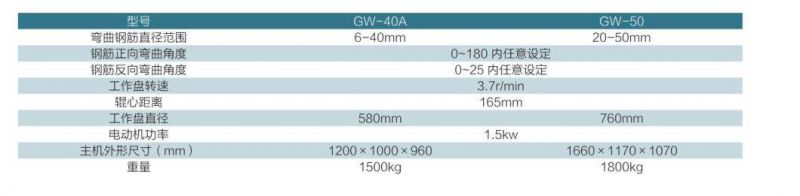

2. Technical Specification :
