• Model NO.：WAW-D
• Accuracy Grade：1
• Load Way：Hydraulic
• Loading Method：Static Load
• Display：Digital
• Control：Computer Control
• Weight：1000-2000Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Usage：Steel Metallographic Material
• Accuracy：Class 1 ,0.5
• Loading Max：300 600 1000kn
• Delivery Time：20 Days
• Tensile Jaw：10-20-60mm
• Piston Stroke：250mm
• Column Distance：525mm
• Tensile Fixture：Hydraulic Automatic Clamp Fixture
• Flat Jaws for Steel Plate：0-40mm
• Compression Plate：Φ200mm
• Bending Roller Width：30X120mm
• Bending Span：30-450mm
• Main Body Size：860X640X2300mm
• Oil Control Cabinet：1200X600X750mm
• Total Weight：3.8tons
• Transport Package：Plywood Case for Container Loading
• Trademark：CHENJI or OEM
• Origin：China Jinan or Others
• HS Code：9024800000
• Production Capacity：200 Set Per Year

Basic Info.

Model NO. WAW-D Accuracy Grade 1 Load Way Hydraulic Loading Method Static Load Display Digital Control Computer Control Weight 1000-2000Kg Power Source AC220V Oil Cylinder Position Under Usage Steel Metallographic Material Accuracy Class 1 /0.5 Loading Max 300 600 1000kn Delivery Time 20 Days Tensile Jaw 10-20-60mm Piston Stroke 250mm Column Distance 525mm Tensile Fixture Hydraulic Automatic Clamp Fixture Flat Jaws for Steel Plate 0-40mm Compression Plate Φ200mm Bending Roller Width 30X120mm Bending Span 30-450mm Main Body Size 860X640X2300mm Oil Control Cabinet 1200X600X750mm Total Weight 3.8tons Transport Package Plywood Case for Container Loading Trademark CHENJI or OEM Origin China Jinan or Others HS Code 9024800000 Production Capacity 200 Set Per Year

Product Description

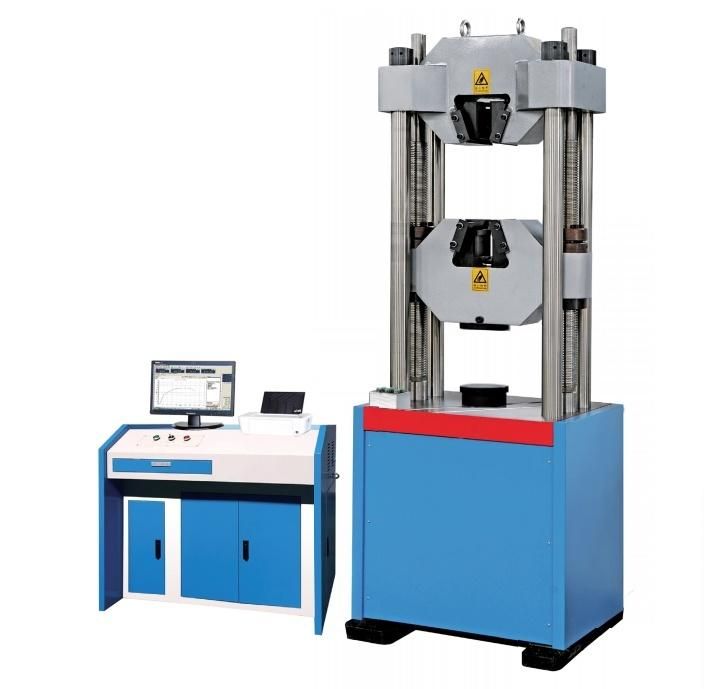

Auto Control Computerized ASTM ISO GB ISO JS Steel Standard 30Ton 60Ton 100Ton WAW-D Tensile Testing Machine with Hydraulic Powering
1. Actual Appliance This machine adopts microcomputer control digital broadband, digital valve drive precision hydraulic cylinder, the test force, displacement and deformation for a variety of automatic control mode, complete the specimen tensile, compression, bending test, accord with national standard GB/T228.1-2010 "metallic materials tensile testing at" requirements and other requirements.His host machine adopts hydraulic cylinder underneath type; Adjustment test space power and transmission device installed at the bottom of the tester is stable; Upper and lower jaw to the full open structure, automatic hydraulic press system, convenient clamping sample, stability is good.Lenovo brand computer, performing the experiment parameters setting, in the process of process control, data acquisition, processing, analysis, storage and display (test data including: material tensile strength, elastic modulus, elongation, yield strength and extension strength, etc.), control and measurement precision and accuracy.

2. Control Parts
Amplifier and 24 high precision AD converter with high precision, efficient code: + 300000; Test force resolution 1/350000.Load is realized by using PID control, constant speed control, speed range: 0.2 to 5% FS/S with functions of load.Displacement is realized by using PID control, constant speed control, speed range: 0.6 to 60 mm/min with displacement function.Strain is realized by using PID control, constant speed control, speed range: 0.00025 / S - 0.0025 / S with functions of strain to keep.

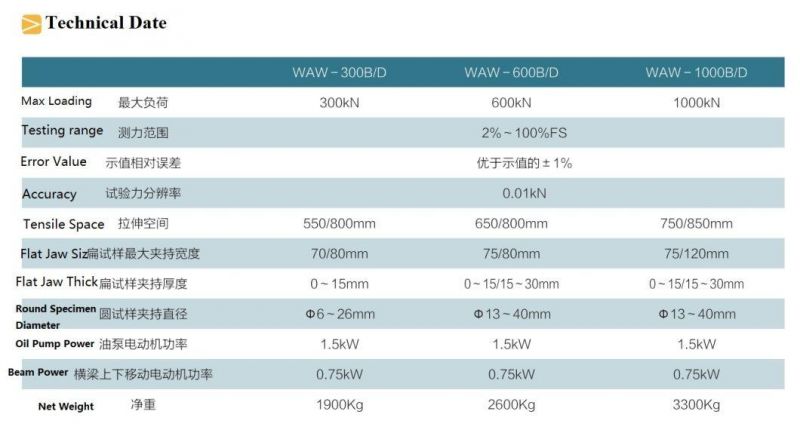

3. Technical Data

 4. Widely Used for steel bar, steel Rebar etc...
