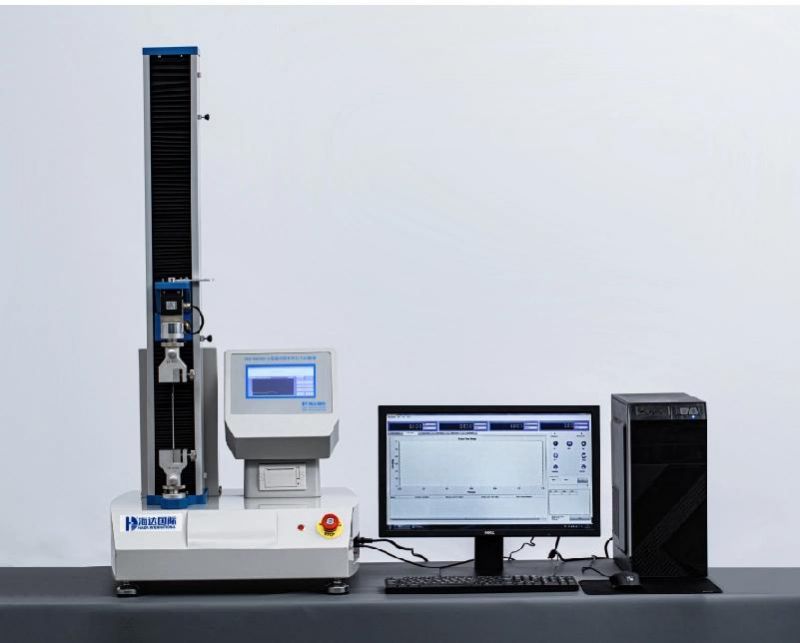

Computer Control Universal Material Tensile Strength Tester

Dongguan Haida Equipment Co., Ltd.
  • After-sales Service：1 Year
  • Warranty：1 Year
  • Max Diameter of Workpiece：<500mm
  • Mass Scope of Workpiece：<900kg
  • Type：Tensile Testing Machine
  • Maxcapacity：100kg

Base Info

  • Model NO.：HD-B609B-S
  • Accuracy Grade：0.5
  • Load Way：Electronic Load
  • Loading Method：Dynamic Load
  • Display：Digital
  • Control：Computer Control
  • Weight：0-100Kg
  • Power Source：AC220V
  • Product Name：Tensile Strength Tester
  • Capacity：5, 10, 20, 50, 100, 200kg (Optional)

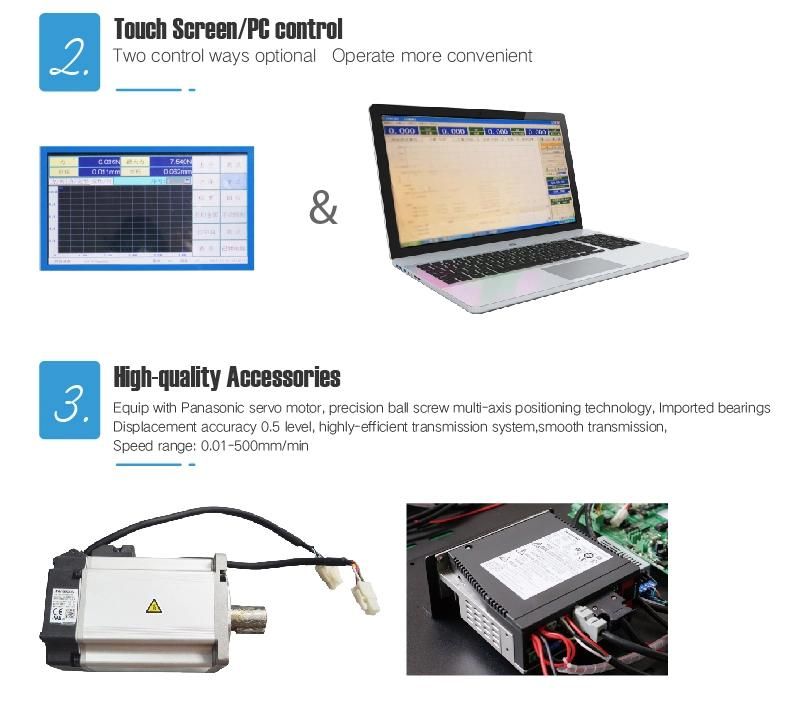

  • Control System：Panasonic Servo Motor
  • Load Resolution：1,250, 000
  • Accuracy：0.5%
  • Test Speed：0.01 to 500 mm,Min
  • Operate and Display：Computer
  • Stroke：1000mm
  • Power：One Phase, AC 220V
  • Sensor：Celtron Load Cell
  • Transport Package：Strong Plywood Case
  • Specification：ASTM, ISO, CE
  • Trademark：Haida
  • Origin：Dongguan, China
  • HS Code：9024109000
  • Production Capacity：150 Sets Per Month

Description

ItemDescriptionFrame capacity200kgLoad cell brandGermany brand load cell for high accuracy

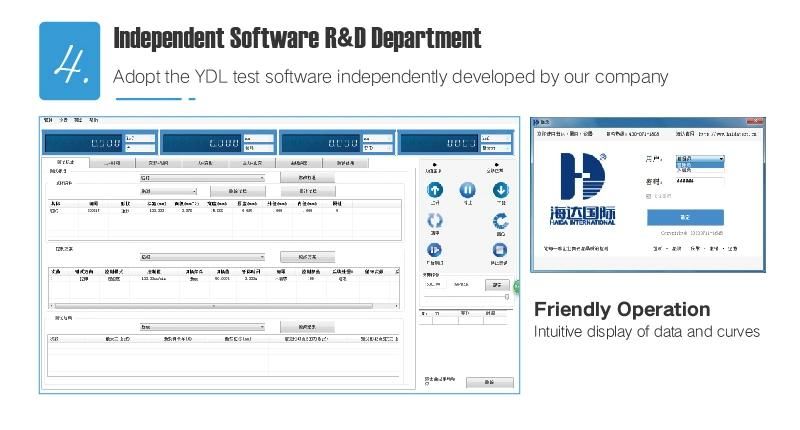

200kg (5,10,50,100kg are optional)Load accuracy0.5% F.SControl systemLCD with build-in printer /PC with windows 7 systemMotorPanasonic servo motor w/AC variable speed drive system, high-precision mechanical ball screw rodForce readingkgf, Ibf, N, KN, T etcVertical test space900mm including fixtureTest speed0.1~500mm/min (adjustable)SoftwareTM 2101Curves displayLoad- elongation, Elongation-time, Time-elongation, Stress-strainData displayMax. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc…Safety featuresE-Stop

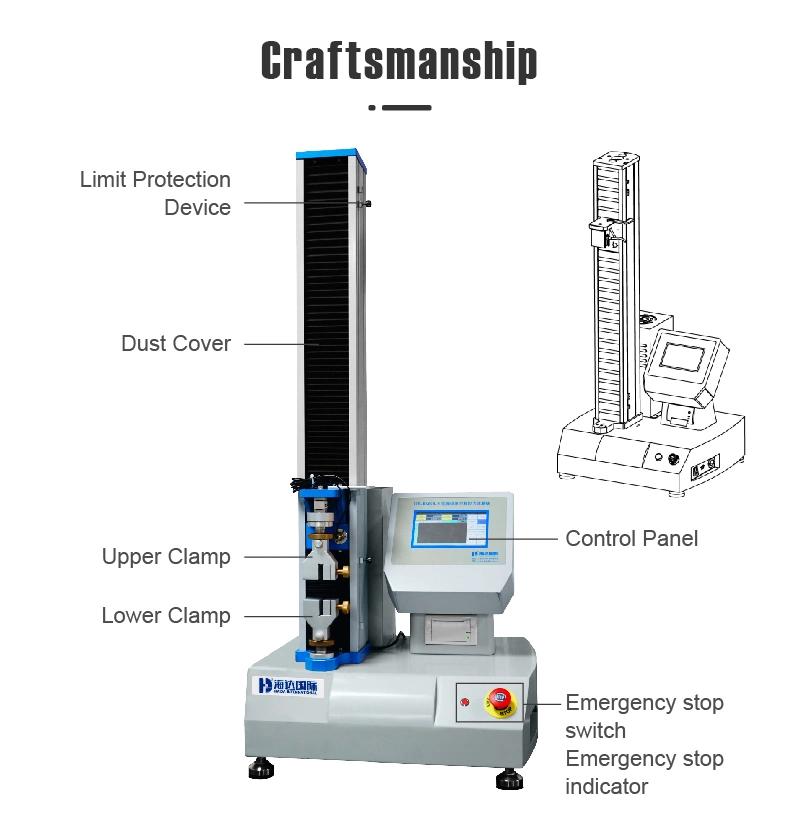

Over-load protection
Upper and lower limit switches
Load sensor with automatic retreat
Appliactions

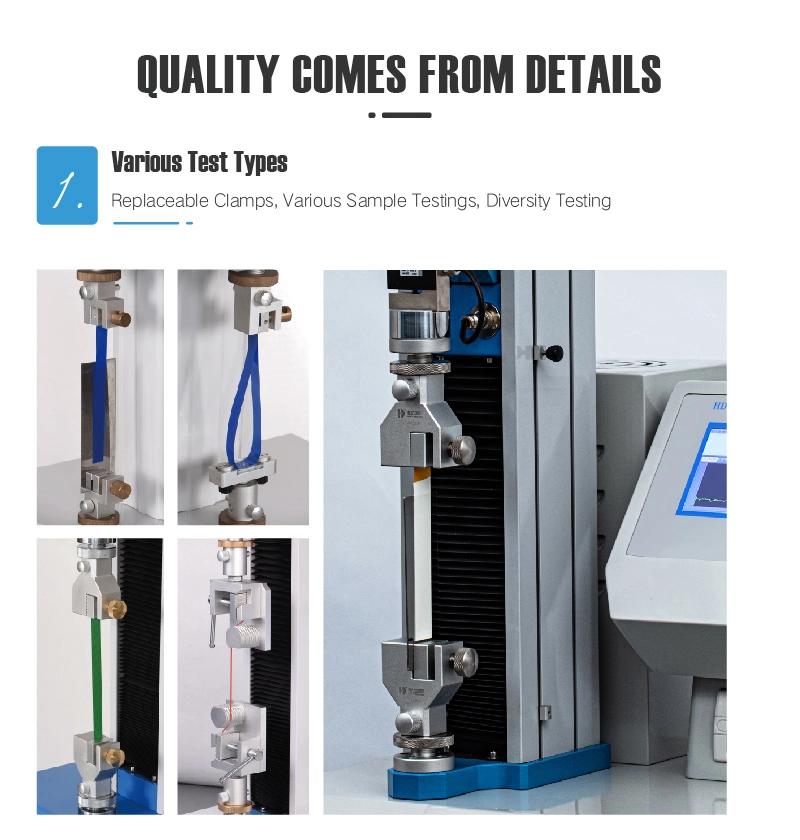

  1. Tested sample: plastic films, laminated materials, adhesive tapes, adhesive bandage (plaster), release paper, plastic films, leather, rubber & plastic, paper, fiber, etc.Different test with different grips: tensile, peel, tear, heat seal, adhesive, bend and open force.Deformation under defined load: Test deformation under defined load of tested sampleLoad under defined deformation: Test load under defined deformation of tested sampleSoftware can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.

Computer Control Universal Material Tensile Strength TesterComputer Control Universal Material Tensile Strength TesterComputer Control Universal Material Tensile Strength TesterComputer Control Universal Material Tensile Strength TesterComputer Control Universal Material Tensile Strength TesterComputer Control Universal Material Tensile Strength TesterComputer Control Universal Material Tensile Strength TesterComputer Control Universal Material Tensile Strength Tester

Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.

2.Excellent After sale Service:
12 months warranty. Besides, we can help you to repair your problem controller freely, Free replacement parts, even it's not from our factory's. What you need to do is to send us the controller.We can offer operation video and English operation muanual. We can provide video-con

3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.

4.Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
