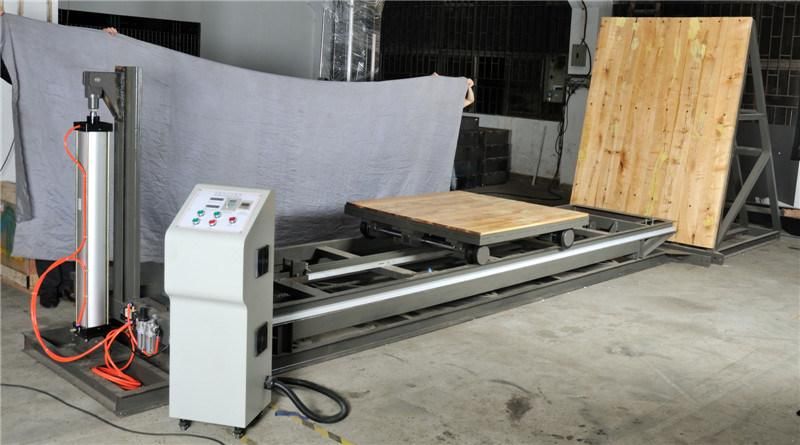

Corrugated Box Inclined Impact Testing Machine
Dongguan Haida Equipment Co., Ltd.- Type：Test and Measurement Instruments
- Maxcapacity：<1000KN
- Accuracy Grade：0.5
- Load Way：Electronic Load
- Loading Method：Dynamic Load
- Display：Digital
Base Info
- Model NO.：HD-A523
- Control：Computer Control
- Weight：1000-2000Kg
- Power Source：AC220V
- Load (Kg)：100, 200, 300, 500, 600
- Design Criteria：Ista
- Warranty：One Year
- Delivery Time：20 Days After Receive The Deposit
- Impact Board Dimension (mm)：1600* 2000,
- Maximum Slide Length (mm)：1600 (Can Be Designed Accord to Customer′s Require
- Impact Velocity Range (M/S)：1.305~2.608, 1.305~2.334
- Pulley Platform Dimension (mm)：1000*1000
- Supply Voltage：Three Phase 380V, 50,60Hz
- Work Environment：Temperature 0~40° C, Humidity ≤ 80%
- Transport Package：Strong Wooden Case
- Specification：ISTA-1E
- Trademark：Haida
- Origin：China
- HS Code：9024109000
- Production Capacity：150 Sets Per Month
Description

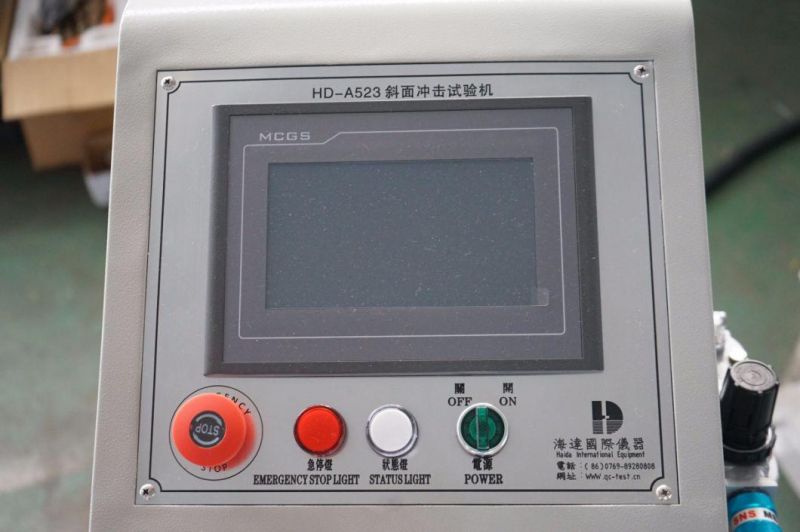

Explanation:
1. Power: The battery main switch
2. Stop: Stop test
3. Start: Press this button to start the test (it will be automatic stop when get the test times)
4. up & down: Press UP or DOWN to adjust the rolling carriage up and down, the max. angle of rolling carriage with base is 13°
5. Counter: Setting the test times
6. Speed display: To display the velocity during test (m/s), and will automatic reset for another test
7. Time display: To display time during test(s)
8. Speeder: set the different frequency to change the impact velocity.
After-service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
FAQ:
Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
18 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.
3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4.Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
