• Model NO.：HD-B609B-S
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC220V
• Design Criteria：ASTM D903 Cns-11888, JIS K6854, Pstc-7
• Sensor：Celtron Load Cell
• Power：One Phase, AC 220V
• Load Resolution：1,250, 000
• Load Cell：Celtron Sensor
• Operate and Display：Computer
• Control System：Panasonic Servo Motor
• Stroke：1000mm
• Test Speed：0.01 to 500 Mm,Min
• Display Device：LCD or PC
• Transport Package：Strong Wooden Case
• Specification：ASTM D903 GB,T16491 GB,T1040 GB,T8808 GB13022 GB,T
• Trademark：HAIDA
• Origin：China
• HS Code：9024109000
• Production Capacity：1000sets,Year

ItemDescriptionMax. Force100 kg (1KN)Load cellGermany brand load cell for high accuracyControl systemLCD / PC with windows 7 systemMotorPanasonic servo motor w/AC variable speed drive system, high-precision mechanical ball screw rodForce readingkgf, Ibf, N, KN, T etcStoke900mm including fixtureLoad cell Resolution1/250,000Load Precision≤0.5%Test speed0.1~500mm/min (adjustable)SoftwareTM 2101Curves displayLoad- elongation, Elongation-time, Time-elongation, Stress-strainData displayMax. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc…Safety featuresE-Stop
Over-load protection
Upper and lower limit switches
Load sensor with automatic retreat
Product Features

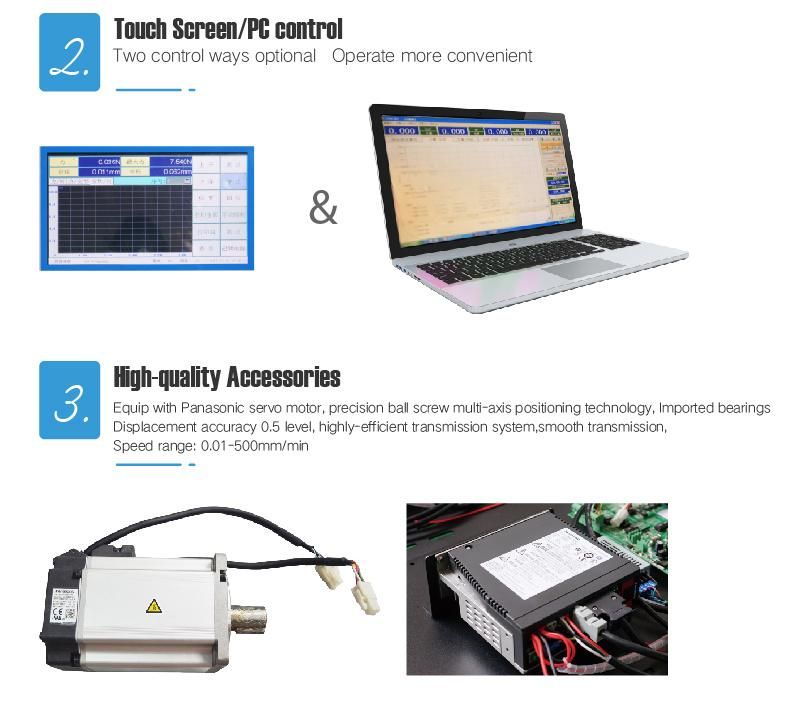

1. Motor system: Panasonic servo motor +Servo driver +High precise ball screw (Taiwan)

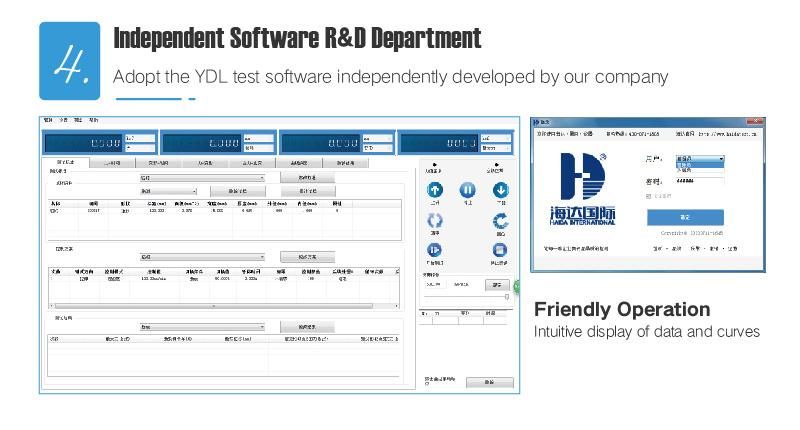

2. Control system: a, computer control with TM2101 software; b, Back to origin automatically after the test, c, store data automatically or by manual operation
3. Data transmission: RS232
4. Displacement resolution: 0.001mm
5. Graph scale automatic optimization can make graph to display with best measurement and can implement graphics dynamic switching in the test and has force-elongation, force- time, elongation -time, stress - strain.
6. It can save results automatically after test finished, and it is manual filing. It can display maximum force, yield strength, compressive strength, tensile strength, elongation, peel interval maximum, minimum and average, etc.
7. User can set parameters of product material such as length, width, thickness, radius, area and so on.
8. Many languages random switching: Simplified Chinese, Traditional Chinese, and English.

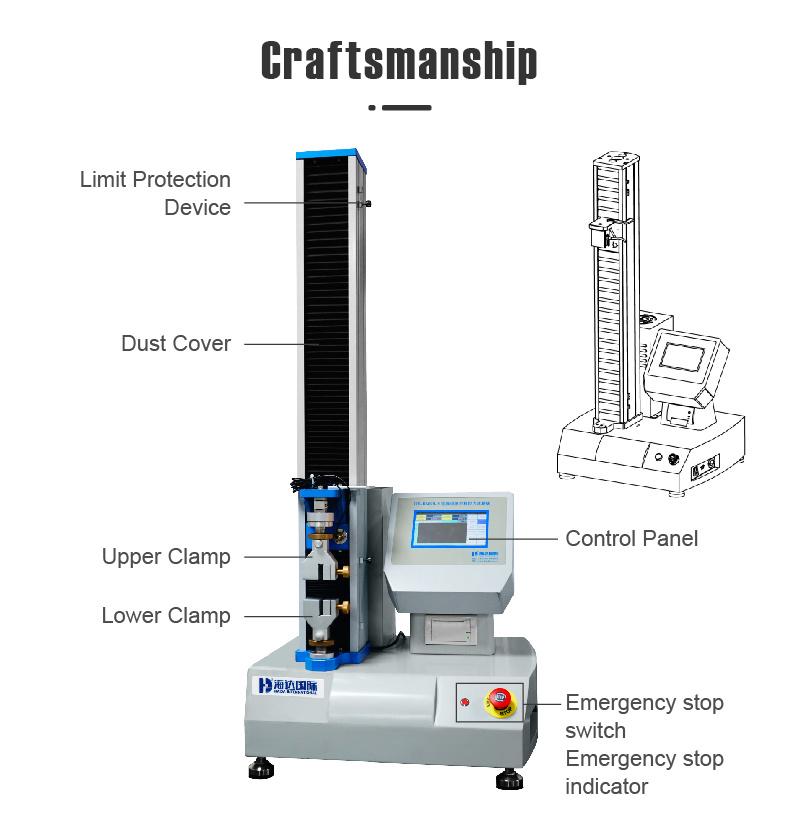

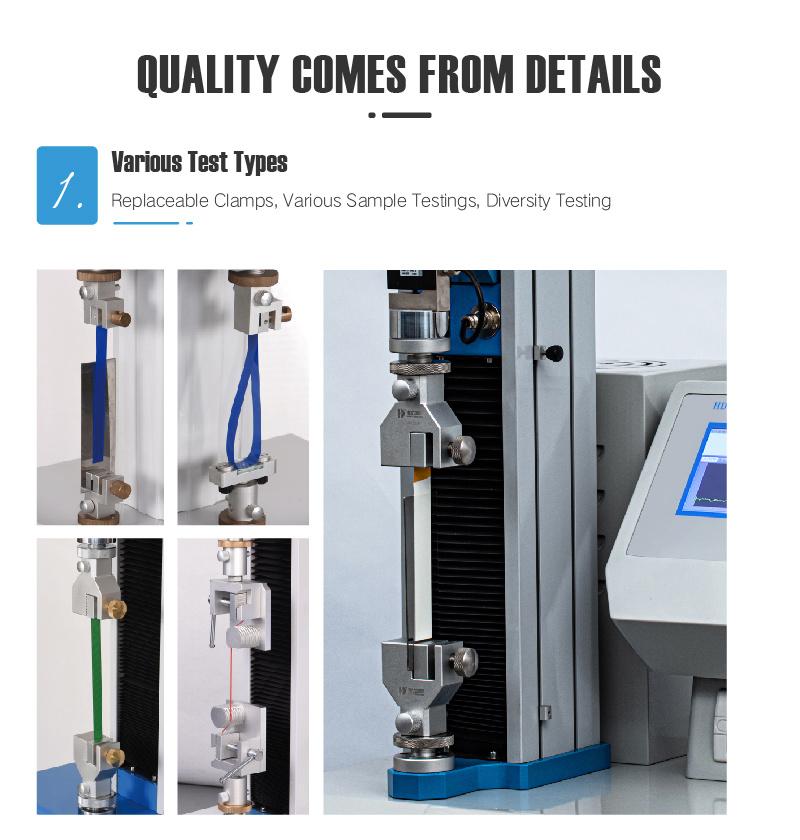

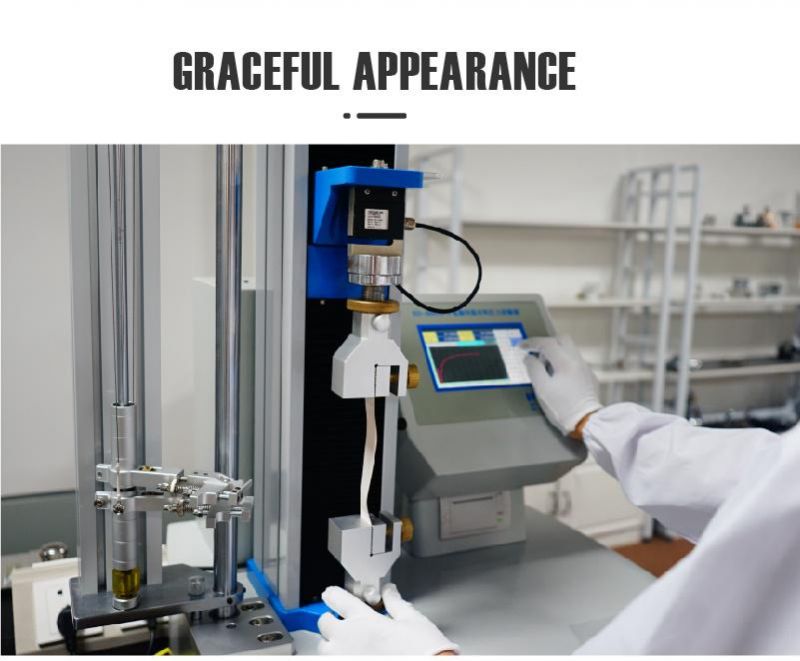

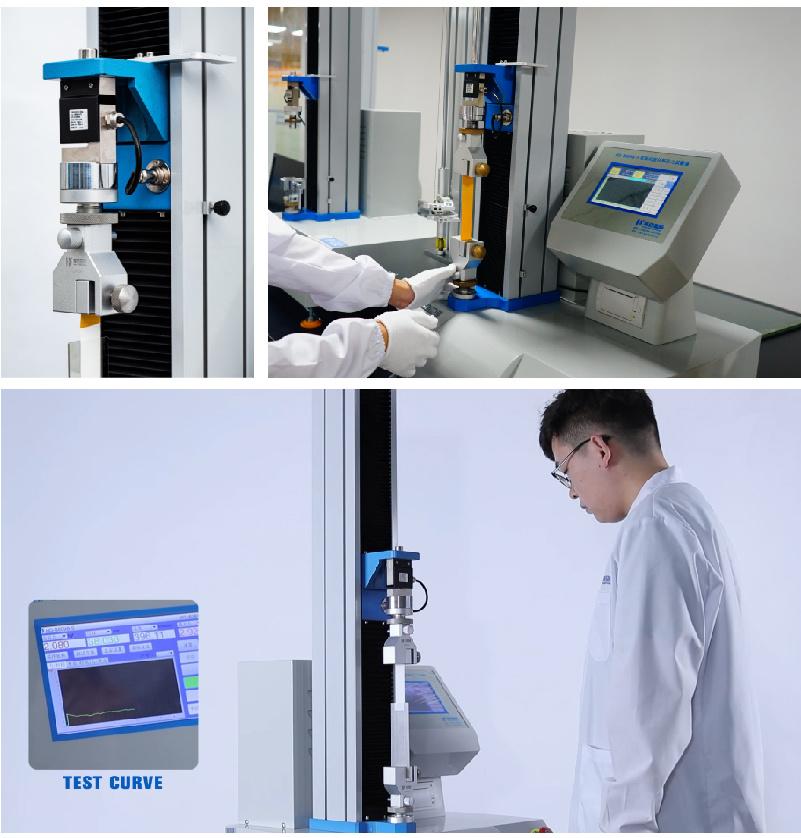

Details images:



The introduction of Haida

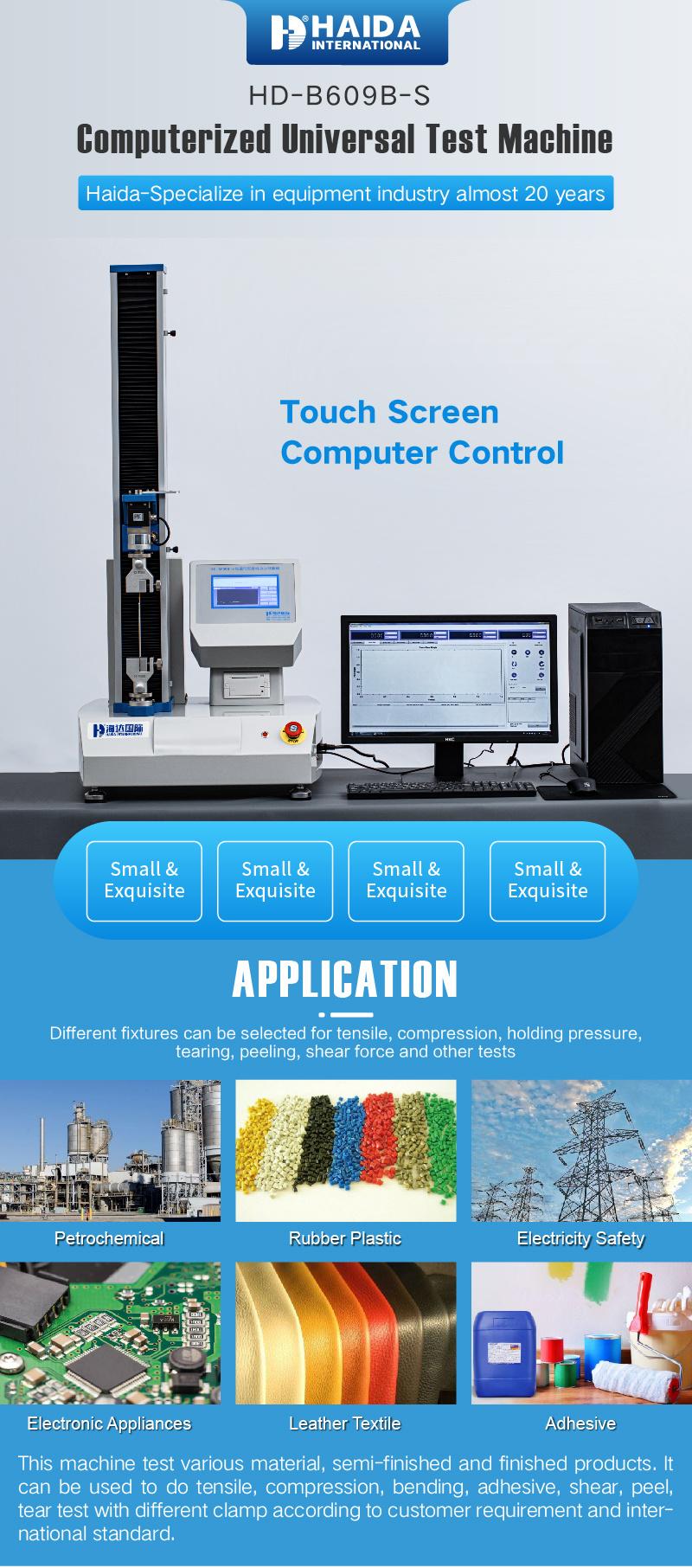

Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.


Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.

2.Excellent After sale Service:
18 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.

3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.

4.Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
