• Model NO.：HD-E703
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC220V
• Controller：Oyo LCD Touch Screen
• Compressor：Germany Bitzer
• Refrigerant：Du Pont R23
• Internal Dimension：40*36*35 Cm
• Damper Device：Forced Air Drive Damper
• Interior Material：SUS# 304 Stainless Steel Plate
• Exterior Material：Double Sided Galvanized Steel
• Refrigeration Cascade：Refrigeration System
• Cooling Method：Air Cooling
• Preheating Temperature：60.00~200.00
• Transport Package：Strong Case
• Specification：ISO
• Trademark：Haida
• Origin：Dongguan
• HS Code：9024
• Production Capacity：30 Sets Per Month

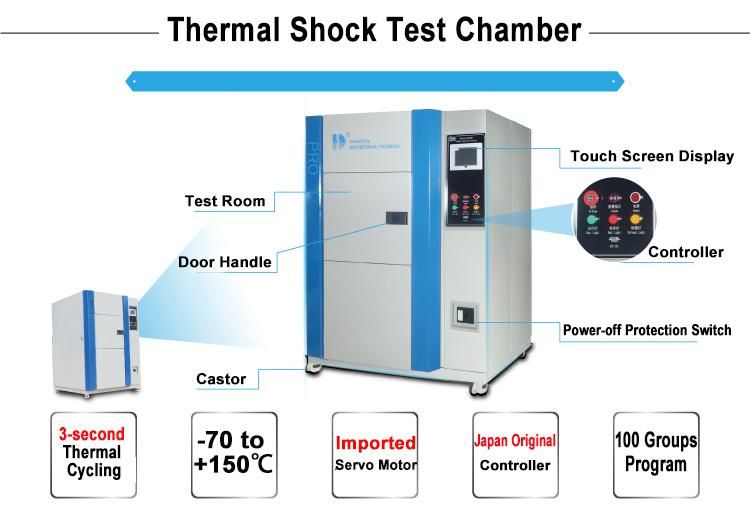

Internal Dimension 40*36*35 cmStructureThree chambers design(the hot chamber, the cold chamber and the test chamber)Damper deviceForced air drive damperInterior materialSUS# 304 Stainless steel plateExterior materialDouble sided galvanized steelRefrigeration Cascaderefrigeration systemCooling method Air CoolingAmbient temperature0° ~30°Preheating temperature60.00~200.00Precooling temperature10.00~70.00H. T. Shocking 60.00~150.00L. T. Shocking10.00~50.00Temperature range-40~150Temperature uniformity± 2.00Simulated load IC5.0kgHT IN-Zone 40.00~. 85/5 minLT IN-Zone85.00~40.00/5 minPreheating time30MINPrecooling time60MINSenorT× 4ControllerOYO-8226Setting range Temperature 100.00~200.00/TIME OHIM~999H/CYCLE 0 ~9999Resolution Temperature 0.1Output modePID+SSR(control method)Power(K. W) 3, AC380V 50Hz 25K. W
Features:

1. Perfect appearance and easy to operate.
2. Japan LCD English microcomputer temperature controller, with high memory capacity, can save 100 programs, max 9999 cycles, each cycle max time 999hrs.
3. Three chamber structures, high temperature chamber, low temperature chamber and test chamber, control automatically, stay and switch time adjustable.
4. Perfect protection alarm functions: short-circuits, Leakage, over temperature of work chamber; compressor over pressure, over load, short water…
5. Control interface will display alarm reason and provide check methods, machine has emergency stop button.
6. Cold and hot shock temperature recover within 5 minutes, which complies with MTL, IEC, JIS, GJB and other international standards.
7. With RS-232C communication port for connecting PC to control, record and save test report.

High temperature chamber:
Heater: NI-CR alloy electric heater
Draught fan: Share centrifugal fan when high temperature and do environmental temperature, preheating with axial flow fan.

Low temperature chamber:
Cooler: Fin cooler, regenerator
Draught fan: centrifugal fan

Drive device:
Pneumatic cylinder: Drive the air door of high, environmental, low temperature
Air compressor: Provide the compressed air for driving pneumatic door (supplied by buyer)

Controller:
Operate interface: 6" color LCD touch screen
Program memory capacity: 100 groups (modify by operator)
Setting range: Time: 1 minute ~ 99 hour 59 minute, cycles: 1~ 999 cycles
Resolution: temperature: 0.01 ºC; time: 1 minute
Input: T thermocouple
Control method: P.I.D control



Introduction:

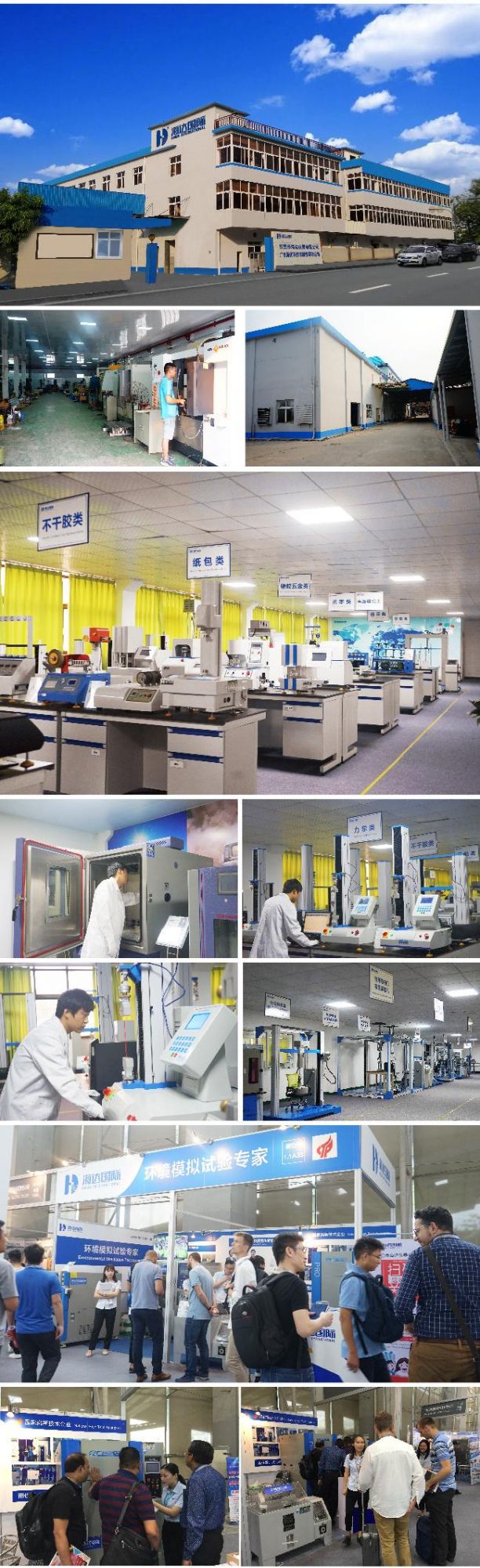

HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 24 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.



Our Certificate


Packaging & Shipping:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.



FAQ:

Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 12 years focusing on test equipment field,6 years exporting experience.

Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.

Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 12 months by HAIDA,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.

Q:What about the product' services and quality?
A:Each equiopment must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer's company when you need. products are widely recognized and trusted by users.
A :Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.

Q: Can your products be customized?
A: Yes, our product can be customized according to your parameters.
