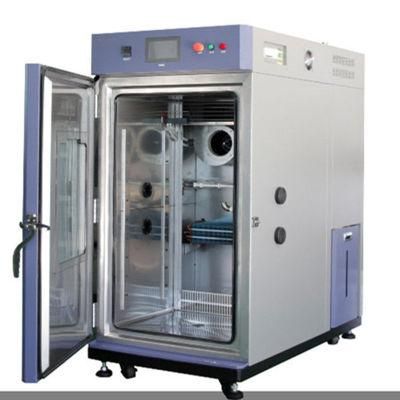

Bench Top Climatic Test Chamber with in-Hole Operation for Calibration

Guangdong Komeg Industrial Co., Ltd.
  • Power Supply：380V
  • Certification：CE, TUV, ISO
  • Warranty：1 Year
  • Height Range(Mm)：300-2000mm
  • Maximum Sample Weight(Kg)：100
  • Maximum Sample Size(Mm)：1000*800*1000mm

Base Info

  • Model NO.：KPD-320
  • Base Area Sizemm)：1700*1200*20
  • Motor Power(kVA)：0.85
  • Exterior Size of Tester(Mm)：1700*1200*2830mm
  • Net Weight (Kg)：700
  • Applicable Standards：ISO02248-1972(E)
  • Manufacturer：Yes
  • OEM/ODM：Yes
  • Transport Package：Strong Plywood Case, Meet International Standards
  • Specification：Standard and Customized
  • Trademark：KOMEG
  • Origin：Dongguan, China
  • HS Code：90321000
  • Production Capacity：1000 Sets Per Year

Description

Capacity(L)

64L



Temperature range

L :-40ºC ~ +150ºC

R : :-20ºC ~ +150ºC

S:-70ºC ~ +150ºC

Temp Deviation

<= ± 2.0ºC

Size

Workspace volume: W 400 × H 400 × D 400 mm



Exterior size: W 600 × H 1550 × D 1220 mm (about)

Temp Fluctuation

±0.5ºC

Heat up rate

Heating up rate: -40ºC↑ +100ºC about 45min (no-load, ambient temperature +25ºC)



Cooling rate: 20 ºCto -40ºCabout 60min (no-load, ambient temperature +25ºC)

Humidity range

20%R.H~98%R.H



Door



Single door, left open. Heating wire was installed at the door frames to prevent



condensation at low temperatures.

Humidity uniformity

3.0%RH (no-load)

Load

Product calorific value 1000w



Humidifier

Water basin heating and humidification method;



Stainless steel sheathed heater;



Heater control: no-contact control (SSR);



Water level control device, heater anti-dry device
