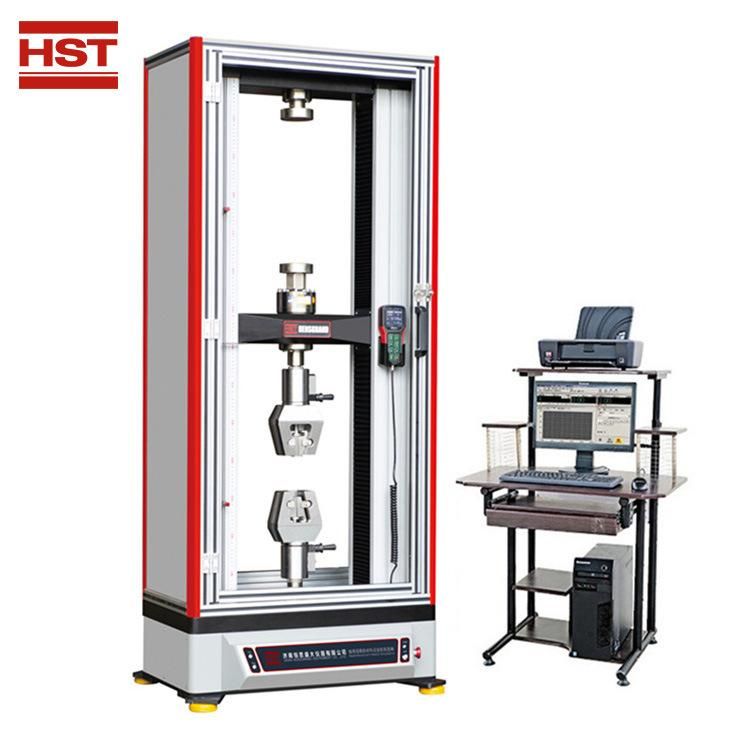

Metal Matrix Composites Electronic Mechanical Universal Testing Machine (100N-600KN)

Jinan Kason Testing Equipment Co., Ltd.
  • After-sales Service：24 Hours Technical Supply
  • Warranty：1 Year
  • Max Diameter of Workpiece：<500mm
  • Mass Scope of Workpiece：<900kg
  • Type：Universal Testing Machine
  • Maxcapacity：<1000KN

Base Info

  • Model NO.：WDW-10
  • Accuracy Grade：1
  • Load Way：Electronic Load
  • Loading Method：Static Load
  • Display：Digital
  • Control：Computer Control
  • Weight：500-1000Kg
  • Power Source：AC220V
  • Delivery Time：10 Days After Get Payment
  • Certification：ISO Ce SGS
  • Standard：ASTM Jin
  • Transport Package：Standard Export Packing
  • Specification：700*450*1775mm
  • Trademark：HST or OEM
  • Origin：Jinan, Shandong, China
  • HS Code：9024101000
  • Production Capacity：200 Sets Per Month

Description

Basic Info.

Model NO. WDW-10 Accuracy Grade 1 Load Way Electronic Load Loading Method Static Load Display Digital Control Computer Control Weight 500-1000Kg Power Source AC220V Delivery Time 10 Days After Get Payment Certification ISO Ce SGS Standard ASTM Jin Transport Package Standard Export Packing Specification 700*450*1775mm Trademark HST or OEM Origin Jinan, Shandong, China HS Code 9024101000 Production Capacity 200 Sets Per Month

Product Description

Metal Matrix Composites Electronic Mechanical Universal Testing Machine (100N-600KN)
Metal Matrix Composites Electronic Mechanical Universal Testing Machine (100N-600KN)

1.Application:
It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing.
It is widely used in the corresponding industries, research and development, test institutes and training centers etc.

2.Standard:
ASTM, ISO, DIN, GB and other international standards.

3.Main Technical Parameters:
ModelWDW-10
Max. Load10KN
StructureFour-column Floor Model
(Upper Is Tensile And Lower Is Compression)
Control MethodComputer Control
Load Accuracy1 Class
Load Range2%~100% FS
Resolution1/300000
Measuring Range Of
Deformation		2%~100%
Accuracy Indication
Of Deformation		≤±1%
Disp. Indicating
Relative Error		≤±1%
Displacement
Resolution		0.04um
Adjusting Range Of
Control Rate Of Load		0.005~5%FS/S
Control Precision Of
Control Rate Of Load		When rate < 0.05% FS/s, the precision is within ± 2% of setting value;
When rate ≥ 0.005%FS/s, the precision is within ± 1% of setting value.
Adjustment Scope Of
Deformation Rate		0.005~5%FN/S
Scope Of Consistent
Load Deformation And
Displacement Control		0.5%~100%FS
Accuracy Of Consistent
Load Deformation And
Displacement Control		Preset value ≥ 10%FN, within the ±0.1% of preset value;
Preset value < 10%FN, within the ±1% of preset value.
Tensile Space700mm (Can be customized)
Compression Space700mm (Can be customized)
Effective Spacing400mm (Can be customized)

Fixtures for choice according to different material:
Metal Matrix Composites Electronic Mechanical Universal Testing Machine (100N-600KN)

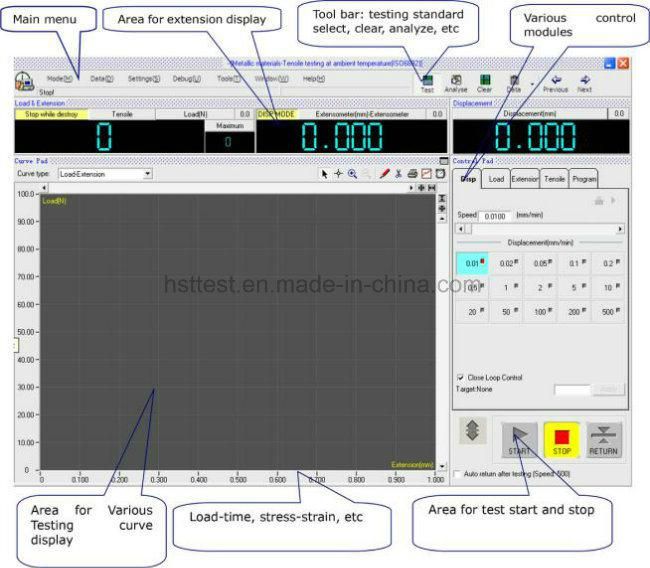

Machine software show:
Metal Matrix Composites Electronic Mechanical Universal Testing Machine (100N-600KN)
