Test Instrument

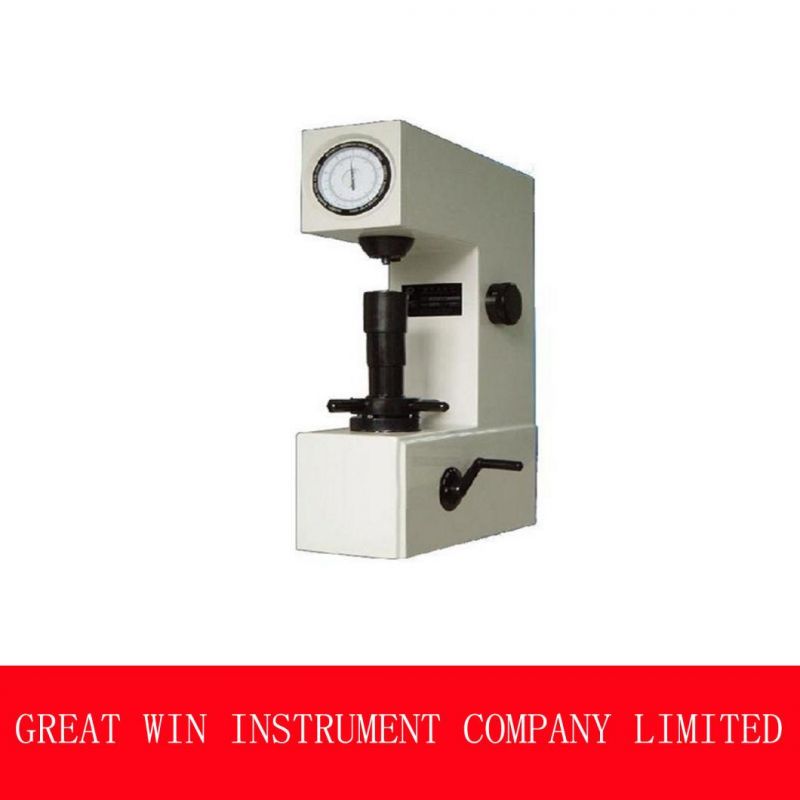

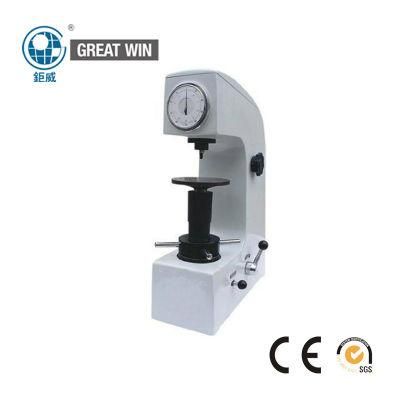

Electric Rockwell Hardness Testing Machine (GW-079A)

GREAT WIN INSTRUMENT CO., LTD.
  • Max Diameter of Workpiece:700mm
  • Mass Scope of Workpiece:<900kg
  • Type:Material Testing Machine
  • Maxcapacity:Total Test Force(N): 588, 980n, 1471n
  • Accuracy Grade:1
  • Load Way:Electronic Load

Base Info

  • Model NO.:GW-079A
  • Loading Method:Dynamic Load
  • Display:Needle
  • Control:Manual Control
  • Weight:75kg
  • Power Source:AC220V
  • Packaging:Wooden Case
  • Export Markets:Global
  • Model No:Gw-079A
  • Measuring Range:Hra Hrb HRC
  • Standard:ISO, ASTM, GB,T, Bsen
  • Total Test Time(S):1-30
  • Pressure From Head Center to Fuselage:140mm
  • Specification1:Ce,RoHS,ISO,UL,SGS
  • Total Test Force(N):588, 980n, 1471n
  • Allow The Maximum Height of Specimen:170mm
  • Transport Package:Standard Export Safety Packing
  • Specification:463X241X660MM
  • Trademark:Great Win
  • Origin:China
  • HS Code:90241020
  • Production Capacity:500 Sets,Year

Description

Basic Info.

Model NO. GW-079A Loading Method Dynamic Load Display Needle Control Manual Control Weight 75kg Power Source AC220V Packaging Wooden Case Export Markets Global Model No Gw-079A Measuring Range Hra Hrb HRC Standard ISO, ASTM, GB/T, Bsen Total Test Time(S) 1-30 Pressure From Head Center to Fuselage 140mm Specification1 Ce/RoHS/ISO/UL/SGS Total Test Force(N) 588, 980n, 1471n Allow The Maximum Height of Specimen 170mm Transport Package Standard Export Safety Packing Specification 463X241X660MM Trademark Great Win Origin China HS Code 90241020 Production Capacity 500 Sets/Year

Product Description


Electric Rockwell Hardness (GW-079A)Equipment discription:

R (D)-150D1-based Rockwell hardness tester with stable performance, the structure solid, safe, easy to operate. Force with automatic unloading test method and duration time stable operation to eliminate the human error, showing the value of high accuracy. The hardness suitable for ferrous metals, nonferrous metals Rockwell hardness. Widely used in factory and measurement sector.

Technical parameter:
Model GW-079A HR-150D
First test force(N) 98N
Total test force(N) 588, 980N, 1471N
Total teste time(S) 1-30
Allow the maximum height of specimen 170mm
Pressure from the head center to the fuselage 140mm
Dimension(mm) 463× 241× 660
Weight(kg) 75
Hardness range HRA: 20~88 HRB: 20~100 HRC: 20~70

Technical Specifications:
ModelGW-079A HR-150D
First test force(N)98N
Total test force(N)588,980N,1471N
Total teste time(S)1-30
Allow the maximum height of specimen170mm
Pressure from the head center to the fuselage140mm
Dimension(mm)463×241×660
Weight(kg)75
Hardness rangeHRA:20~88   HRB:20~100    HRC:20~70

Electric Rockwell Hardness Testing Machine (GW-079A)Electric Rockwell Hardness Testing Machine (GW-079A)Electric Rockwell Hardness Testing Machine (GW-079A)Electric Rockwell Hardness Testing Machine (GW-079A)Electric Rockwell Hardness Testing Machine (GW-079A)Electric Rockwell Hardness Testing Machine (GW-079A)Electric Rockwell Hardness Testing Machine (GW-079A)Electric Rockwell Hardness Testing Machine (GW-079A)Electric Rockwell Hardness Testing Machine (GW-079A)
What about the product quality?
For our products, each instrument must be carried out 100% quality calibration and test when delivery goods. With CE certificate, we are very confident in our products, and we will pack them with safety wooden case to protect the machine when transport oversea.

What about usage of the machine?
We will also give your professional guidance(Product operating manual and video), each products comes with a USB flash drive which have all the details.

What about warranty?
Guarantee one years( if the parts damage within one year, we can replace the part for free)
If customer need any technical support, we can help them solve their problem through email, video meeting. We also can provide door to door service, but customer need to bear the travel fees.

What about standards support?
We are strictly following different international standards such as EN, ISO, ASTM, AATC, JIS, GB ect, and had been recognized by SATRA, CSA international standard agency.
