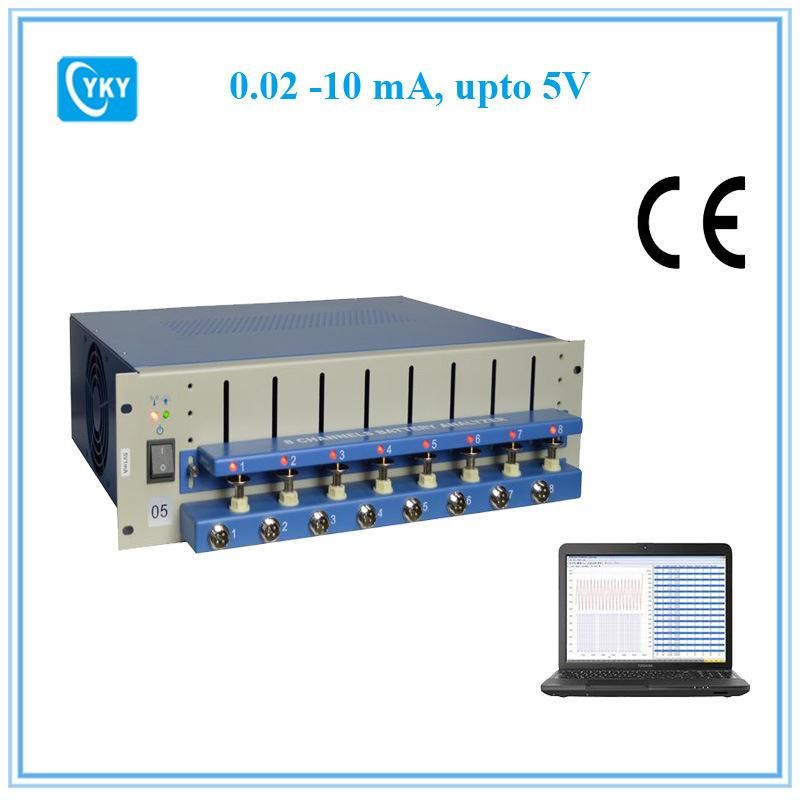

8 Channel Battery Analyzer (0.25 -300 Ma, Upto 5V W/ Temperature Measurement and Laptop & Software

Zhengzhou CY Scientific Instrument Co., Ltd.
  • Type：8 Channel Battery Analyzer
  • Test Region：Current
  • Application：Lithium-ion Battery
  • Customized：Non-Customized
  • Item Name：8 Channel Battery Analyzer
  • Transport Package：Wooden Case

Base Info

  • Model NO.：BST8-300-CST
  • Specification：8 Channel Battery Analyzer
  • Trademark：CYKY
  • Origin：China
  • Production Capacity：500 Sets Per Month

Description

Electricity Requirement110VAC or 208~240VAC 50/60Hz (Please select the correct operating voltage in the option bar)Power Consumption

 300W max.Current

  • Range: 0.25 mA - 300mA programmable
  • Accuracy: ±(0.05% RD + 0.05% FS)
  • Resolution: 0.1mA
Voltage
  • Range: 0.5 - 5V programmable
  • Accuracy: ±(0.05% RD + 0.05% FS)
  • Resolution: 1mV
  • Minimum Discharging Voltage: 1.5V
Data SamplingTime interval: 1 - 900sMax. Measurement cycles 9999 cyclesMax. Program steps9999 stepsProduct Dimensions668mm W x 400mm D x 90mm HChannels & Test Modes

Recipe Maker

  • Eight independent programmable channels. Each channel can work under different modes and functions independently
  • Working modes Include:
    • Charge: constant current charge (CC), constant voltage charge (CV), constant current constant voltage charge(CCCV)
    • Discharge: constant current discharge (CD), constant power discharge (CP), constant resistance discharge (CR)
    • Rest & cycles
Programs & Software

Real-Time Mornitoring

  • The software is included to set various working modes for evaluating cell capacity and lifecycle for all types of rechargeable batteries
  • Limited threshold conditions include voltage, current, time, capacity, negative voltage slope, etc.
  • With real-time monitoring windows and integrated graph/data windows, the testing process can be observed more directly and efficiently.
  • During the test, the software will provide instructions and warnings for assistance.
  • MS Excel 2013 30 days free trial is pre-installed for the Excel data file output.
Test Reports and Curves for Analysis


  • Various graphs and curves can be created by software based on user definition. (Voltage-time curve, current-time curve, capacity-voltage curve, loops times-charge/discharge capacity curve, loops times-charge/ discharge efficiency curve, etc)
  • Data reports are created by software in excel format. A copy of MS Excel must be installed in order to export data. The user can easily compare the performance of the batteries tested in channels both visually and statistically.
Protection and Auto-recover If the power failure occurs during testing, the system will shut down all the operating channels. Once power is recovered, the system will automatically resume those stopped channels and ensure that the test is normally conducted, so that no cases will lose any data.DCR Testability

 The DCR Testing feature enables the Hybrid PulsePower Characterization (HPPC) of the battery. Such function also provides the max/min voltage and current protection.
 Temperature Measurement & Battery clips

  • Each channel has an N type thermocouple to monitor the temperature of the batteries during the charging/discharging cycles. Please see Pic.1 in below for details.
  • 8 alligator clips with cable for universal connecting
  • 8 banana type jacks with cable for connection to  8 channel Coin Cell Testing Board (note: the board is sold separately

Laptop Computer
  • Brand new laptop with MS Window, MS Excel 2013 30 days free trial is included and latest version testing software are installed and calibrated for immediate use
  • Up to 20 sets of analyzers can be simultaneously controlled by one PC
  • Notice: We strongly suggest you keep an instant back of the collected data using an external hard drive.
Compliance
  • CE Certified
  •
WarrantyTwo years limited warranty with lifetime support for the battery analyzer. (Note: our company does not carry warranty for the laptop. In case service is needed for the laptops, please contact laptop manufacturer directly for warranty/non-warranty service.)
Application Notes
  • Multiple battery analyzers with one laptop configuration and purchase possible. $300 will be deducted from the sales price if one analyzer is purchased without the basic laptop.
  • Up to 20 battery analyzers can be controlled via one computer & software.

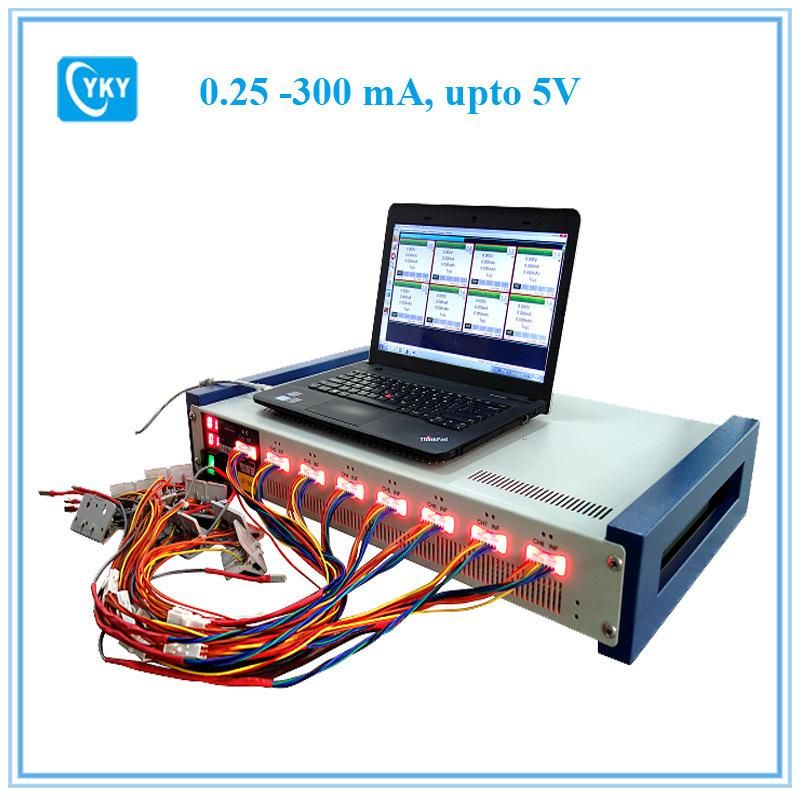

Net Weight30 Kg (65 lbs)Shipping Weight37 Kg (80 lbs) / Analyzer only: 70lbsShipping DimensionsAnalyzer: 33"(L) x 21"(W) x 9"(H) reference picture of the battery analyzer:
