• Model NO.：GD-0165
• Temperature Sensor for Air Bath：PT100
• Temperature Controlling Accuracy：1c
• Transport Package：Plywood Case
• Trademark：Gold
• Origin：China
• HS Code：9031809090
• Production Capacity：100 PCS,Month

Basic Info.

Model NO. GD-0165 Temperature Sensor for Air Bath PT100 Temperature Controlling Accuracy 1c Transport Package Plywood Case Trademark Gold Origin China HS Code 9031809090 Production Capacity 100 PCS/Month

Product Description

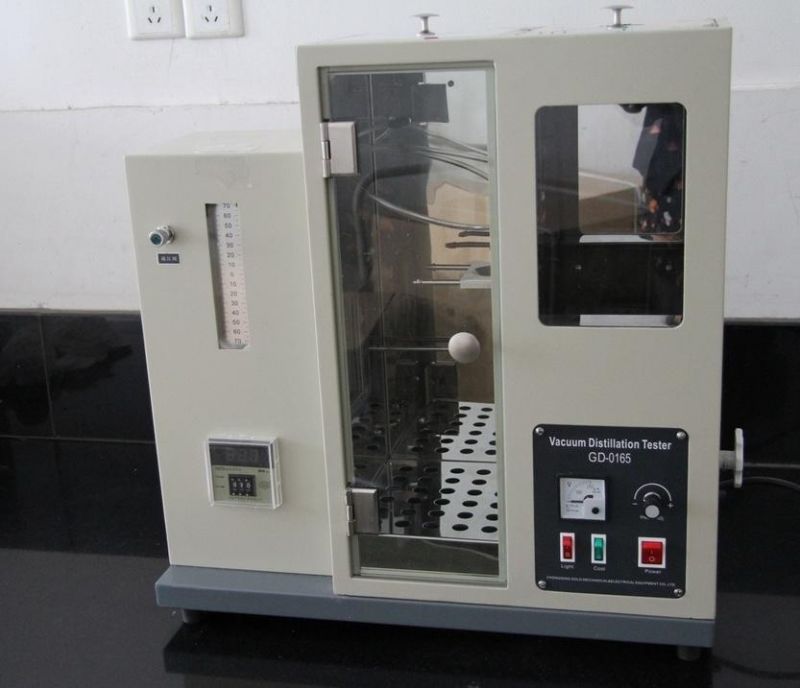

GD-0165 Reduced Pressure Vacuum Distillation Tester
GD-0165 Vacuum Distillation Tester is designed and made as per the Industry Standard of People's Republic of China SH/T 0165-92 "Test Methods for Distillation Characteristics of High Boiling Point Petroleum Products at Reduced Pressure". It is suitable to determine the distillation characteristics of paraffin oils, lubricating oils, and other high boiling point petroleum products.
 I. Main technical characteristics1. The instrument is a desktop type. It s composed of distillation parts and vacuum parts. It is in accord with the requirements of SH/T0165.2. The heating power of the distillation heating furnace can be continuously adjusted. It also has a cooling device for the heating furnace, so the heating furnace can be cooled down after a test. It is convenient to make next sample determination.3. The performance of vacuum pump is excellent. The maximum residue pressure is 2mmHg.
 II. Main technical specification and parameters1. Power supply: AC 220V, 50Hz;2. Heating power:(1) Heater for distillation flask: 1000 W;(2) Heater for receiving flask: 350 W;3. Heating power for distillation flask heating furnace: 0~1000 W; Can be continuously adjusted;4. Temperature controlling point for air bath of the receiving flask: room temperature~100 °C; It can be continuously adjusted;5. Temperature sensor for air bath: Pt100;6. Temperature controlling mode for air bath: it can be automatically controlled by a digital temperature controller;7. Temperature controlling accuracy: ±1°C;8. Buffer vessel cubage: 1000 ml;10. Illumination light in the air bath of receiving flask: Energy-saving lamp;11. Working condition:(1) Ambient temperature: 5~35°C;(2) Relative humidity: < 85%

Model	GD-255	GD-6536	GD-6536A	GD-6536B	GD-6536C	GD-0165
Range	ambient~360C	ambient~400C	ambient~400C	0~60C	0~60C	ambient~100C
Precision			±0.5C	±0.5C	±0.5C	±1C
Refrigeration	N	N	N	Y	Y	N
Single/Double		S	D	D	S
