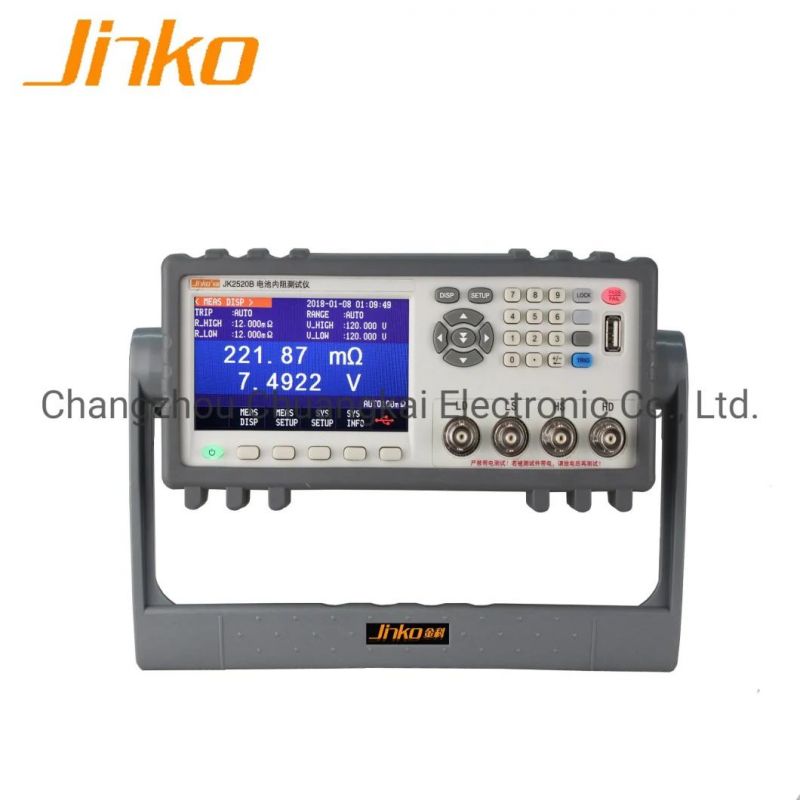

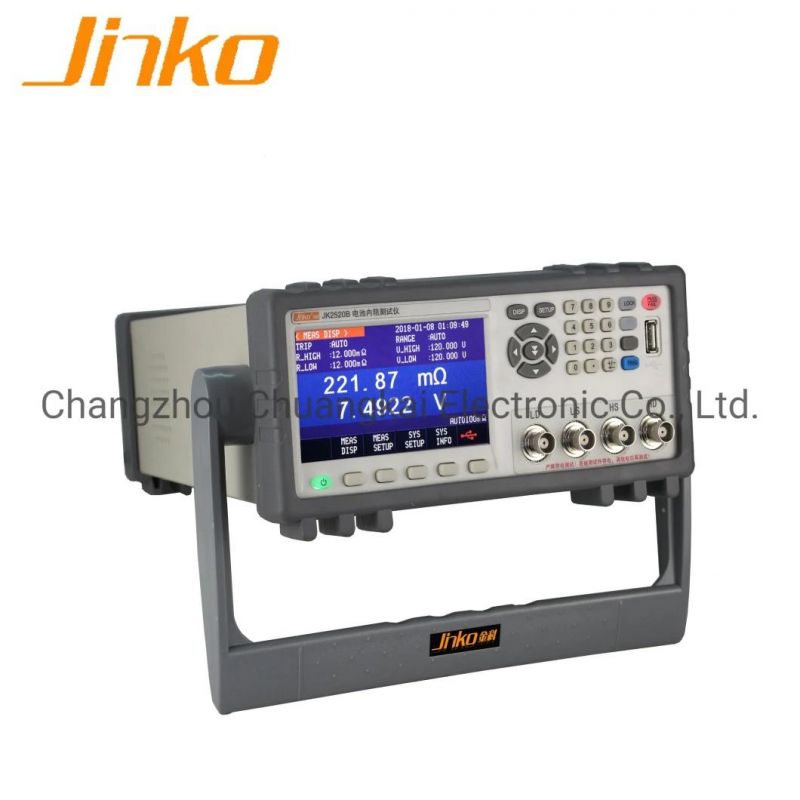

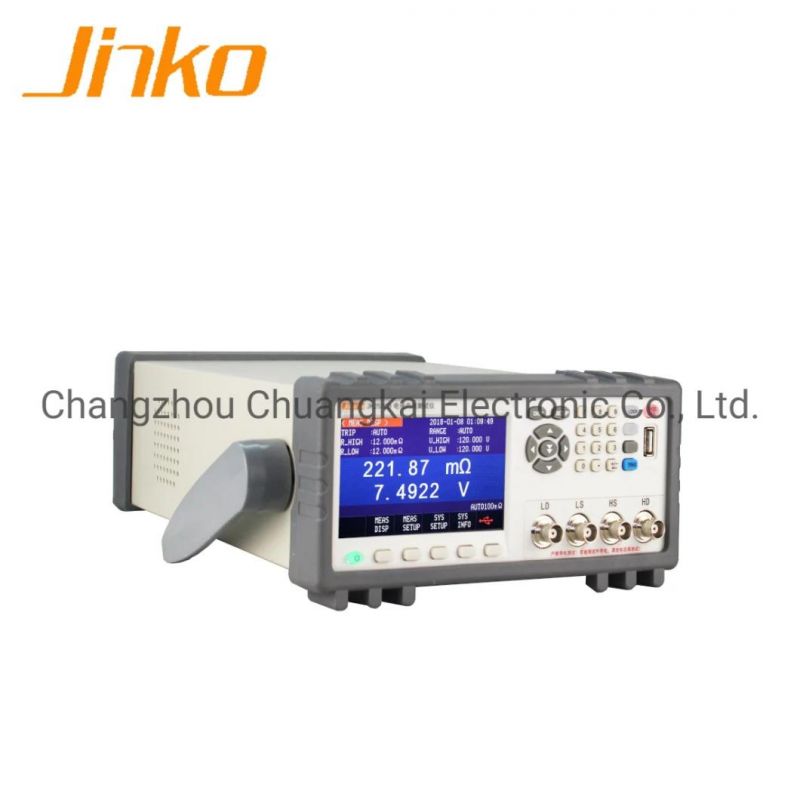

Jk2520b Battery Internal Resistance Meter Battery Tester
Changzhou Chuangkai Electronic Co., Ltd.- Warranty：1 Year
- Type：Storage Battery Tester
Base Info
- Model NO.：JK2520B
- Test Region：Internal Resistance
- Application：Lead-acid Battery
- Customized：Customized
- Parameters：AC Resistance, DC Voltage
- Basic Accuracy：Resistance: 0.5%, Voltage: 0.3%
- Speed：10 Times , Sec
- Offer：Li Ion Battery Project
- Name：Li-ion Battery Test Machine
- Interface：RS232, Handler Interface
- Usage：Battery Measurement
- Trigger Mode：Internal, Manual, External, Remote
- Adjustment：Short Circuit Zero Clearance in Full Range
- Dimension & Weight：235(W)*105(H) *360(D), About 3.6kg
- Power Supply：198VAC-240VAC, Frequency: 50Hz, Power: Max 15va
- Product Name：Jk2520b Battery Internal Resistance Meter Battery

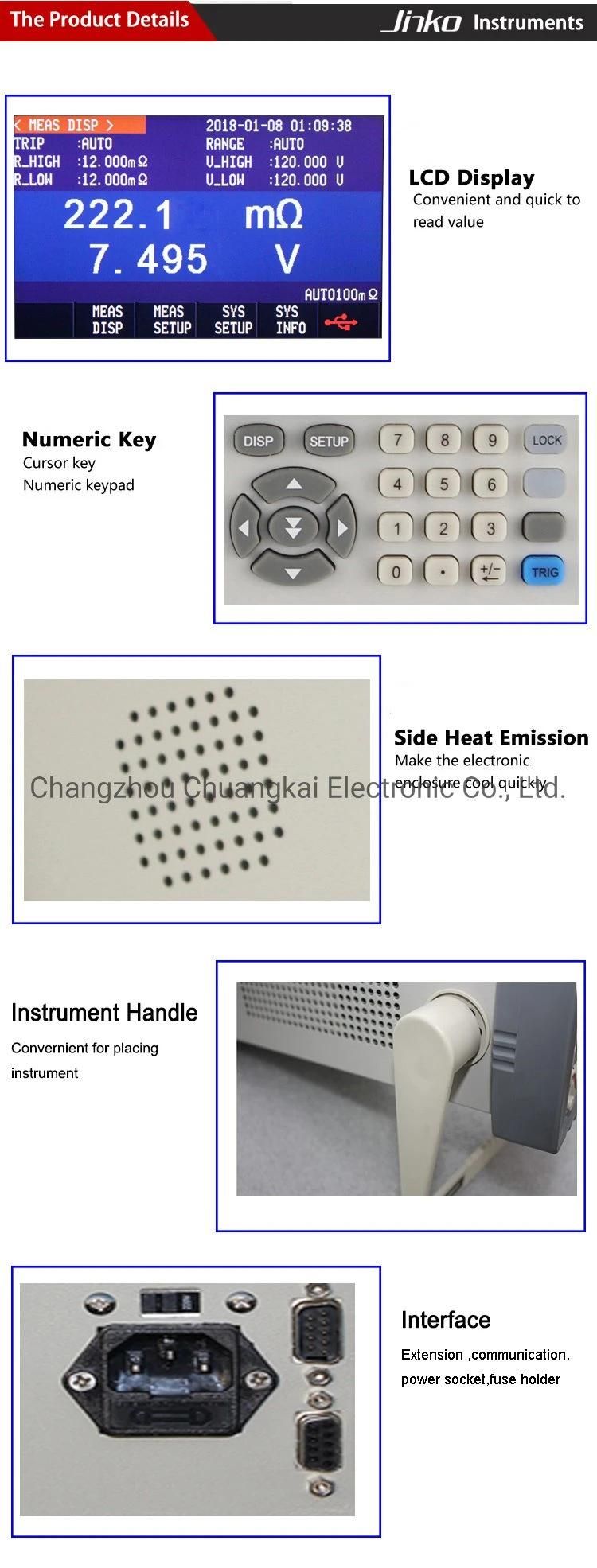

- Display：4.3 Inch TFT LCD Display
- Transport Package：Carton
- Specification：45x33x24cm
- Trademark：CKT
- Origin：China
- HS Code：9030332000
- Production Capacity：3000 Sets Per Month
- Package size per unit product：45.00cm * 33.00cm * 24.00cm
- Gross weight per unit product：7.000kg
- Lead Time：10 days (1 - 1 set)
Description

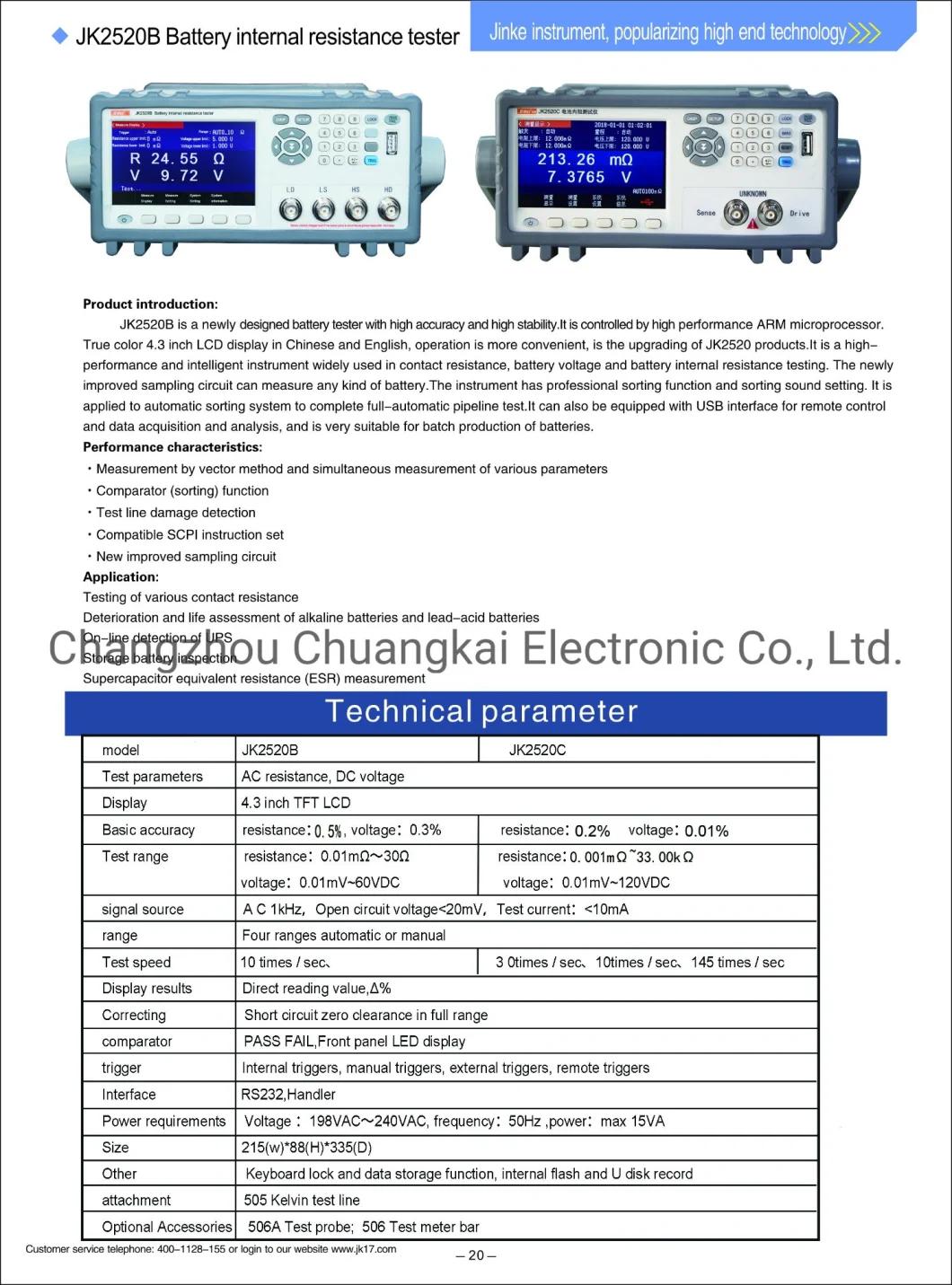

AC resistance, DC voltage Dispaly 4.3 inch TFT LCD display Basic accuracy resistance:0.5% voltage :0.3% resistance:0.2% voltage :0.01% measuring range 0.01mΩ~30Ω 0.01mV~20VDC 0.01mΩ~30Ω 0.01mV~60VDC 0.001mΩ~33.00KΩ 0.01mV~120VDC signal source AC 1kHz, open circuit voltage <20mV, test current: <10mA Range Four range Automatic or manual Speed 10 times / sec 30 times / sec 145 tiems/sec 10 times / sec Display results Direct reading value,Δ% Correcting Short circuit zero clearance in full range comparator PASS FAIL Front panel LED display trigger Internal trigger, manual trigger, external trigger, remote trigger Interface None RS232, Handler Power requirement Voltage :198VAC~240VAC, frequency:50Hz, power:max 15VA Size and weight Upper frame size(mm):215(w)*88(H)*335(D) Size (mm):235(w)*105(H) *360(D) Weight :about 3.6kg Others Keyboard lock and data storage function, internal flash memory and U disk recording Accessories 505 Kelvin test line Optional Accessories 506A test probe, 506 test meter bar Company Profile https://ckt2017.en.made-in-china.com/contact-info.html
Packaging & Shipping
FAQ:
Q. How is your company's product after-sales service system?
A. The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales teams that can respond to you within 24 hours to resolve technical issues. We provide one-to-one after-sales service.
Q: Can you customize it?
A: Yes, we accept customization according to customer's specific requirements.
Q. How long is your lead time? If I want to customize instruments, how long will it take?
A. When order quantity is 1-10 units, we have ready stock goods, we can ship out within 3-5 working days after receipt of deposit; products required new production of common materials, usually the lead time is about 10-15 days; products requiring new production of special and rare materials, usually the lead time is about 20-30 days.
Q. What payment method do you accept?
A. Our company accept payment method of T/T (bank transfer), Western Union, PayPal and so on.
Q. What package do you use for your products? What shipping method do you use?
A.1. Our company use standard exporting carton for packing. 2. We ship via express courier (door to door service), by air, and by sea according to customers' requirements.
For more questions, please feel free to send inquiries to us.
