• Model NO.：PL-02
• HS Code：90248000
• Production Capacity：200 PCS,Month

Basic Info.

Model NO. PL-02 HS Code 90248000 Production Capacity 200 PCS/Month

Product Description

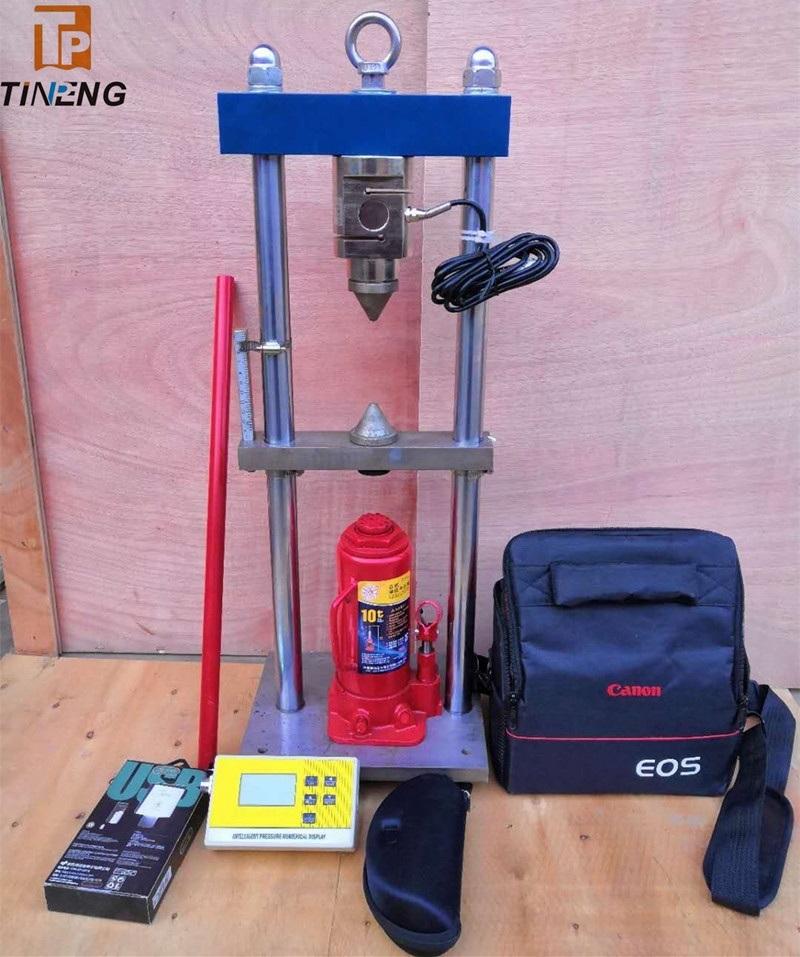

Rock point load test apparatus
This apparatus comprises a two-column fixed crosshead frame and a hand operated hydraulic jack.
Pressure applied by the jack extends the piston carrying the lower conical point. The upper point is fixed to the
crosshead with a scale mounted on the frame to provide specimen diameter information for use in point load
strength index calculations.
Specification:
Max Load:     100kN
Pressure gauge range:    60/100Mpa
Max. specimen Height:    100mm
Max. specimen width:     90mm
Load measuring error:    ≤1%F.S
Piston diameter:     dia.38mm
Pistion stroke    160mm
Dimension:     280x250x640mm
Gross weight:    35kg
