• Model NO.：ifoam
• Power Source：AC380V
• Transport Package：Wooden Box
• Specification：SGS
• Trademark：C-Tech
• Origin：China
• HS Code：90248000
• Production Capacity：100PCS,Year

Basic Info.

Model NO. ifoam Power Source AC380V Transport Package Wooden Box Specification SGS Trademark C-Tech Origin China HS Code 90248000 Production Capacity 100PCS/Year

Product Description

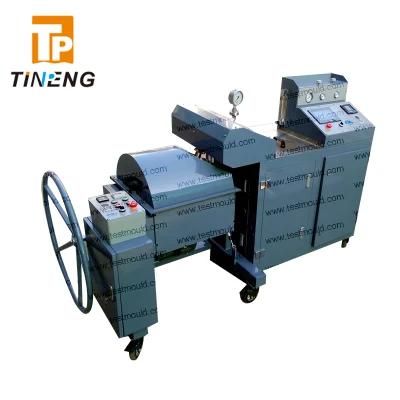

Laboratory Foam Bitumen Plant

The iFOAM Laboratory Foam Bitumen Plant is designed to be professional equipment as a true representation of "Asphalt Foaming", a professional-grade equipment for indoor study of foamed asphalt.
iFOAM supported use of the mixer can be used for cold mix materials, but also for hot mix(warm mix) materials.
The patented foamed bitumen generator, core component of iFOAM has a function of secondary foaming, the rationary design makes the mixing of asphalt and water more evenly, so as to the asphalt foaming process more fully and foaming effect more better. In addition, an increase of some regulatory function is used to optimize the foaming properties of asphalt.
iFoam asphalt tank comes with an agitator, to ensure consistent temperature of asphalt tank from top to bottom.
iFoam asphalt tank ergonomic height above ground makes the dumping asphalt work more convenient and safe.
All iFoam bitumen pipes have heat insulation function, to avoid clogging the asphalt, eliminating lines clean

Specifications:
Water consumption: Min: 2.5L/Hour;Max: 6.0L/Hour
Air consumption: Min: 0L/Hour; Max: 100L/Hour
Max bitumen pump pressure: 2.5Mpa
Max water pressure: 0.6Mpa
Air pressure: Min: 140Mpa; Max: 170Mpa
Water Temperature: Min: 10°C;Max: 60°C
Bitumen tank volume: 12.5L
Power supply voltage: 220V
Water tank volume: 6L;Air chamber Volume: 6L
Rated power Bitumen pump: 1.5kW;Heaters: 3.2kW;Control: 0.1kW
Bitumen pump speed: Min: 1Hz;Max: 60Hz
Power supply voltage: 220V
Asphalt foam spraying time can be set: 0.1-999S
Dimension (lengthxwidthx height):1261x670x1200mm



Company Information
ZhuozhouTianpeng imp. and exp. Trade co., ltd is founded in 2006, and specialize in the design, manufacture and supply of high quality construction materials testing equipment for concrete test, soil test, cement test, asphalt test and etc. Our main products include compression test machine, wheel tracking machine, roller compactor, test mould and etc. There are about hundred products of seven series.
Tianpeng logo is branded and internationally qualified and the company image is well known worldwide. We believe that we can supply more top quality product and service for more customer's trough our further effort in near future.
