• Model NO.：WEW-D
• Accuracy Grade：1
• Load Way：Hydraulic
• Loading Method：Static Load
• Display：Digital
• Control：Computer Control
• Weight：1000-2000Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Usage：Steel Metallographic Material
• Accuracy：Class 1 ,0.5
• Loading Max：300 600 1000kn
• Delivery Time：20 Days
• Tensile Jaw：10-20-60mm
• Piston Stroke：250mm
• Column Distance：525mm
• Tensile Fixture：Hydraulic Automatic Clamp Fixture
• Flat Jaws for Steel Plate：0-40mm
• Compression Plate：Φ200mm
• Bending Roller Width：30X120mm
• Bending Span：30-450mm
• Main Body Size：860X640X2300mm
• Oil Control Cabinet：1200X600X750mm
• Total Weight：3.8tons
• Transport Package：Plywood Case for Container Loading
• Trademark：CHENJI or OEM
• Origin：China Jinan or Others
• HS Code：9024800000
• Production Capacity：200 Set Per Year

Basic Info.

Model NO. WEW-D Accuracy Grade 1 Load Way Hydraulic Loading Method Static Load Display Digital Control Computer Control Weight 1000-2000Kg Power Source AC220V Oil Cylinder Position Under Usage Steel Metallographic Material Accuracy Class 1 /0.5 Loading Max 300 600 1000kn Delivery Time 20 Days Tensile Jaw 10-20-60mm Piston Stroke 250mm Column Distance 525mm Tensile Fixture Hydraulic Automatic Clamp Fixture Flat Jaws for Steel Plate 0-40mm Compression Plate Φ200mm Bending Roller Width 30X120mm Bending Span 30-450mm Main Body Size 860X640X2300mm Oil Control Cabinet 1200X600X750mm Total Weight 3.8tons Transport Package Plywood Case for Container Loading Trademark CHENJI or OEM Origin China Jinan or Others HS Code 9024800000 Production Capacity 200 Set Per Year

Product Description

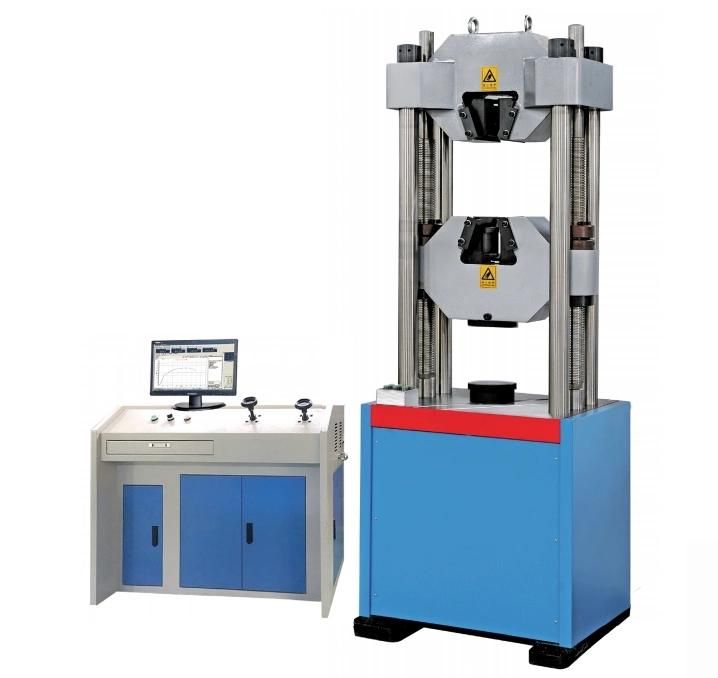

WEW-D Series 30Ton 300kN 60Ton 600kN 100Ton 1000kN Hydraulic Loading Universal Testing Machine
1. Actual Appliance This machine is mainly used for metal, nonmetal materials mechanical properties such as tensile, compression, bending and shear test, the machine is equipped with a computer, printer, electronics, extensometer and general test software, photoelectric encoder can accurately measure metal material tensile strength, yield strength and extension strength, elongation, elastic modulus and so on mechanical properties. Test results can query and print (force displacement, force - deformation, stress the displacement, stress and deformation, force moment, deformation time) of six kinds of curve and related test data, with function, software testing can be self diagnosis of fault, see note software. Is the industrial and mining enterprises, scientific research units, colleges and universities, such as construction quality surveillance department ideal test equipment.
2. Control Parts
Amplifier and 24 high precision AD converter with high precision, efficient code: + 300000; Test force resolution 1/350000.Load is realized by using PID control, constant speed control, speed range: 0.2 to 5% FS/S with functions of load.Displacement is realized by using PID control, constant speed control, speed range: 0.6 to 60 mm/min with displacement function.Strain is realized by using PID control, constant speed control, speed range: 0.00025 / S - 0.0025 / S with functions of strain to keep.

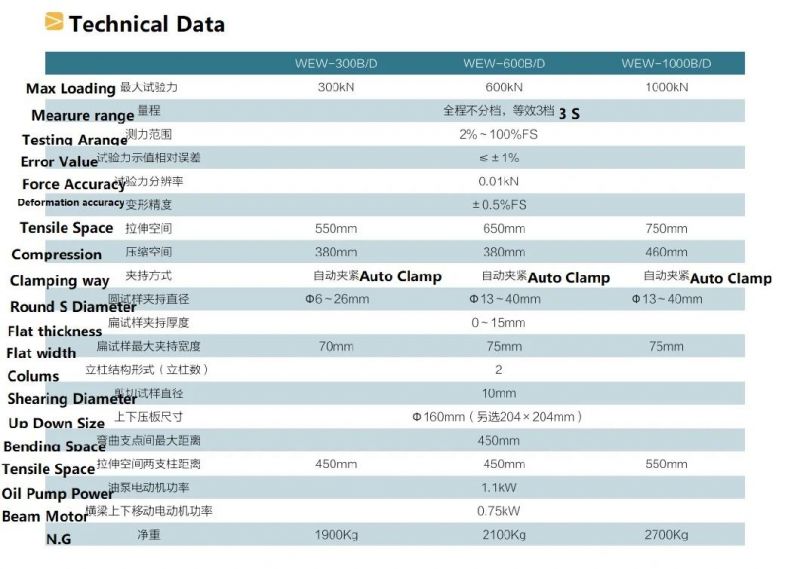

3. Technical Data

 4. Widely Used for steel bar, steel Rebar etc...
