SD-V Type Manual Type Impact Metal Specimen Broaching Machine
Jinan Chenji International Trade Co., Ltd.- After-sales Service：Whole Life
- Warranty：12 Months
- Max Diameter of Workpiece：<500mm
- Mass Scope of Workpiece：<900kg
- Type：Impact Testing Machine
- Maxcapacity：<1000KN
Base Info
- Model NO.：SD-V
- Accuracy Grade：1
- Load Way：Mechanical Load
- Loading Method：Static Load
- Display：Without
- Control：Manual Control
- Weight：0-100Kg
- Power Source：AC220V
- Oil Cylinder Position：Without
- Division Value Per Cell：1j 2j
- Impact Speed：5.24m,S
- Span of Sample Support：40mm
- Impact Blade：2-2.5mm
- Angle of Impact Knife：30°
- Knife Thickness：16mm
- Specimen Specification：10 *10 *55mm
- Temperature Range：Room Temperature
- Feeding Speed：Less Than 2 Second
- Appearance：460*610*1400mm
- Net Weight：About 40kg
- Motor Power：370W
- Power Supply：Three-Phase Four-Wire 380V,50Hz
- Transport Package：Plywood Standard Ocean Case
- Specification：customized
- Trademark：CHENJI or OEM
- Origin：China Jinan or Others
- Production Capacity：2800 Set Per Year
Description
Basic Info.
Model NO. SD-V Accuracy Grade 1 Load Way Mechanical Load Loading Method Static Load Display Without Control Manual Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position Without Division Value Per Cell 1j 2j Impact Speed 5.24m/S Span of Sample Support 40mm Impact Blade 2-2.5mm Angle of Impact Knife 30° Knife Thickness 16mm Specimen Specification 10 *10 *55mm Temperature Range Room Temperature Feeding Speed Less Than 2 Second Appearance 460*610*1400mm Net Weight About 40kg Motor Power 370W Power Supply Three-Phase Four-Wire 380V/50Hz Transport Package Plywood Standard Ocean Case Specification customized Trademark CHENJI or OEM Origin China Jinan or Others Production Capacity 2800 Set Per YearProduct Description

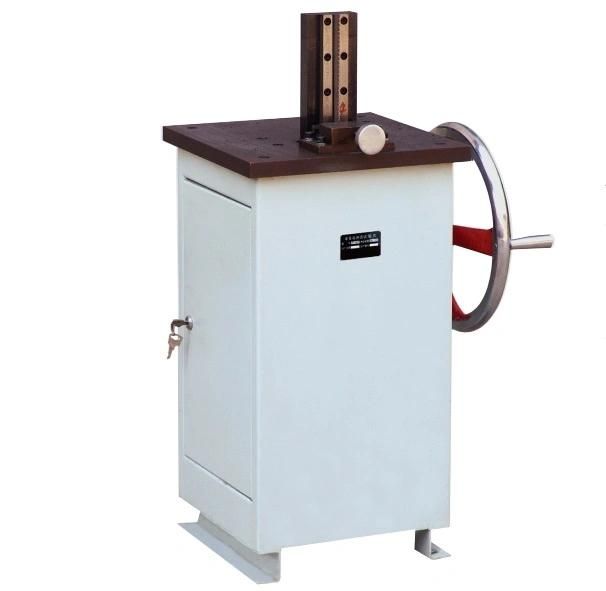

SD-V Type Manual Type Impact Metal Specimen Broaching Machine
1. Actual Usage The broaching machine dedicated to precision processing impact sample of V and U gap. Is the necessary auxiliary equipment for metal material impact test. Was applied to test the unit.
2. Function & Features
The broaching machine has simple operation, a molding and gap characteristics of uniform. Meet the GB / / S0148 T229-2007 national standard requirements. Artificial plate, driving the machining.Can be configured according to the requirements of customers V or U broach. Broach the use of special materials, special process precision processing and manufacturing, high hardness, good wear resistance, long service life. Broach long-term supply. 3. Grouped equipment
