Two/Four-Channel 0-5V/4-20mA to RS232/RS485 Converter with LED Display
Shenzhen Sunyuan Technology Co., Ltd.- Input：0-75mv,0-10V,0-+,-10V,4-20mA,0-+,-20mA,etc
- Output：RS232,RS485
- Isolation Voltage：3000VDC
- Communication Port：RS232,RS485
- Channels：2,4-CH
- Wide Power Supply Range：8~50VDC
Base Info

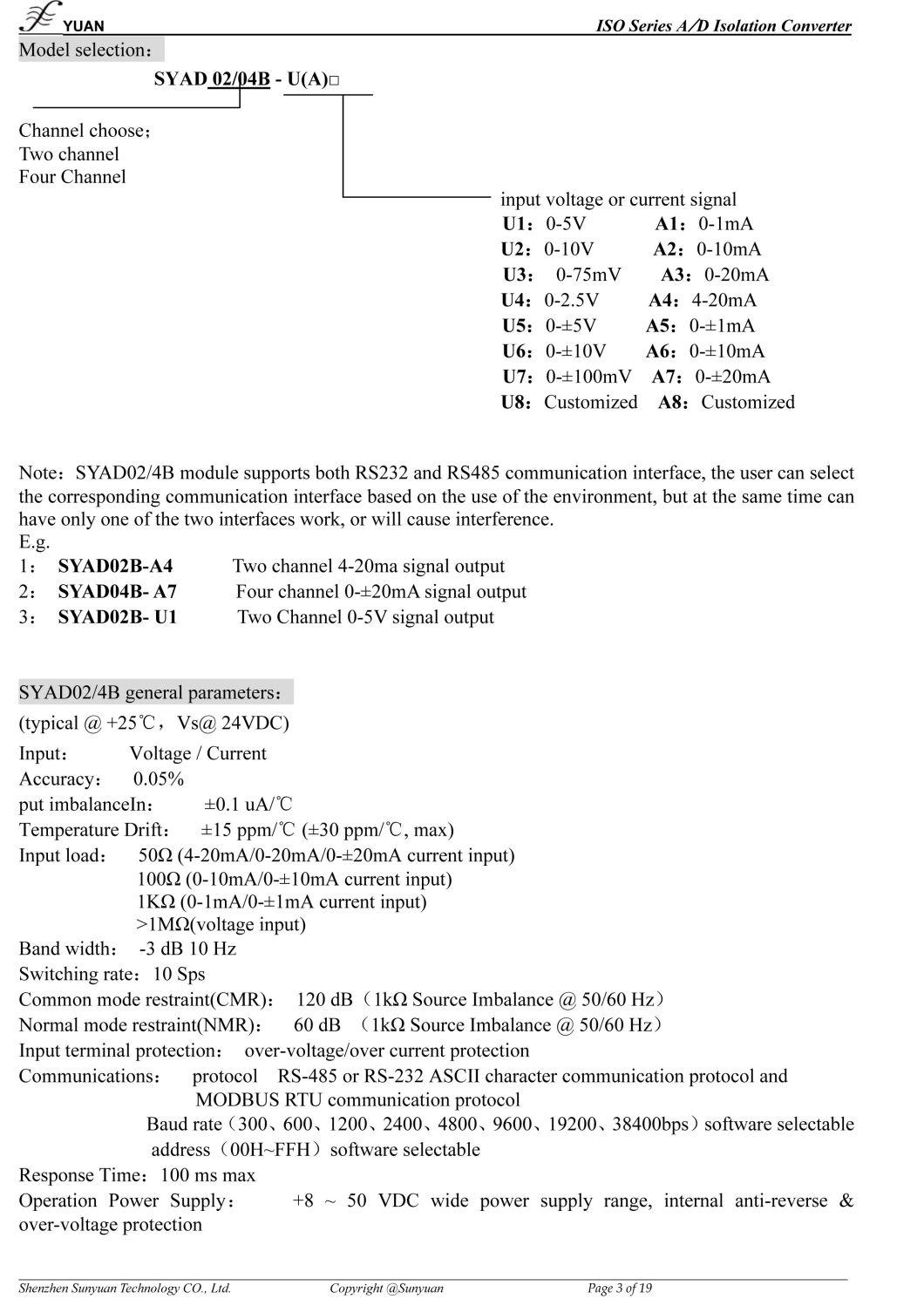

- Model NO.：SYAD02,4B Series
- Analog Signal Output Accuracy：>0.5%
- Package：Adam DIN-Rail
- Communication Protocol：Support Modbus RTU
- Transport Package：Adam DIN Rail
- Specification：ISO9001: 2008, CE, ROHS
- Trademark：SUNYUAN
- Origin：Shenzhen, Guangdong, China
- HS Code：85423390
- Production Capacity：50000PCS Per Month
Description

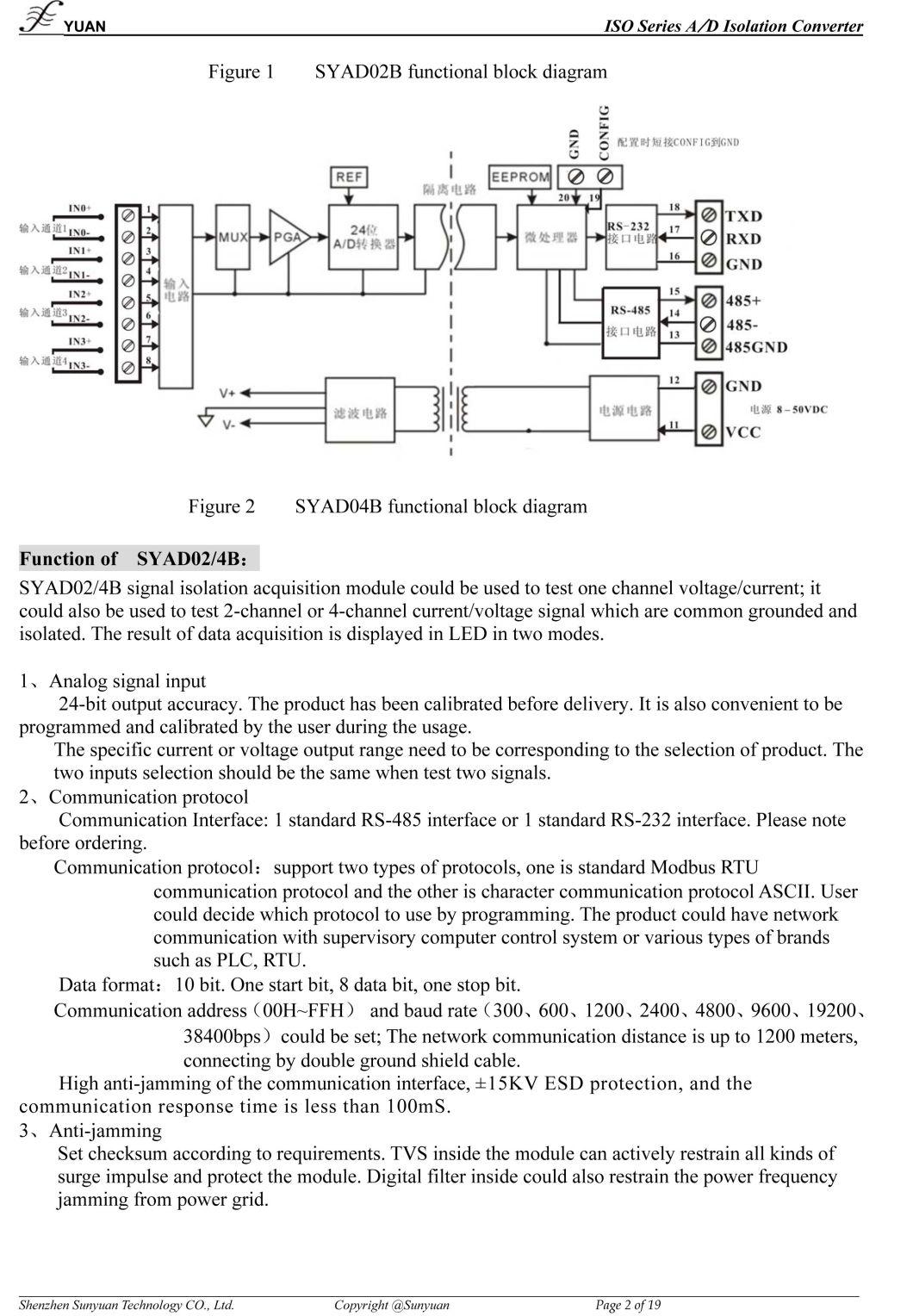

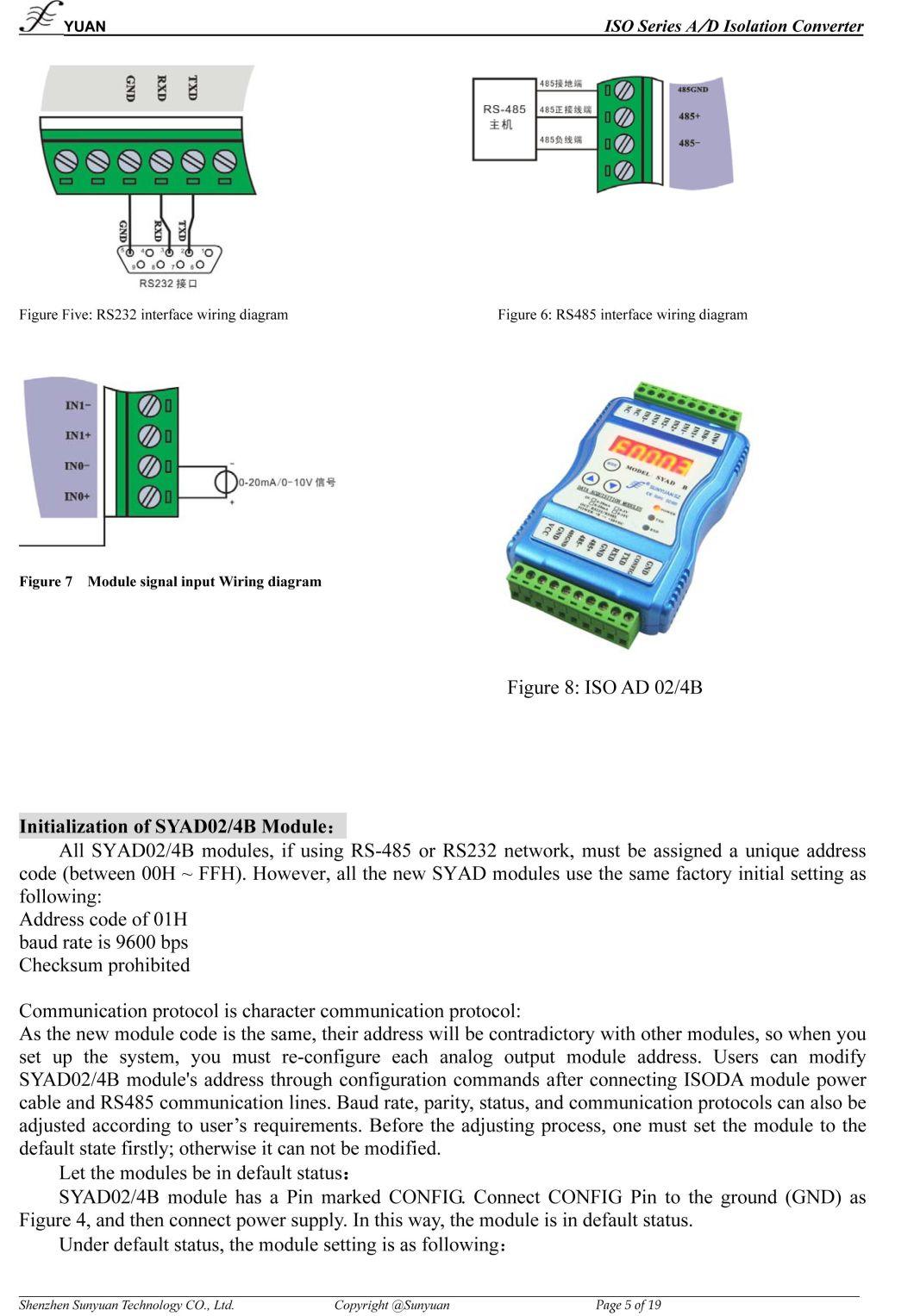

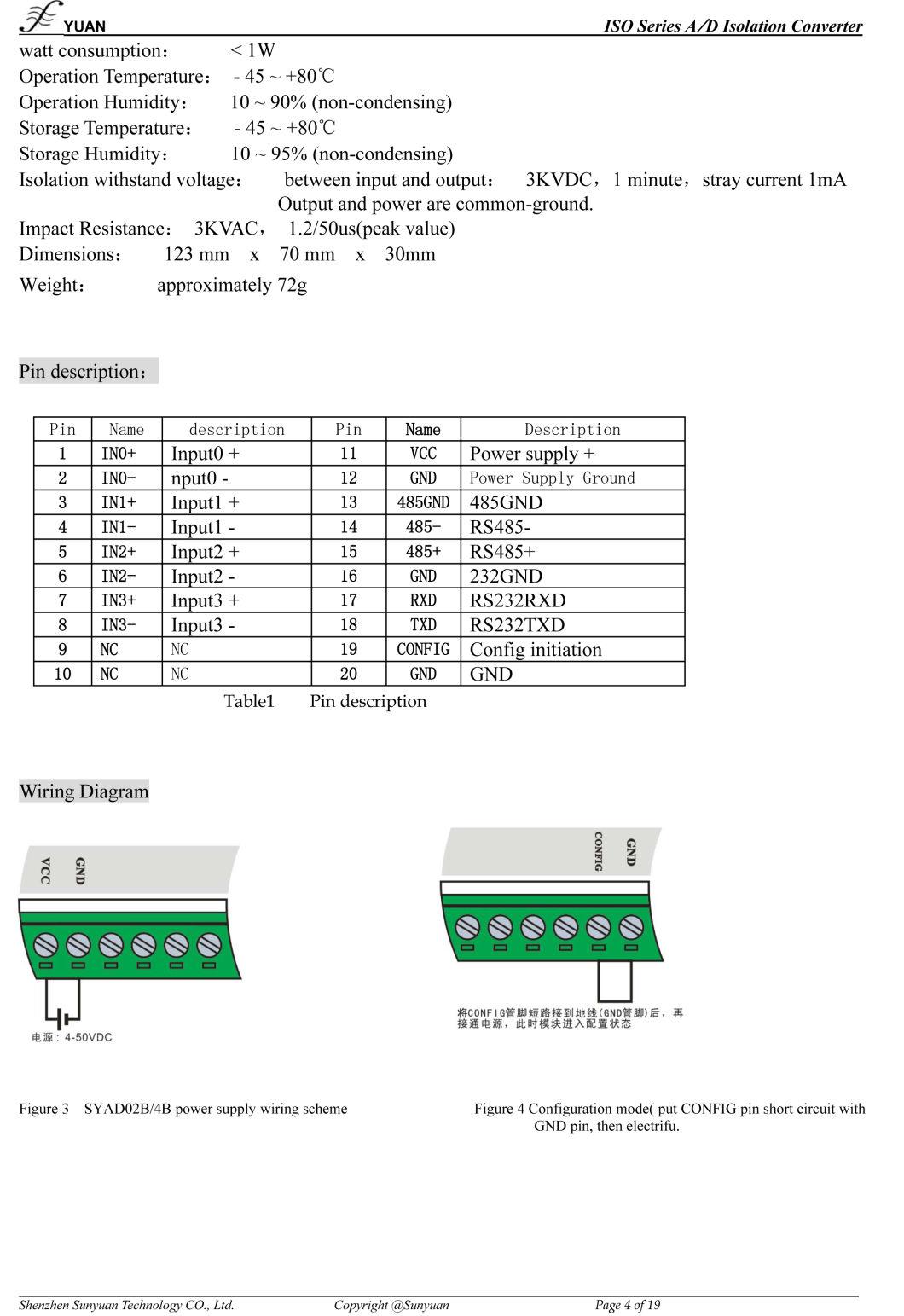

Pin
Name
description
Pin
Name
Description
1
IN0+
Input0 +
11
VCC
Power supply +
2
IN0-
nput0 -
12
GND
Power Supply Ground
3
IN1+
Input1 +
13
485GND
485GND
4
IN1-
Input1 -
14
485-
RS485-
5
IN2+
Input2 +
15
485+
RS485+
6
IN2-
Input2 -
16
GND
232GND
7
IN3+
Input3 +
17
RXD
RS232RXD
8
IN3-
Input3 -
18
TXD
RS232TXD
9
NC
NC
19
CONFIG
Config initiation
10
NC
NC
20
GND
GND
