• Model NO.：GD-510D
• Control：Manual Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Cloud Point Test Equipment
• Item Name：Gd-510d ASTM D97 Cloud Point and Pour Point Appara
• Reference Standard：ASTM D97
• Test Mode：Automatic
• Test Parameters：Pour Point, Cloud Point
• Applicable Tested Samples：Jet Fuel, Lubricating Oil, Transformer Oil, Hydrau
• Measurement Range：Room Temp.~-70c
• Cooling Method：Compressor Cooling
• Structure：Four Baths, Can Test 4 Samples Simulately
• Packing Size and Weight：84*69*50cm, 84kg
• Warranty Period：One Year
• Transport Package：Packed in Veneer Case
• Specification：Refer to detailed description
• Trademark：GOLD
• Origin：Chongqing, China
• HS Code：9031809090
• Production Capacity：100 Sets, Month

Basic Info.

Model NO. GD-510D Control Manual Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position Cloud Point Test Equipment Item Name Gd-510d ASTM D97 Cloud Point and Pour Point Appara Reference Standard ASTM D97 Test Mode Automatic Test Parameters Pour Point, Cloud Point Applicable Tested Samples Jet Fuel, Lubricating Oil, Transformer Oil, Hydrau Measurement Range Room Temp.~-70c Cooling Method Compressor Cooling Structure Four Baths, Can Test 4 Samples Simulately Packing Size and Weight 84*69*50cm, 84kg Warranty Period One Year Transport Package Packed in Veneer Case Specification Refer to detailed description Trademark GOLD Origin Chongqing, China HS Code 9031809090 Production Capacity 100 Sets/ Month

Product Description

GD-510D ASTM D97 Cloud Point and Pour Point Apparatus



Introduction:
The Cloud And Pour Point Apparatus is designed and made as per ASTM D97,ASTM D2500, ASTM D5853;GB/T3535 Standard Test Method for Pour Point of Petroleum Oils and GB/T6986 Test Method for Cloud Point of Petroleum Oils in the National Standard of People's Republic of China.
The Cloud Point and Pour Point Apparatus ASTM D97 is suitable to determine pour point and cloud point of petroleum oils.


Features:
1. The working table is stainless steel material. It has two chambers(chamber I and chamber II) .Each chamber equipped two cooling baths.The temperature of these two baths are the same. All cooling baths can determine pour point and cloud point.
2. It is no need to use coolant in the chamber. The cooling speed is fast and cooling efficiency is high. The temperature controller I controls the temperature of chamber I and temperature controller II controls the temperature of chamber II. The minimum temperature of chamber II can reach -70ºC and temperature control precision is ±1ºC.
3. The Cloud and Pour Point Test Equipment adopts bench structure, concise design and easy to use.



Specifications:
1. Power supply: AC 220 V±10%, 50 Hz;
2. Temperature control of chamber:
    (1) Chamber I: Ambient to -51 ºC, ±1 ºC, temperatures of two cooling baths the same.
    (2) Chamber II: Ambient to -70 ºC, ±1 ºC, temperatures of two cooling baths the same.
3. Refrigeration system: New type refrigeration compressor
4. Ambient temperature: ≤30 ºC
5. Relative humidity: ≤85%
6. Maximum power consumption: 1500 W
7. Dimension: 800mm×580mm×400mm

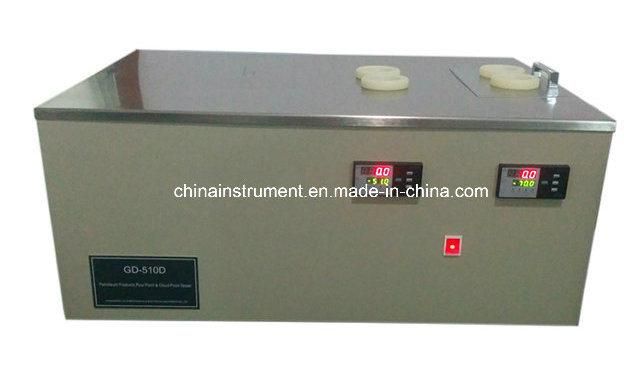

Picutures of Cloud and Pour Point Test Bath:

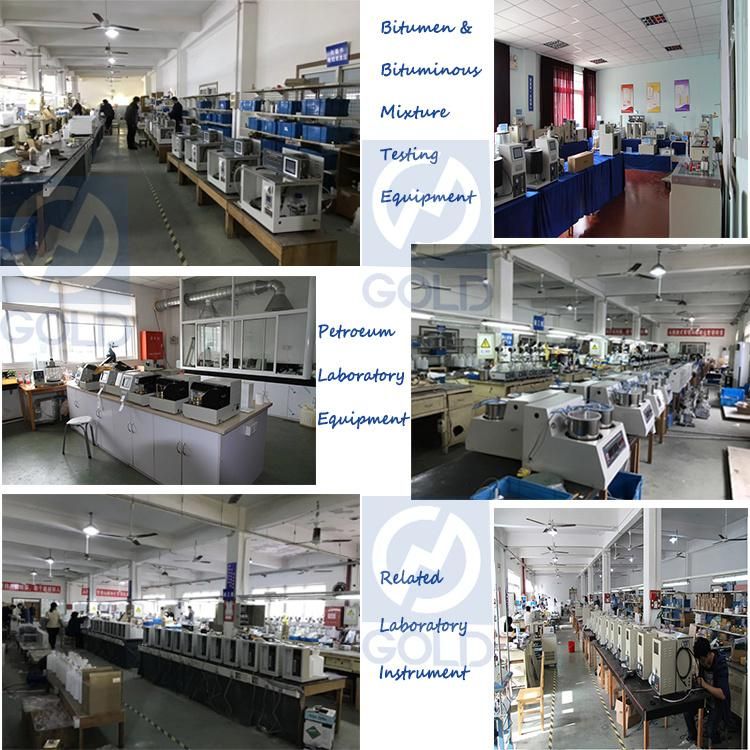

Factory Show:
