• Model NO.：STYE-3000C
• Control：Computer Control
• Weight：>2000Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Product Name：3000kn Compression Testing Machine Manufacturers
• Max.Testing Power：3000kn
• Measuring Range：0-3000kn
• Distance Between Plates：380mm
• Max.Piston Stroke：90mm
• Diameter of The Piston：Diameter 310mm
• Reated Pressure of The Hydraulic Pump：40MPa
• Power：AC220V,AC380V
• Max.Piston Lift Speed：50mm,Min
• Piston Free Back Speed：20mm,Min
• Transport Package：Export Standard Wooden Case
• Specification：1120x620x2000mm
• Trademark：YUFENG
• Origin：China
• HS Code：9031809090
• Production Capacity：500pieces,Month

Basic Info.

Model NO. STYE-3000C Control Computer Control Weight >2000Kg Power Source AC220V Oil Cylinder Position Under Product Name 3000kn Compression Testing Machine Manufacturers Max.Testing Power 3000kn Measuring Range 0-3000kn Distance Between Plates 380mm Max.Piston Stroke 90mm Diameter of The Piston Diameter 310mm Reated Pressure of The Hydraulic Pump 40MPa Power AC220V,AC380V Max.Piston Lift Speed 50mm/Min Piston Free Back Speed 20mm/Min Transport Package Export Standard Wooden Case Specification 1120x620x2000mm Trademark YUFENG Origin China HS Code 9031809090 Production Capacity 500pieces/Month

Product Description

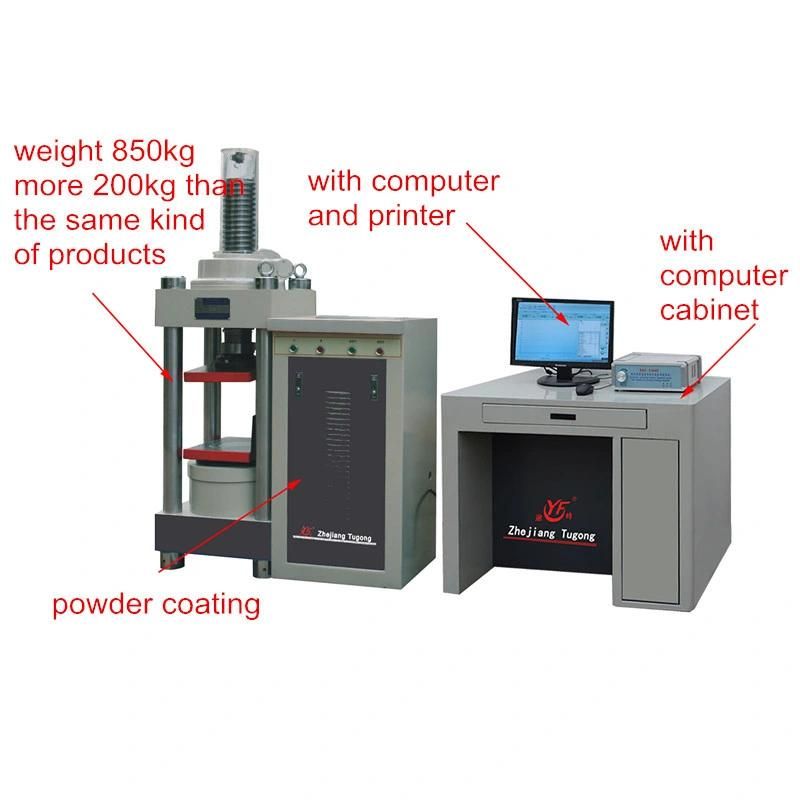

Product Description:STYE-3000C Full Automatic Compression Testing Machine Manufacturers

Use:
Computer controlled hydraulic servo compression testing machine is mainly used  to test compression strength of cement, concrete, rocks, brick. they also can perform shear test, anti-break test and elastic modules test of concrete with special compression fixtures and measurement assembly.
Feature:
Space adjusting& test processes could be controlled by the software and the test result could be transferred to the software in the computer for further analysis. It is the most advanced series in hydraulic compression testing machines. It is widely used in different steel works, engineering areas, quality control department, Universities and institutes as well as other areas and works.

Fully computer controlled testing process.
Stable and reliable high intensity structure load frame.
Real time display software will provide accurate track of testing process.
Powerful multifunctional control software will provide more testing methods and standards.
Overload protection will secure operators.
Safe and reliable software interface and control. It is very easy to prevent mistake operation
during the test stage which will cause damage to the testing machine.
Easy and fast to edit customized test reports in EXCEL format.

STYE-3000C
Specification:
Max. testing power: 3000kN
Measuring range: 0-3000kN
Relative indication error: ±1%,±0.5%
Max. distance between the up and down
bearing plates: 380mm
Max. piston stroke: 90mm
Diameter of the piston: Φ310mm
Rated pressure of the hydraulic pump: 40MPa
Power: AC220V±10% or AC380±10%
Outside size: 1120X620X2000mm
Max. piston lift speed: 50mm/min.
Piston free back speed: 20mm/min.
Noise: ≤80Db


Max.testing power	3000kn
Measuring range	0-3000kn
Relative indication error	+-1%,+-0.5%
Max.distance between the up and down bearing plates	380mm
Max.piston stroke	90mm
Diameter of the piston	dia 310mm
Rated pressure ot the hydraulic pump	40Mpa
Power	AC220V,AC380V
Outside size	1120x620x2000mm
Max.piston lift speed	50mm/min
Piston free back speed	20mm/min
Noise	<80Db
