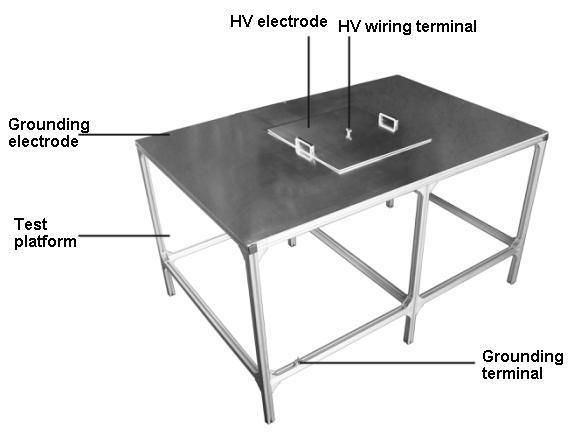

Test Electrode Device for Insulating Mats (GDD-30)

HV Hipot Electric Co., Ltd.
  • Withstand voltage：30kV
  • Continuous running time：Continuously
  • Dimension (HV electrode)：500*500*5mm
  • Dimmesion (grounding electrode)：1500mm*1000mm*5mm
  • Dimmesion (test plateform)：1500mm*1000mm*800mm
  • Max. size of test sample：1500mm*1000mm

Base Info

  • Model NO.：GDD-30
  • Ambient temperature：-10ºC-40ºC
  • Delivery time：Shipped in 20 days after payment
  • Transport Package：Wooden Box
  • Specification：ISO, SGS
  • Trademark：HV Hipot
  • Origin：Wuhan China
  • Production Capacity：5000 Pieces,Year

Description

Ambient temperature-10ºC-40ºCHumidity≤90%RH, no condensation, no flashing of the instrument.Continuous running timeContinuouslyDimension

HV electrode: 500*500*5mm

Grounding electrode: 1500mm*1000mm*5mm

Test platform: 1500mm*1000mm*800mm

Weight (kg)42Max. size of test sample1500mm*1000mm


Electrical performance of insulating mats

LevelRated Voltage (kV)1min Power Frequency Withstand Voltage (kV)00.385131026,102032030

 Test Electrode Device for Insulating Mats (GDD-30)

During the withstand voltage test of insulating mats, it is necessary to cooperate with the boosting device. The corresponding test voltage is chosen according to the requirements stated in the preceding table.
