High Speed Particle Impact Tester/ Goggles High Speed Impact Testing Machine/Goggles Testing Machine

Dongguan Hong Tu Instrument Co., Ltd.

Max Diameter of Workpiece：500mm
Mass Scope of Workpiece：<900kg
Type：Material Testing Machine
Maxcapacity：<1000KN
Accuracy Grade：1
Load Way：Electronic Load

Base Info

Model NO.：HT-6023
Loading Method：Static Load
Display：Digital
Control：Manual Control
Weight：100-500Kg
Power Source：AC220V
Oil Cylinder Position：No
Testing Standard：ANSI Z87.1, En166, En168,GB
Testing Sample：Helmet Goggles, Protection Mask , Eye Glass etc
High Speed：190m,S
Medium Speed：90m,S
Low Speed：45m,S
The Diameter of Steel Ball：6mm
Control Ways：Touch Screen Control
Data Show：Speed , Time etc
Electricity：220V 5Hz
Secure Function：with Protection Door
Transport Package：Wooden Case
Specification：Pneumatic power source
Trademark：hototech
Origin：China
HS Code：9031809090
Production Capacity：100PCS,Month

Description

Product NameHigh Speed Particle Impact Tester/ Goggles High Speed Impact Testing Machine/Goggles Testing MachineTesting standard ANSI Z87.1,EN166,EN168 etc testing standard PurposeIt's used for goggles high speed impact testingLead pellet6mm in diameterImpact speed45~190m/s (adjustable)Headform supportIt's can adjustableEmerrgency protection functionStop system to ensure safety , LCD exhibits the shooting speed (m/s)Laser velocimeterHigh accuracy laser velocityControl waysTouch screen control Electricity220v 50HZ

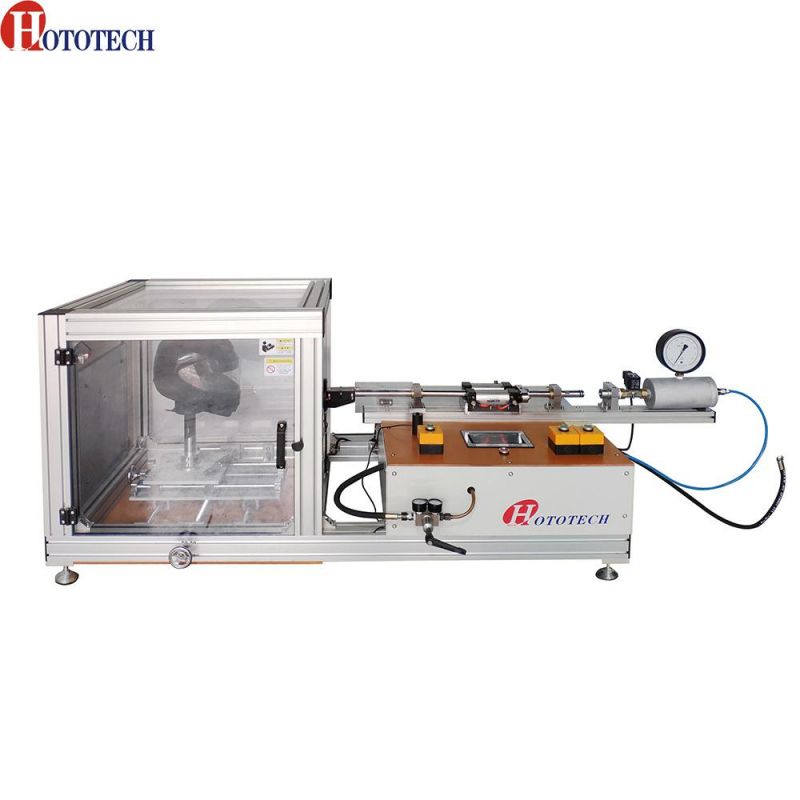

Testing Machine's images show

High Speed Particle Impact Tester/ Goggles High Speed Impact Testing Machine/Goggles Testing Machine

Package Lists

Test Instrument

Product Category

High Speed Particle Impact Tester/ Goggles High Speed Impact Testing Machine/Goggles Testing Machine
