• Model NO.：JW-40
• HS Code：90248000
• Production Capacity：300 Sets,Month

Basic Info.

Model NO. JW-40 HS Code 90248000 Production Capacity 300 Sets/Month

Product Description

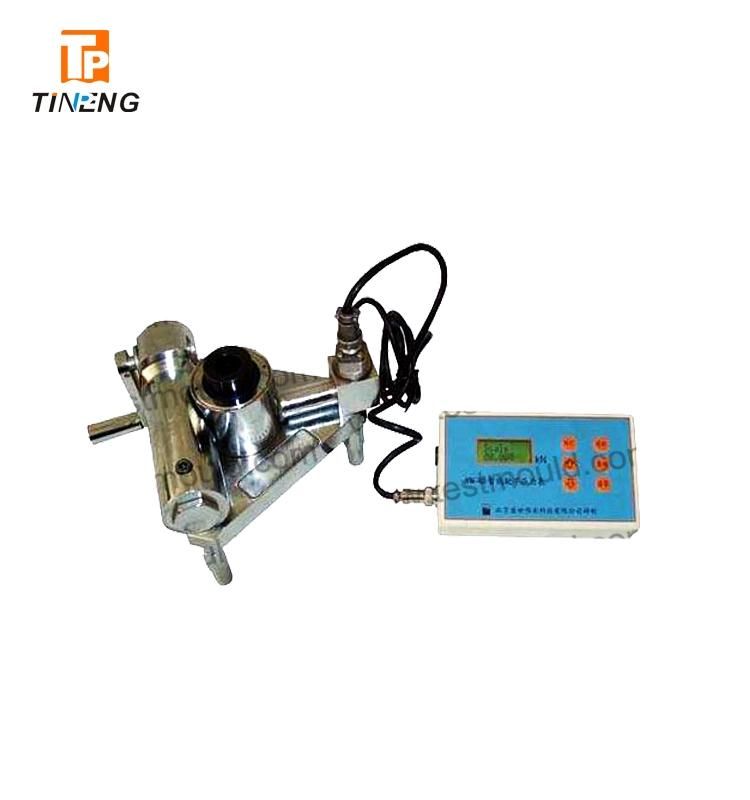

JW-40 Pull off Adhesive Strength Tester for Decorative Tiles

JW-40 Pull off Adhesive Strength Tester for Decorative Tiles is mainly used for the detection of building concrete strength (C10 ~ C80) and the testing of the adhesive strength of decorative tiles and other on-site inspections of relevant pullout strengths.



JW-40 Series intelligent digital pressure gauge, the pressure gauge to the control of single store, query and maintain peak function, simple operation, easy to use.


Specifications:

Maximum pullout force of the detector: 40kN

Work the piston stroke: 10mm

Chassis fulcrum diameter: 120mm

Minimum reading: 0.01kN

Indication error: Less than ± 2% F.S

Weight: 4kg

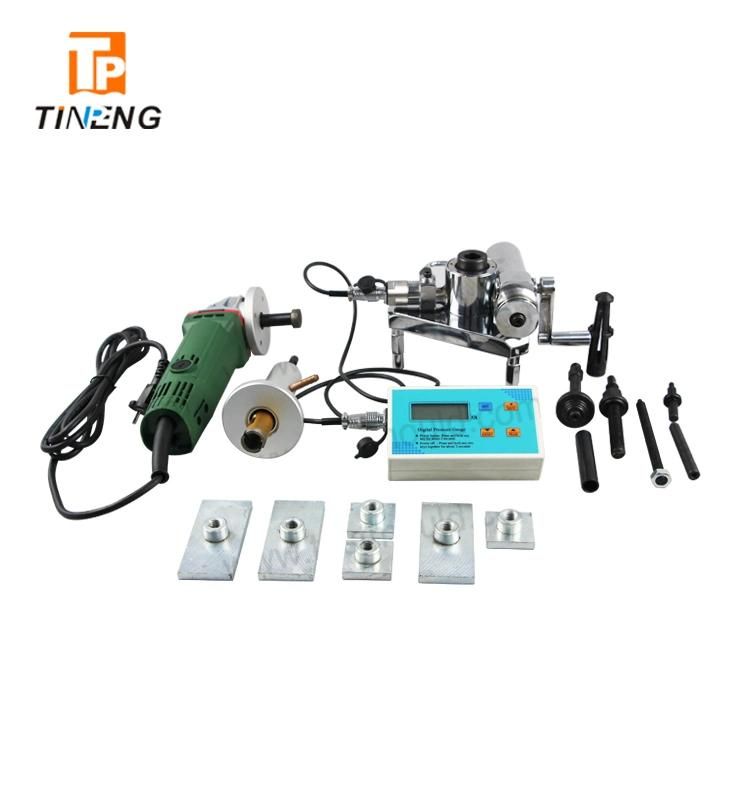

Packing list of model JW-40 :

1. Electric grindergrinding head

2. Drill, bit holder, positioning rod

3. Expansion rod

4. Punch

5. Retraction sleeve

6. Expansion spring

7. Retracting rod (M10)

8. Dilating spring rod (M14)

9 . M12 facing tile, test block (optional)
