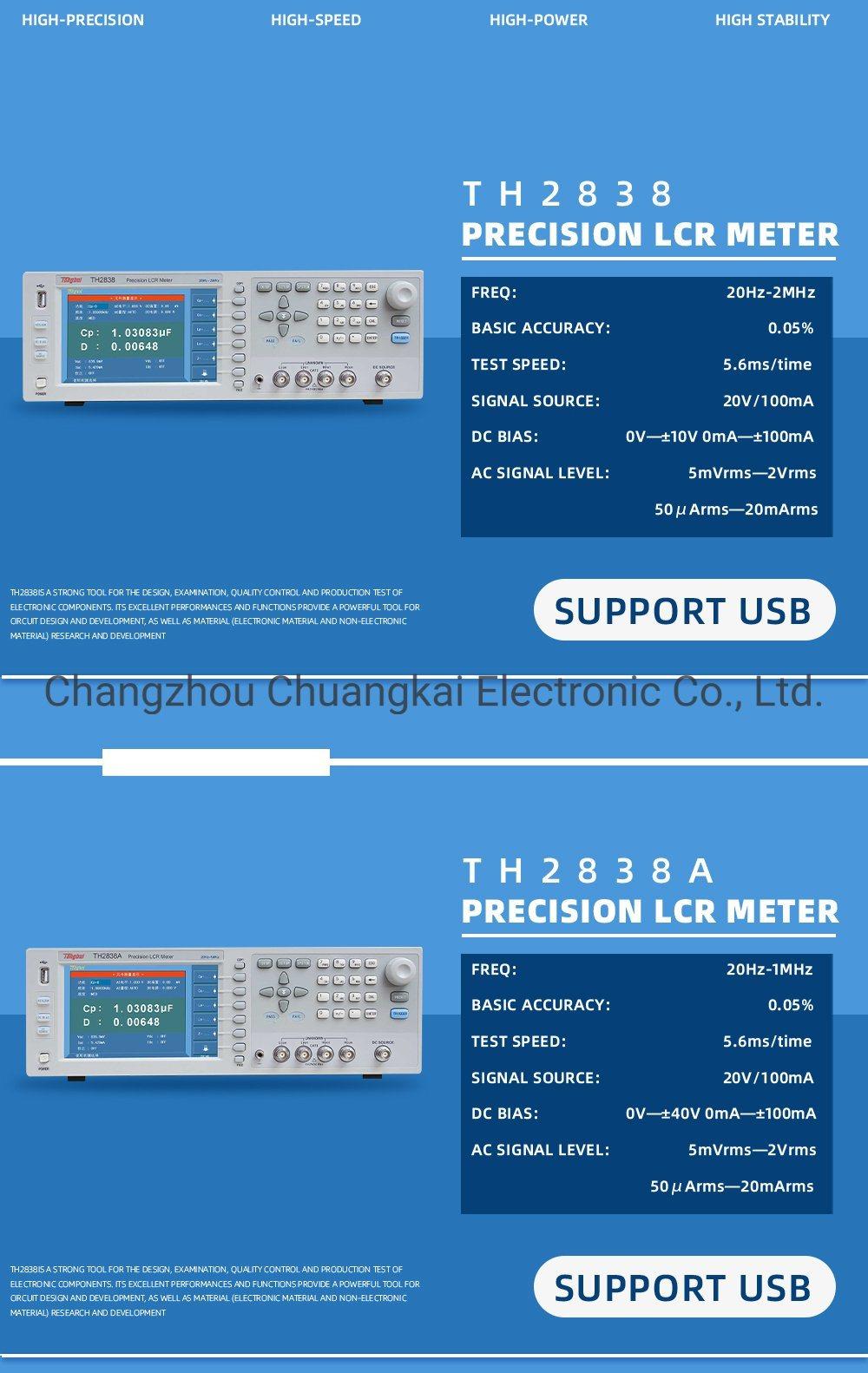

Th2838 Rlc Meter 20Hz-2MHz High Frequency Digital Lcr Meter Resistance Meter

Changzhou Chuangkai Electronic Co., Ltd.

Function：Measurement of Lcr
Display：7-Inch (Diagonal)TFT LCD Display

Base Info

Model NO.：TH2838

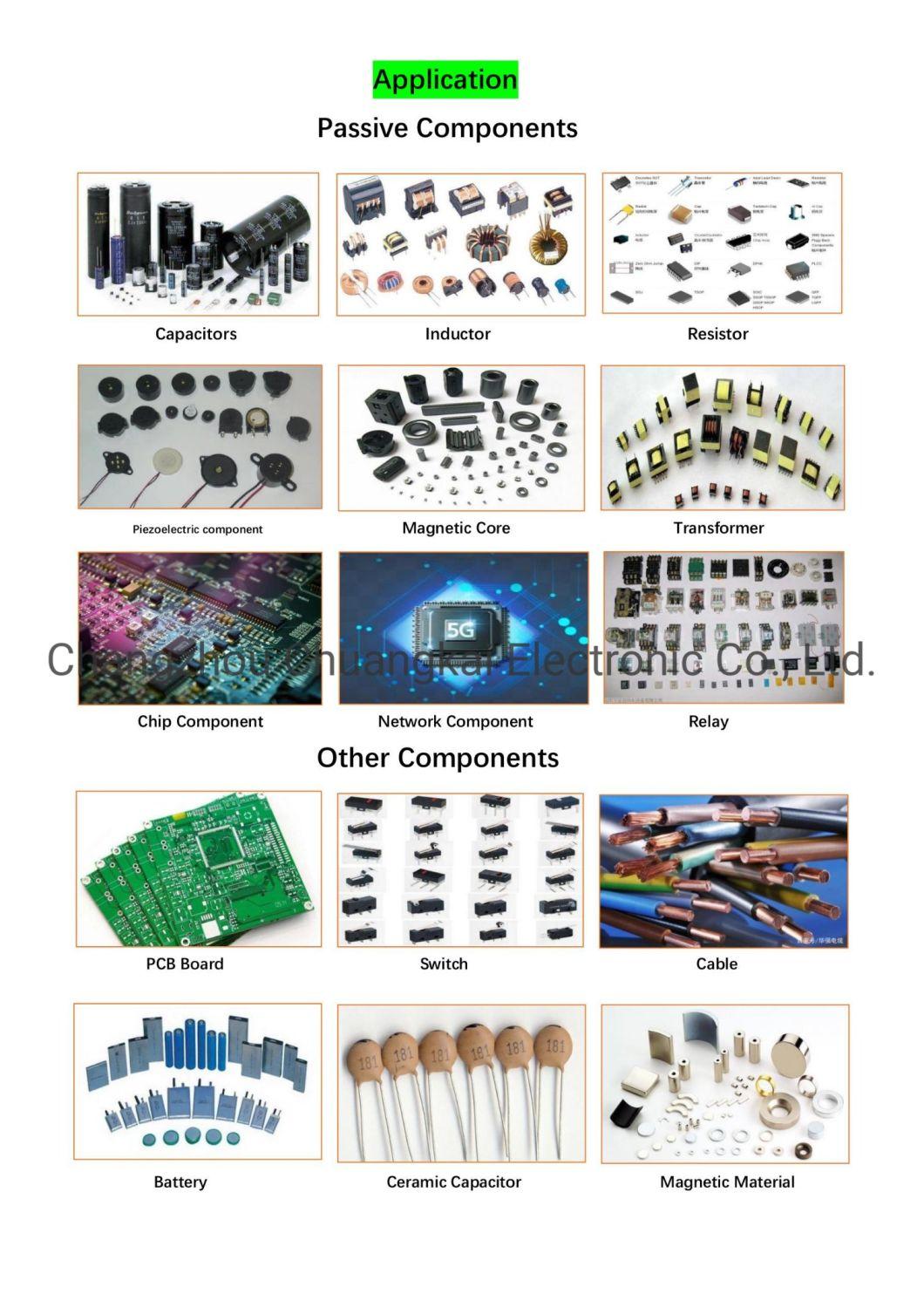

Usage：Electric Component Tester, Gas Sensor Tester, Catalytic Element Tester, Lightning Protection Device Tester, Lcr Meter
Type：Lcr Meter
Environment：Room Temperature
Warranty：With Warranty
Power Source：DC 100V-300V
Weight：〉10Kg
Installation：Direct Connected
Customized：Customized
Frequency：20Hz-2MHz
Equivalent Circuit：Serial, Parallel
Sweep Points：up to 201 Points
Range Mode：Auto, Hold
Trigger Delay：0 S -- 999 S, Resolution 100us
Product Name：Th2838 Rlc Meter 20Hz-2MHz High Frequency Digital
Trigger Mode：Internal, Manual, External, Bus
Calibration Function：Open, Short, Load
Average Time：1-255
Transport Package：Carton
Specification：55x54x33cm
Trademark：CKT
Origin：China
HS Code：9030339000
Production Capacity：2000 Sets Per Month
Package size per unit product：55.00cm * 54.00cm * 33.00cm
Gross weight per unit product：17.000kg
Lead Time：15 days (1 - 1 set) To be negotiated ( > 1 set)

Description

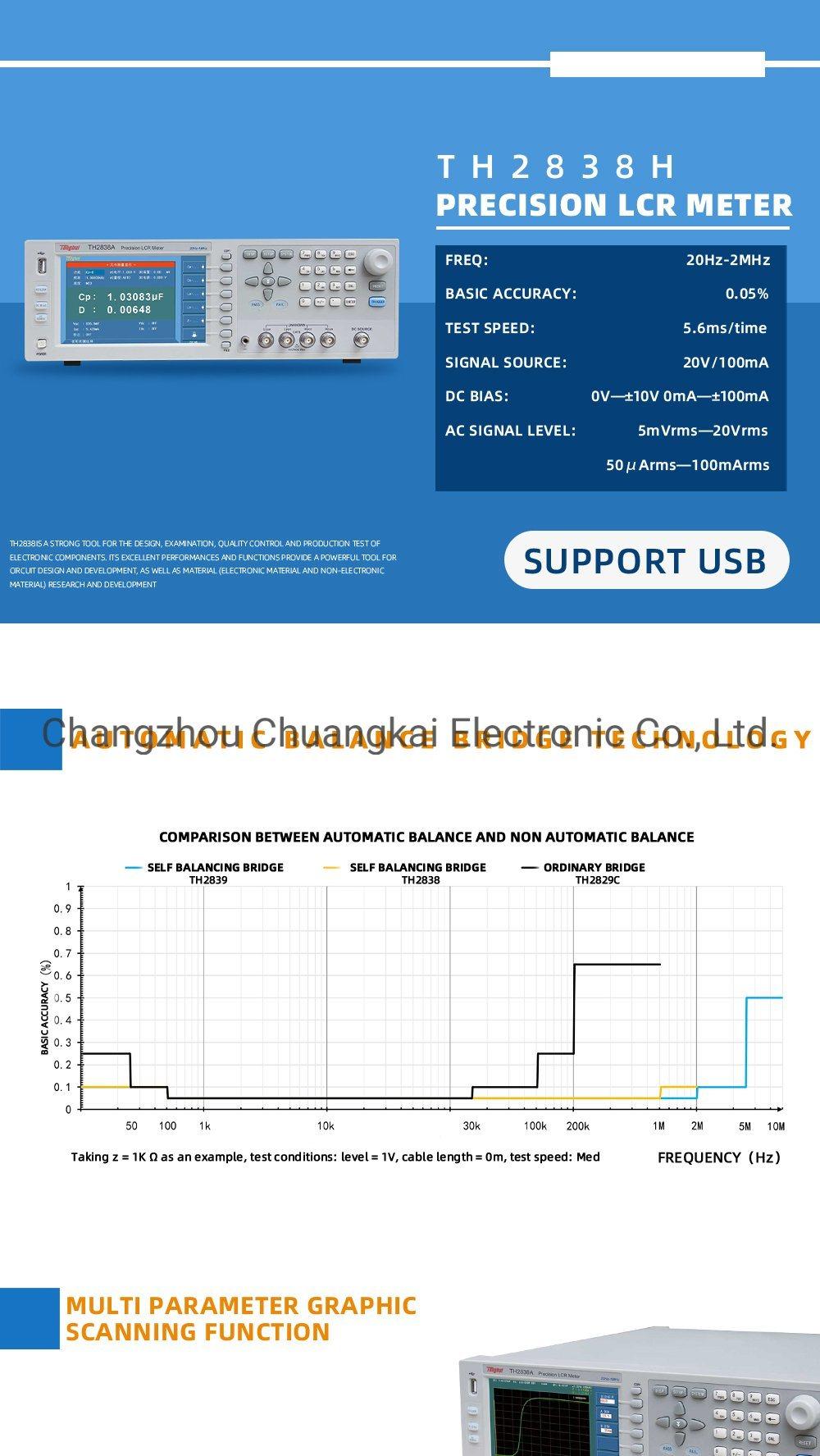

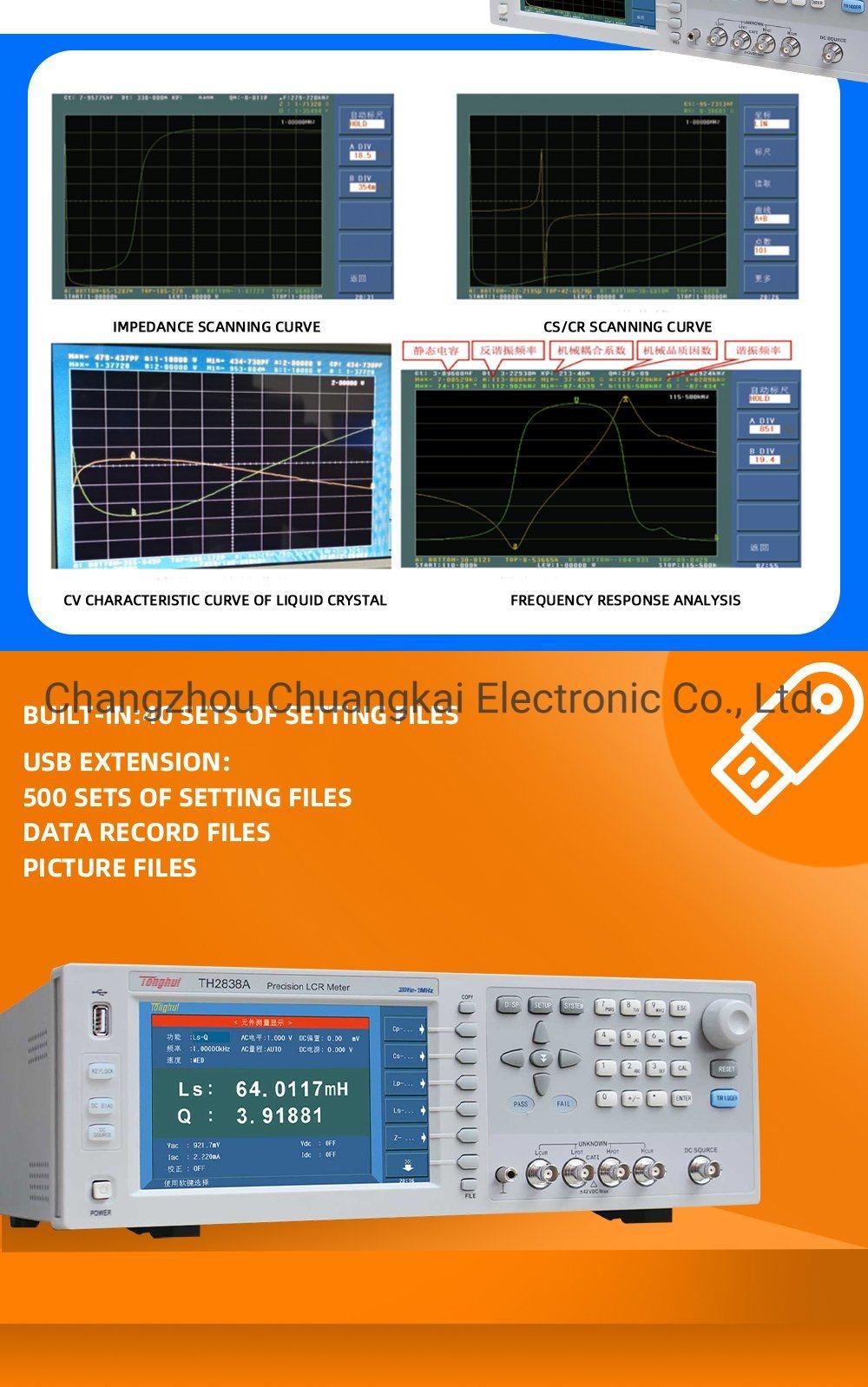

Overview Product Description

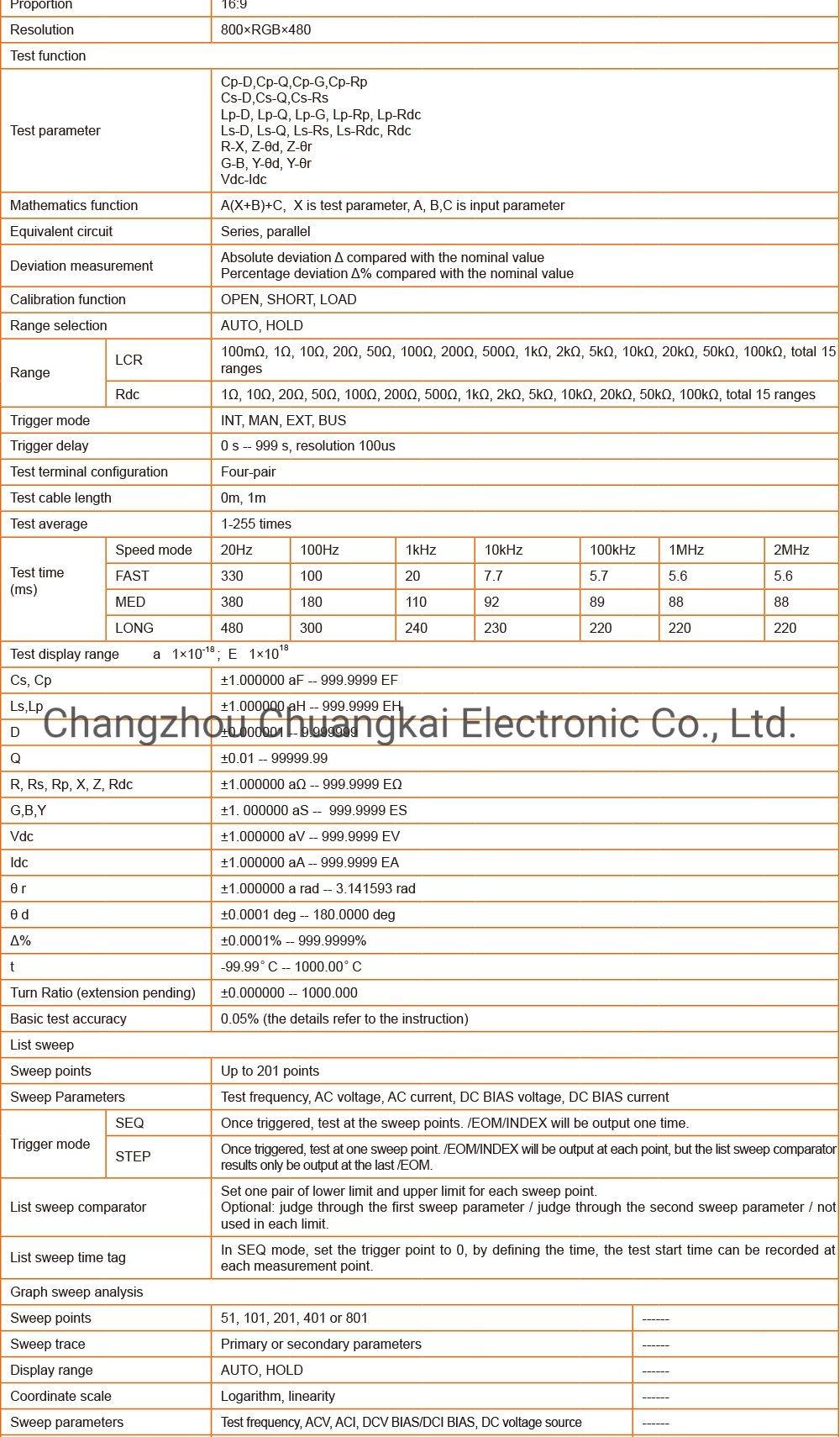

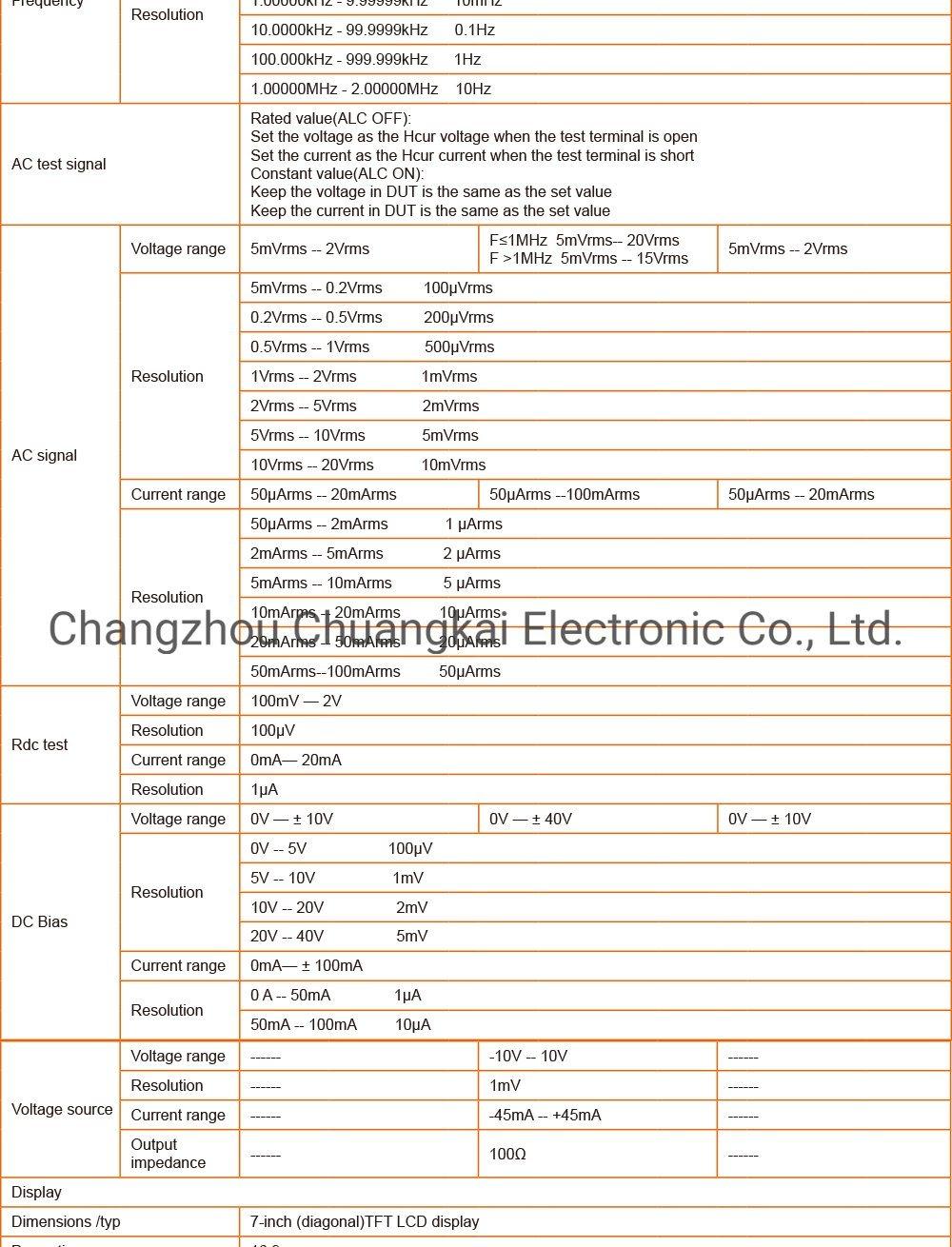

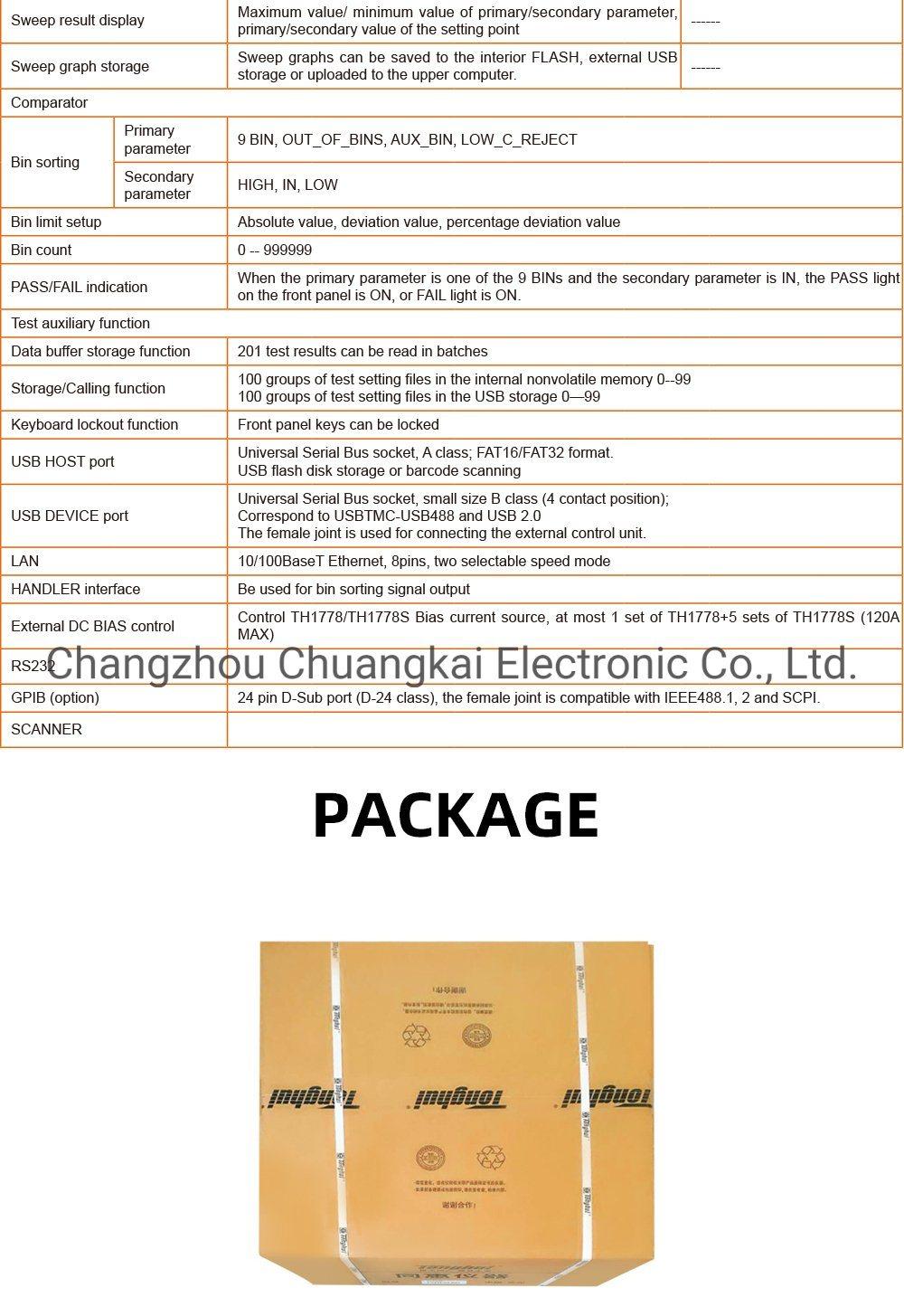

ModelTH2838Test Signal SourceOutput impedance100Ω, ±1% @1kHzFrequencyRange20Hz-2MHzResolution20.0000Hz - 99.9999Hz 0.1mHz100.000Hz - 999.999Hz 1mHz1.00000kHz - 9.99999kHz 10mHz10.0000kHz - 99.9999kHz 0.1Hz100.000kHz - 999.999kHz 1Hz1.00000MHz - 2.00000MHz 10HzAC test signalRated value(ALC OFF):Set the voltage as the Hcur voltage when the test terminal is open Set the current as the Hcur current when the test terminal is short Constant value(ALC ON):Keep the voltage in DUT is the same as the set valueKeep the current in DUT is the same as the set valueAC signalVoltage range5mVrms -- 2VrmsResolution5mVrms -- 0.2Vrms 100μVrms0.2Vrms -- 0.5Vrms 200μVrms0.5Vrms -- 1Vrms 500μVrms1Vrms -- 2Vrms 1mVrms2Vrms -- 5Vrms 2mVrms5Vrms -- 10Vrms 5mVrms10Vrms -- 20Vrms 10mVrmsCurrent range50μArms -- 20mArmsResolution50μArms -- 2mArms 1 μArms2mArms -- 5mArms 2 μArms5mArms -- 10mArms 5 μArms10mArms -- 20mArms 10μArms20mArms -- 50mArms 20μArms50mArms--100mArms 50μArmsRdc testVoltage range100mV - 2VResolution100μVCurrent range0mA- 20mAResolution1μADC BiasVoltage range0V - ± 10VResolution0V -- 5V 100μV5V -- 10V 1mVCurrent range0mA- ± 100mAResolution0 A -- 50mA 1μA50mA -- 100mA 10μADisplaySize/Type7-inch (diagonal)TFT LCD displayProportion16:9Resolution800×RGB×480Test functionTest parameterCp-D,Cp-Q,Cp-G,Cp-RpCs-D,Cs-Q,Cs-RsLp-D, Lp-Q, Lp-G, Lp-Rp, Lp-RdcLs-D, Ls-Q, Ls-Rs, Ls-Rdc, RdcR-X, Z-θd, Z-θrG-B, Y-θd, Y-θrVdc-IdcMathematics functionA(X+B)+C, X is test parameter, A, B,C is input parameterEquivalent circuitSeries, parallelDeviation measurementAbsolute deviation Δ compared with the nominal valuePercentage deviation Δ% compared with the nominal valueCalibration functionOPEN, SHORT, LOADRange selectionAUTO, HOLDRangeLCR100mΩ, 1Ω, 10Ω, 20Ω, 50Ω, 100Ω, 200Ω, 500Ω, 1kΩ, 2kΩ, 5kΩ, 10kΩ, 20kΩ, 50kΩ, 100kΩ, total 15 rangesRdc1Ω, 10Ω, 20Ω, 50Ω, 100Ω, 200Ω, 500Ω, 1kΩ, 2kΩ, 5kΩ, 10kΩ, 20kΩ, 50kΩ, 100kΩ, total 15 rangesTrigger modeINT, MAN, EXT, BUSTrigger delay0 s -- 999 s, resolution 100usTest terminal configurationFour-pairTest cable length0m, 1mTest average1-255 timesTest time(ms)Speed mode20Hz100Hz1kHz10kHz100kHz1MHz2MHzFAST330100207.75.75.65.6MED38018011092898888LONG480300240230220220220Test display range a 1×10^-18; E 1×10¹⁸Cs, Cp±1.000000 aF -- 999.9999 EFLs,Lp±1.000000 aH -- 999.9999 EHD±0.000001 -- 9.999999Q±0.01 -- 99999.99R, Rs, Rp, X, Z, Rdc±1.000000 aΩ -- 999.9999 EΩG,B,Y±1. 000000 aS -- 999.9999 ESVdc ±1.000000 aV -- 999.9999 EVIdc±1.000000 aA -- 999.9999 EAθ r±1.000000 a rad -- 3.141593 radθ d±0.0001 deg -- 180.0000 degΔ%±0.0001% -- 999.9999%t-99.99°C -- 1000.00°CTurn Ratio (extension pending)±0.000000 -- 1000.000Basic test accuracy0.05% (the details refer to the instruction)List sweepSweep pointsUp to 201 pointsSweep ParametersTest frequency, AC voltage, AC current, DC BIAS voltage, DC BIAS currentTrigger modeSEQOnce triggered, test at the sweep points. /EOM/INDEX will be output one time.STEPOnce triggered, test at one sweep point. /EOM/INDEX will be output at each point, but the list sweep comparator results only be output at the last /EOM.

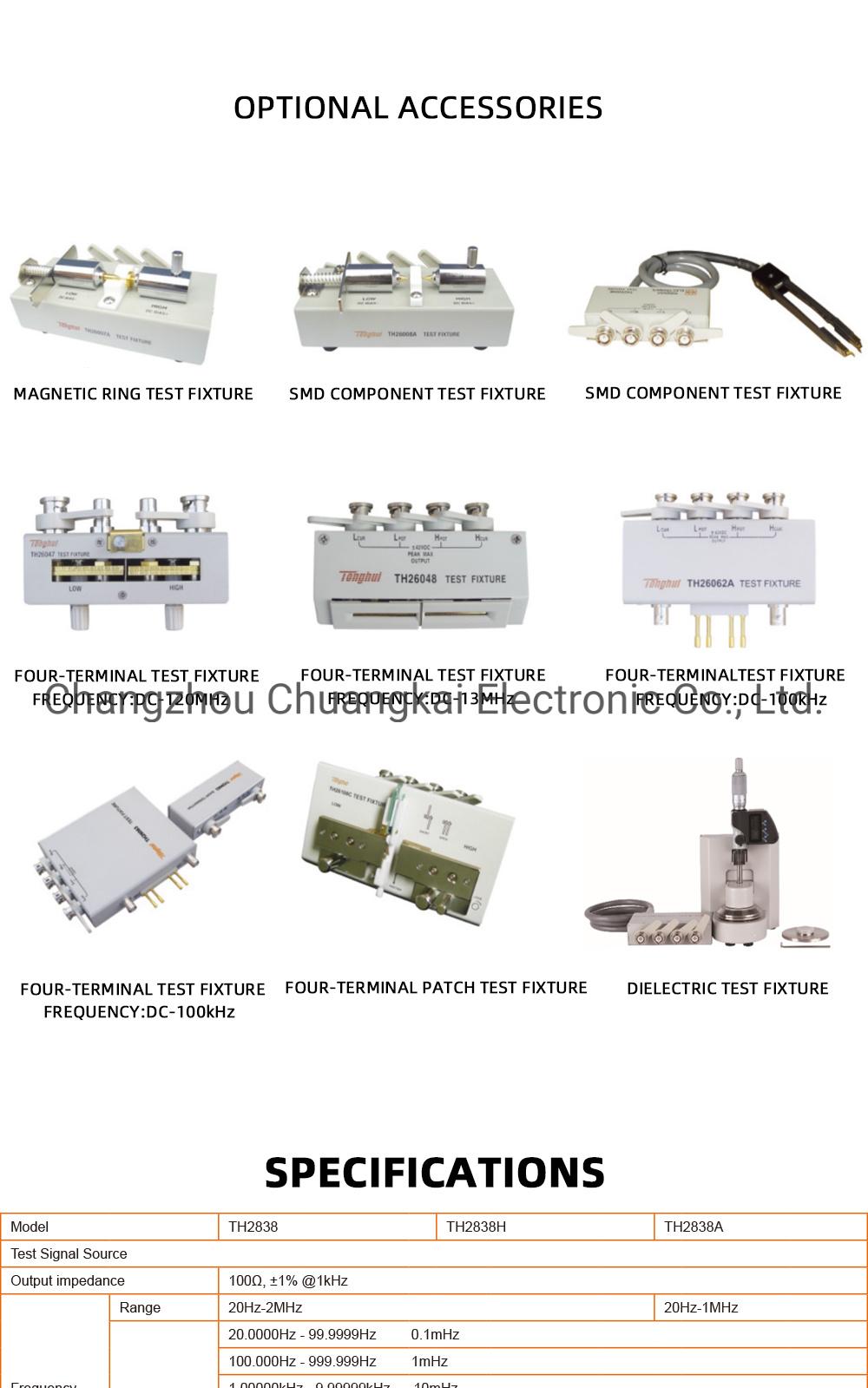

Detailed Photos

Th2838 Rlc Meter 20Hz-2MHz High Frequency Digital Lcr Meter Resistance Meter
