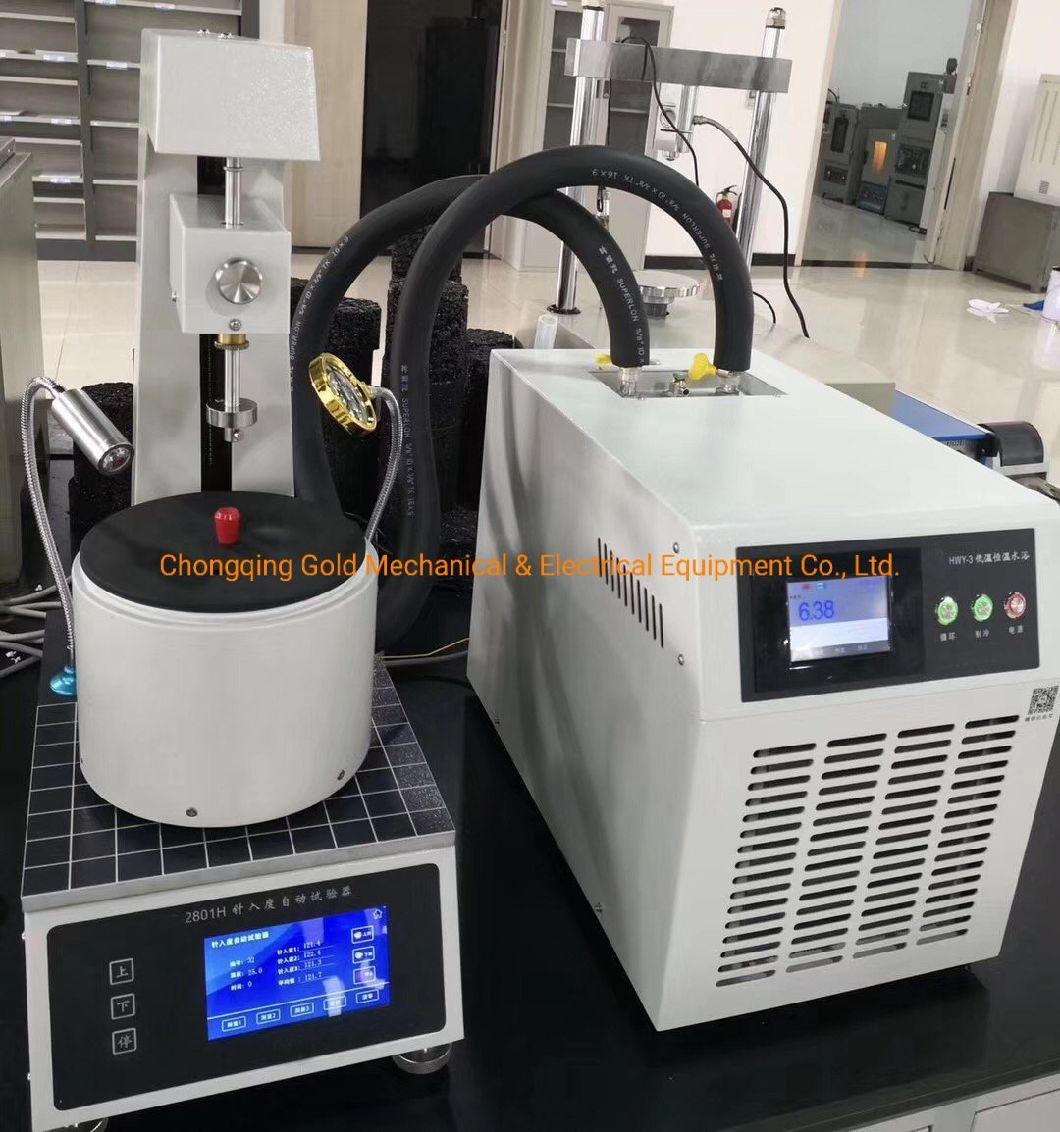

• Model NO.：GD-2801H
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Transport Package：Wooden Case
• Specification：620mm*460mm*355mm
• Trademark：GOLD
• Origin：China
• Production Capacity：200units,Month

1.Measurement range:0 penetration~600 penetrations2. Resolution: 0.1 penetration;3.Timing range: 0s~60 s, and the error is less than ±0.1 s.4. Heating power: 200 W

Data saved:

50 groups

Sample container:

Φ55×H35

Lifting device:

automatic lifting Standard needle:

50mm,2.5±0.05 g

 Net weight:  15kg.Dimension: 260mm×400mm×600mm;(L*W*H)



I. Main technical specifications



1. The measurement accuracy of the instrument can reach to 0.6 penetrations.



2. The new type of penetrometer detection unit and the test repeatability is stable.



3. It adopts high-resolution capacitance touch screen, the information can be clearly displayed.



4. Special "Computer Drawing Software + Data Accurate Reading Technology", it can automatically draw and print the nomogram of asphalt penetration relationship.



5. It adopts new type lifting device,



• Highway petroleum asphalt, polymer modified asphalt, liquid petroleum asphalt distillation or emulsified asphalt distillation residue.Main featurealso can test cone penetrationwith wax standard needleHigh precision digital temperature controllerWith low-temperature thermostatic water
  bath,fit the requirement of low temperature
  test.Digital temperature meter.With low-temperature thermostatic water
  bath, fit the requirement of low temperature
  test.An automatical needle penetration test, and
  draft and print out the relationship
  nomograph of asphalt penetrometer, and
  then calculate and ensure all parameters.Tempe. control



  25ºC±0.1ºC(Note: Environment
  the temperature should be less 20ºC)

   Water bath:(5.0~100.0)ºC, Constant temperature accuracy±0.1ºCMeasurement range (0~600)needle penetration,resolution ratio 0.01mmThermostatic Bath   Hard glass cylinder  Double cycle bathTiming control 5,8,10,12,30,60s 5s, 8s, 10s, 12s, the 30s, 60s can be selected. The bias is within ±0.1s 5s or 60s can be set at will, bias within ±0.1s 5s or 60s can be selected. Bias within±0.1s 0s~60 s, and the error is less than ±0.1 s.StandardASTM D5,ASTM D217ASTM D1321ASTM D5ASTM D5ASTM D5

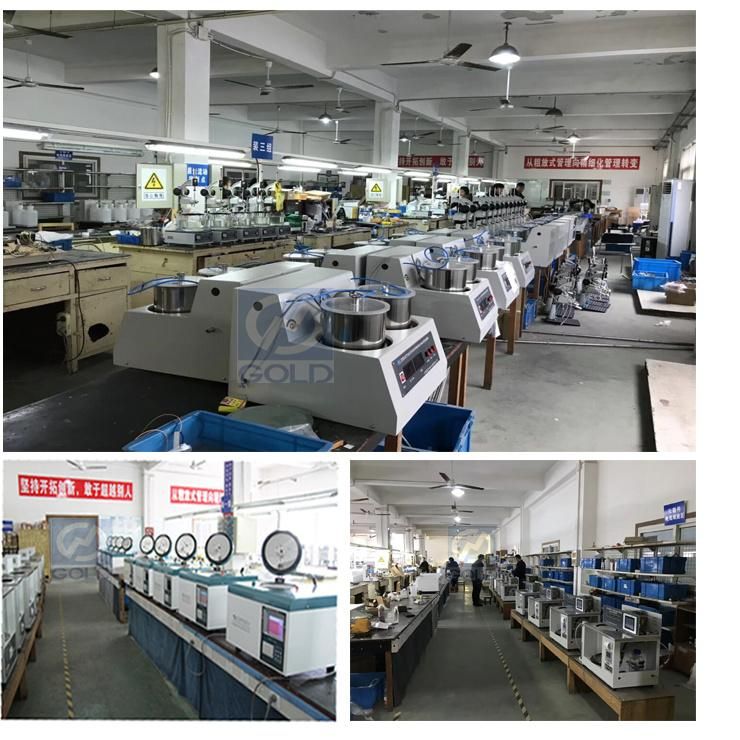

  Workshop

  Chongqing Gold Mechanical&Electrical Equipment Co., Ltd is a professional manufacturer of Petroleum Products test kits and

  electrical testing equipment in China. Our products are sold to most countries in the world and they are highly popular because of our good

  quality and after-sale service.




  At present, there are more than 150 employees, of whom more than 70% are technical personnel with a college

  degree or above. With strong technical force and strong development, new products have been launched continuously.


  Exhibition




  We have developed sales channels in many countries such as the UAE, Saudi Arabia, Iran, Malaysia, Thailand, Pakistan,

  India, Germany, Belgium, the USA, Mexico, Kenya, Nigeria, South Africa, and other countries worldwide. And we have

  gained strong advantage and a high reputation in the international market.

  After several years' development, our products have become highly intelligent and wide coverage.
  And our company has become one of the leading manufacturers of petroleum testing instrument and electrical testing

  instrument.


  Packing

  Goods are packed in veneer case, which is firm and safe for overseas shipment.
