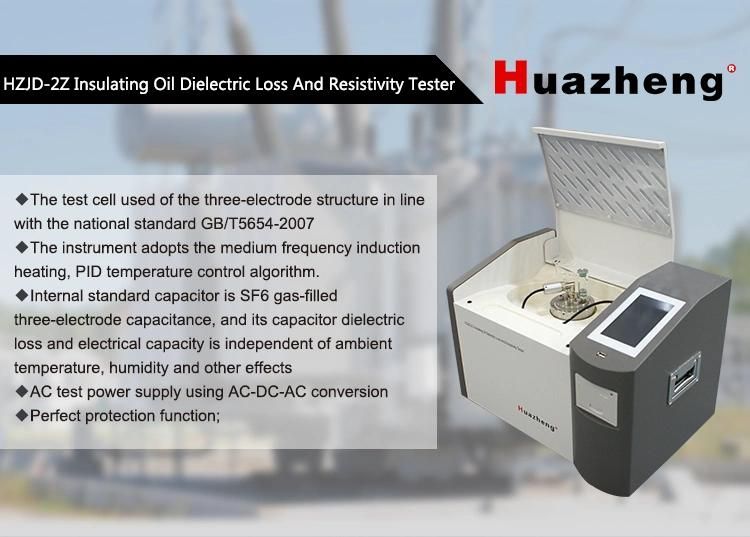

Dielectric Loss Dissipation Factor Insulating Oil Tangent Delta Test Instrument
Huazheng Electric Manufacturing (Baoding) Co., Ltd.- Warranty：1 Year
- Type：Oil Tangent Delta Test Instrument
Base Info
- Model NO.：HZJD-2Z
- Maxcapacity：100kv
- Accuracy Grade：0.5
- Load Way：Mechanical Load
- Loading Method：Static Load
- Display：Digital
- Control：Manual Control
- Weight：0-100Kg
- Power Source：AC220V
- Oil Cylinder Position：Top
- Voltage Supply：AC 220V±10%
- Power Frequency：50Hz,60Hz ±1%
- Electric Capacity Range：5PF~200PF
- Relative Permittivity Range：1.000~30.000
- Test Voltage AC(RMS)：500~2200V Continuous
- Accurancy：0.001%
- Test Voltage AC(RMS：500~2200V
- Test Voltage DC：0~500V Continuously
- Power Consumption：100W
- Aftersales Service：Yes

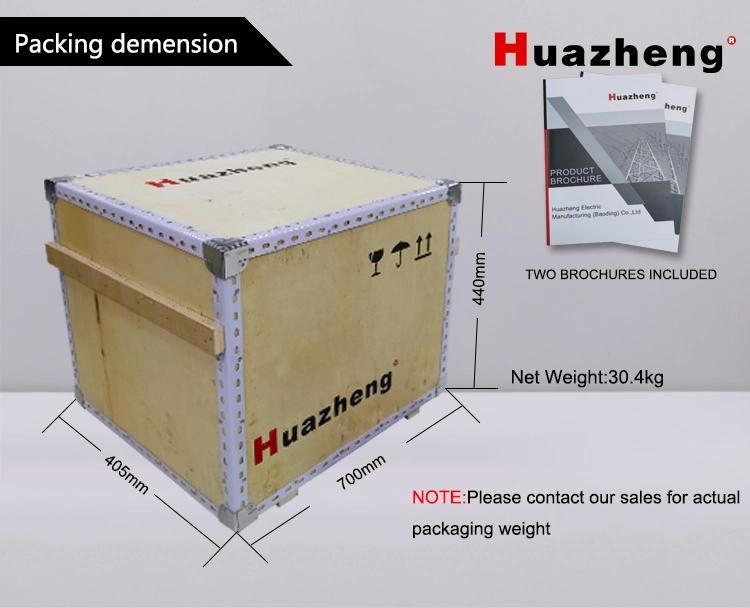

- Transport Package：Wooden Box with Foam Inside
- Specification：CE,ISO,IEC
- Trademark：HuaZheng
- Origin：Hebei, China
- HS Code：9030332000
- Production Capacity：100 PCS,Month
- Package size per unit product：70.00cm * 41.00cm * 44.00cm
- Gross weight per unit product：31.000kg
Description
22kg

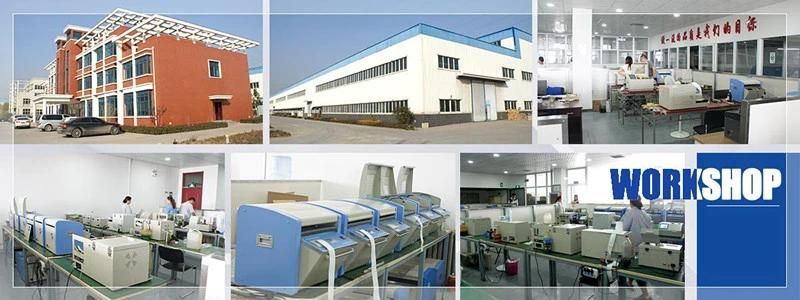

V.Company Information
HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.

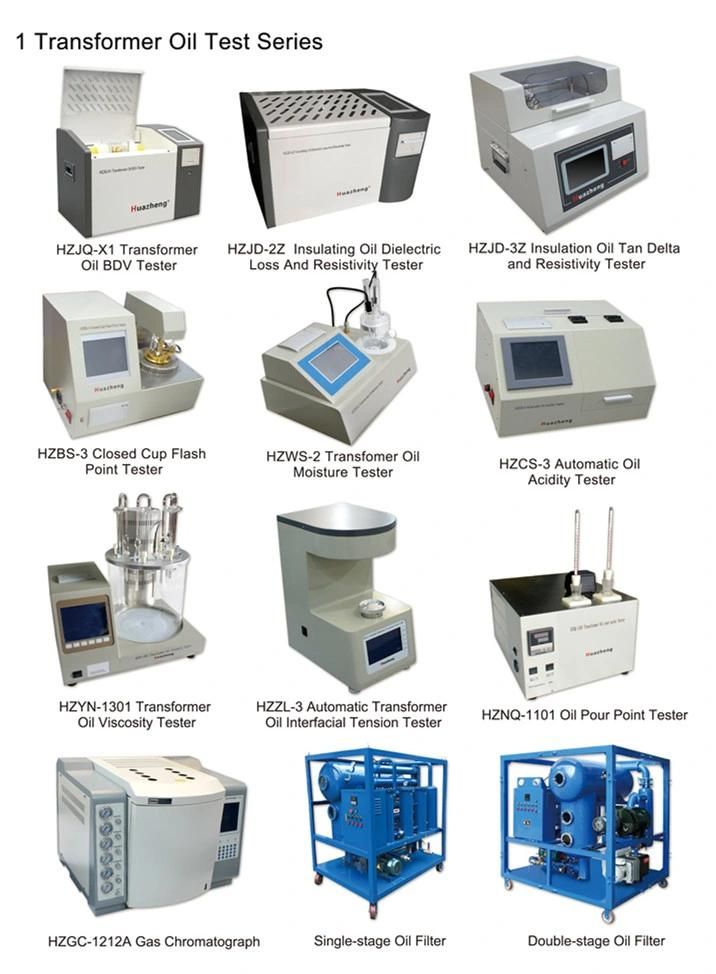

Our main products are Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.
