Automatic Cardboard Burst Strength Tester

Dongguan Haida Equipment Co., Ltd.
  • Warranty：1 Year
  • Type：Strength Testing Machine
  • Maxcapacity：<1000KN
  • Accuracy Grade：0.5
  • Load Way：Electronic Load
  • Loading Method：Dynamic Load

Base Info

  • Model NO.：HD-A513-B
  • Display：Digital
  • Control：Computer Control
  • Weight：0-100Kg
  • Power Source：AC220V
  • Capacity (Optional)：High Pressure 0~100 Kg, Cm^2 (0.1kg,Cm^2)
  • Unit (Sitchable)：Kpa, Psi, Kg,Cm^2
  • Accuracy：± 0.5%
  • Pressure Range：250~5600kpa
  • Speed of Compression：High Pressure 170± 10ml,Min
  • Specimen Clamping Force：>690kpa
  • Power Capacity：120W
  • Indicating Method：Digital
  • Opening in Upper Clamp：31.5 ± 0.05 mm Diameter
  • Operation Method：Automatic
  • Transport Package：Strong Wooden Case
  • Specification：ASTM-D2210 Tappi T403 ISO2759-2001
  • Trademark：Haida
  • Origin：China
  • HS Code：9024109000
  • Production Capacity：150 Sets Per Month

Description

ModelHD-A513-B Burst Strength Test MachineCapacity  (Optional)High Pressure 0~100 Kg/ cm^2 (0.1kg/cm^2)Unit (sitchable)Kpa, psi, kg/cm^2Accuracy± 0.5%Pressure Range250~5600kpaSpeed of CompressionHigh Pressure 170± 10ml/minSpecimen Clamping Force>690kpaOil85% Glycerin; 15% Distilled Water Sensing methodPressure TransmitterIndicating MethodDigitalDisplayLCDMaterial of the RingStainless Steel SUS304Opening in Upper Clamp31.5 ± 0.05 mm DiameterOpening in Lower Clamp31.5 ± 0.05 mm DiameterMotorAnti-vibration Motor 1/4 HPOperation MethodAutomaticDimension (L×W×H)445×425×525 mmWeight Approx. 70 kgPowerAC220± 10%, 50 HzPower Capacity120WStandard ConfigurationRubber Membrane 1 piece, Spanner 1 set, Correction Shim 10 sheets, Glycerin 1 bottleOptional ConfigurationPrinterStandardJIS-L1004, L1018, L1031, K6328, P8131, P8112
ASTM-D2210; TAPPIT403TS-63
ISO2759-2001; GB/T1539

(The table parameters for the company Standard Model parameters, we support customer customization parameters)

Design standard: JIS-L1004,L1018,L1031,K6328,P8131,P8112 ASTM-D2210,TAPPI T403,ISO2759-2001,GB/T1539


The Characters of Paperboard Burst Strength Test Machine:


1. It is applicable to test bursting strength for paperboard.

2. Advanced micro computer controller and digital processor ensure result precise.

3. Printer facility and fully detailed test reports.

4. Results of the tests are stored for viewing or for printing out as required.

5. User-friendly menu interface.

6. Power protection ensure automatic record when power cut off.

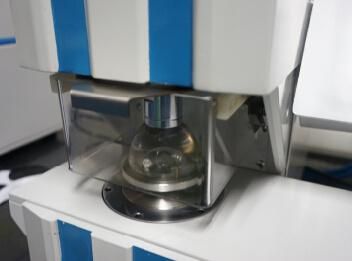

Paperboard Burst Strength Test Machine view:

Automatic Cardboard Burst Strength Tester

The introduction of Haida
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.
