XHGX507X  Cable Pipeline Locator

1. The signal transmission connection mode of the transmitter: direct connection method, coupling method, induction method.
2. Receiver working mode: wave peak method, wave valley method, step voltage method.

Description
XHGX507 intelligent cable fault tester has been used by thousands of users in the power cable test has a high reputation in the field. The company used the latest concepts developed XHGX507 pipeline locator, especially for cable-to-ground insulation failure of fast and accurate positioning, (charged) to find the path, depth positioning.

Main Function
All-digital positioning system, and show a clear, reliable positioning
Light weight, easy to use, quick to find
Built-in rechargeable battery, the test without electricity
Depth with cable shows, current shows
LCD graphic display, without earphone test
Built-in ohmmeter measure the resistance of the cable loop
Cable locating and fault-finding with two functions
You can find up-to-ground insulation failure 2MΩ
Adapt to night-time operation with backlight
Fully automatic continuous sampling, never miss any discharge waveform;
Test method: flashover method, low pressure pulse method, multiple waveform analysis method
Technical data

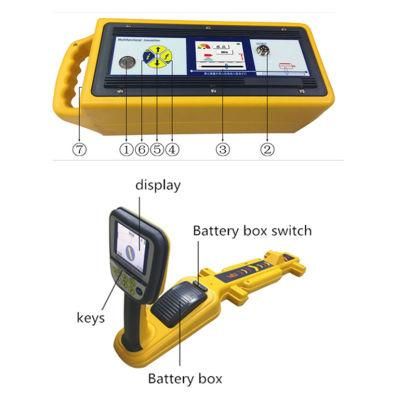

Receiver

• Operating frequency: low frequency (815Hz), intermediate frequency (8kHz), high frequency (33 kHz), radio frequency (83 kHz), 50Hz
• Antenna mode: valley method (zero mode), peak method (peak mode) and step voltage method (A-frame)
• Sound indication: signal intensity changes with the FM tone
• Current indication: Display the current value of the effective cable under test (unit: mA)
• Operating temperature: -10 ° C - +55 ° C
• Battery Type: 7.4V lithium battery
• Battery indicator: graphics
• Battery life: continuous > 8 hours: stopped working > 16 hours
• Size: 70cm × 20cm × 11cm
• Weight: 3 kg (with battery)
• Signal strength, said: ladder, the number range 0 - 999
• Gain Control: manually adjust the dynamic range of 100db
• Detection depth: Maximum not less than 2.5m probe
• Maximum detection range: direct law insulated cable up to 15km
• Depth measurement: according to the depth of three key figures, the maximum depth can be measured up to 2.5-6 m according to the site environment.
• Accuracy: LF: ± (1-5) % ≤ 2. 5 meter  RF: ± (5-12)% ≤ 2 .5 meter

Technical data
Transmitter

• Operating frequency: low frequency (815Hz), intermediate frequency (8kHz), high frequency (33 kHz), radio frequency (83 kHz), 50Hz
• Mode: direct method, coupling method, inductive method
• Matched load: 5 ohms -3000 ohms
• Impedance display: five digits
• Thermal over-current: automatic protection
• Power output: low block, mid-range, high gear
• Battery Type:7.4V lithium battery
• Battery life: working 4-8 hours depending on use frequency, output power. Intermittent work 6-10 hours depending on the frequency of use, output power
• Operating temperature: -10 ° C-55 ° C
• Dimensions: 16cm × 16cm × 39cm
• Weight: 4 kg (with battery
