• Model NO.：SYD-0620A
• HS Code：90248000
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. SYD-0620A HS Code 90248000 Production Capacity 100 Sets/Month

Product Description

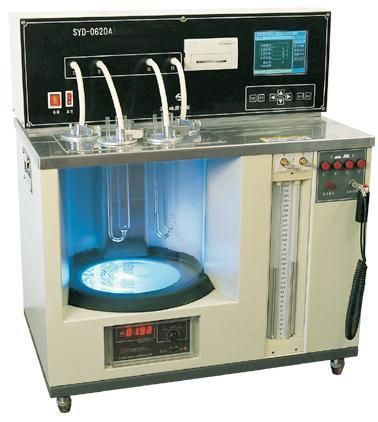

Model SYD-0620A Petroleum Asphalt Capillary Method Dynamic Viscometers

 The instrument is suitable for determination of petroleum asphalt dynamic viscosity by vacuum decompression capillary viscometer method, unless otherwise noted, the test temperature is 60 ºC, vacuum degree is 300mmHg. The instrument is also suitable for other substances by vacuum capillary method that the test temperature is 60 ºC, vacuum degree is 300mmHg (-40Kpa), viscosity is 0.0036-20000Pa.s. The vacuum degree and test temperature of the instrument can be set separately, but also suitable for other non-standard test.




Model SYD-0620A Technical Parameters
Temperature range: Ambiten-100ºC
Temperature accuracy: ± 0.01ºC
Pressure range: 40Kpa
Timing range: 0-999.9S
Timing accuracy: 0.1S
voltage (power): 220V, 1000W
Dimensions: 60X50X60 (cm)
Weight: 50kg
Model SYD-0620A Main Features(1) Automatic temperature and vacuum degree control, high controlling precision.
(2) High resolution LCD display, temperature and vacuum degree can be calibrated by key operation, and automatically save the calibration data.
(3) Capillary parameters can be preset and stored. The test time and test results are automatically calculated and the historical experiment data can be saved
(4) Equip with high-precision timer, control through manual button.
(5) Have the function of storing and printing the calculation result.
