• Model NO.：HTPV-15
• Display：Digital
• Control：PLC Control
• Weight：500-1000Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Delivery：30days
• Transport Package：Wooden Case
• Specification：IEC 61215-2005 and ED. 1, IEC 61646-2008
• Trademark：HOTOTECH
• Origin：Guangdong, China
• Production Capacity：100,Month

Basic Info.

Model NO. HTPV-15 Display Digital Control PLC Control Weight 500-1000Kg Power Source AC220V Oil Cylinder Position Under Delivery 30days Transport Package Wooden Case Specification IEC 61215-2005 and ED. 1, IEC 61646-2008 Trademark HOTOTECH Origin Guangdong, China Production Capacity 100/Month

Product Description

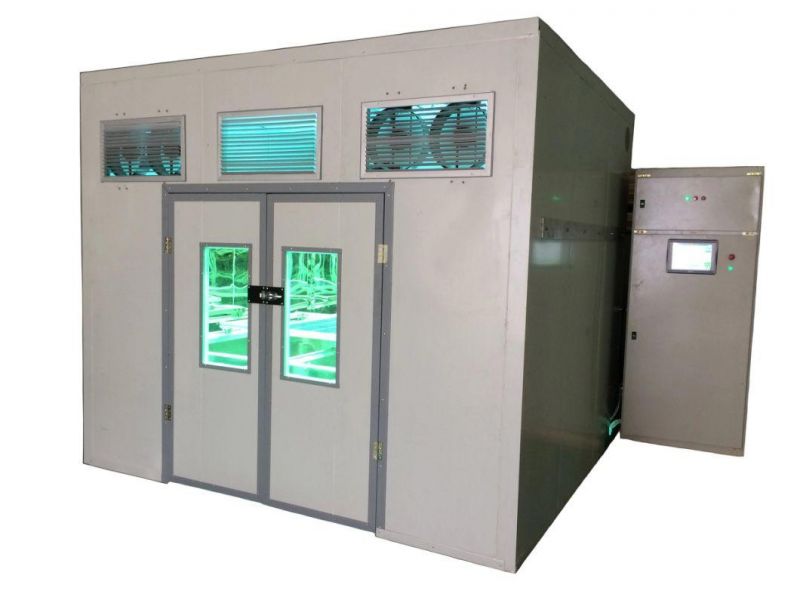

IEC61215  IEC61646   Solar Panel UV Preconditioning Testing Machine / Testing EquipmentSpecification:

Standard:According to IEC61215, IEC61646 standard requirement

Purpose:to precondition the module with ultra-violet (UV) radiation before the thermal cycle/humidity freeze tests to identify those materials and adhesive bonds that are susceptible to UV degradation

Technical specifications:

1,Use material:can completely obstruct ultraviolet rays,tightness,good thermal insulation's high quality materials

2,Machine UV total irradiation area:more than 2000mm×2000mm,meanwhile satisfy 2 pcs module (2m×1m)

3,Light source life :system use Xenon lamp single lamp life is 1000 hours , delivery offer one set of spare part, use the life at above 2000 hours

4,Single lamp UVA and UVA relative energy rate:UVB approx occupy total energy 3%~10%

5,Irradiation strength:wavelength 280nm~385nm's irradiation strength can reach about 100W/m²,promise the test cycle reduce as far as possible

6,Irradiance uniformity:be better than ±15%

7,Real-time monitor and show UVA and UVB strength

8,UVA (320nm~385nm), UVB(280~320nm) Each one of the fiber optic probes

9,Module surface temperature:60ºC±5ºC

10,Temperature resolution:0.1ºC

11,Ozone: almost no ozone is produced

12,Light ways :upper light, module test plane vertical light source

13,Touch screen operate and real-time monitor , when reached the set value will automatic cut off the light source

14,Real-time figure show module surface temperature, measurement accurate±0.1ºC
