Solar PV Module Cut Susceptibility Testing Machine / Testing Equipment
Dongguan Hong Tu Instrument Co., Ltd.- Size Approx：1.4m X 0.65m
- The Blade Radius of Fixture：0.115mm
- Display：Touch Screen
- Use：PV Module Testing
- The Materials of Fixture：The Materials of Fixture:
- Fixture Suffer Gravity：8.9n
Base Info
- Model NO.：HTPV-02
- Standard：IEC61730-2 , UL1703
- The Thickness of Fixture：0.64mm
- Fixture Speed：150mm,S
- Transport Package：Wooden Case
- Specification：IEC61730-2, UL1703
- Trademark：HOTOTECH
- Origin：Dongguan, Guangdong Province
- HS Code：9031809090
- Production Capacity：100 Sets , Month
Description
Basic Info.
Model NO. HTPV-02 Standard IEC61730-2 / UL1703 The Thickness of Fixture 0.64mm Fixture Speed 150mm/S Transport Package Wooden Case Specification IEC61730-2, UL1703 Trademark HOTOTECH Origin Dongguan, Guangdong Province HS Code 9031809090 Production Capacity 100 Sets / MonthProduct Description
PV Module Cut Susceptibility Testing Equipmentpurpose
It's to determine whether any front and rear surfaces of the module made of polymeric materials are capable of withstanding routine handing during installation and maintenacne without exposing personnel to the danger of electric shock . this test is derived from ANSI/UL1703
Apparatus
Designed to draw a defined shpaed object. A 0.64mm±0.05mm thick carbon steel blade (for example the back of a hacksaw blade) over the surface of the module with and applied force of 8.9N±0.05N
procedure
The procedure is as follow:
1.Position the module horizontally with the front surface facing upward
2.The test fixture is to be placed on the surface for 1 min and then draw across the surface of the module at a speed of (150±30)mm/s
Repeat a) and b) for the rear surface of the module

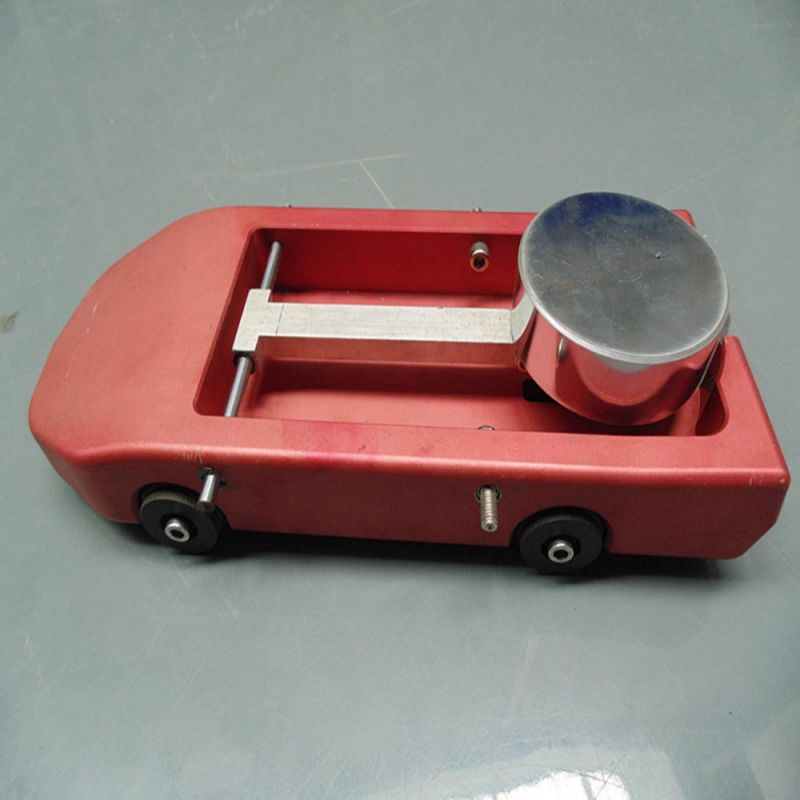

Product images show
Customers with us
Package show
