• Model NO.：STYD-7
• Loading Method：No
• Display：Digital
• Control：Digital Display
• Weight：175kg
• Power Source：AC220V
• Oil Cylinder Position：No
• Product Name：Styd-7 Ductilometer with Colling System
• Temperature Control Rang：5-50c
• Tension Speed：10~50mm,Min Adjustable, Accuracy: 1mm
• Tension Range：0~300n, Accuracy: 1n, Display Resolution: 0.1n
• Heating Power：3200W
• Refrigerator Power：800W
• Transport Package：Wooden Case
• Specification：1.31CBM
• Trademark：SHTG
• Origin：China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. STYD-7 Loading Method No Display Digital Control Digital Display Weight 175kg Power Source AC220V Oil Cylinder Position No Product Name Styd-7 Ductilometer with Colling System Temperature Control Rang 5-50c Tension Speed 10~50mm/Min Adjustable, Accuracy: 1mm Tension Range 0~300n, Accuracy: 1n, Display Resolution: 0.1n Heating Power 3200W Refrigerator Power 800W Transport Package Wooden Case Specification 1.31CBM Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

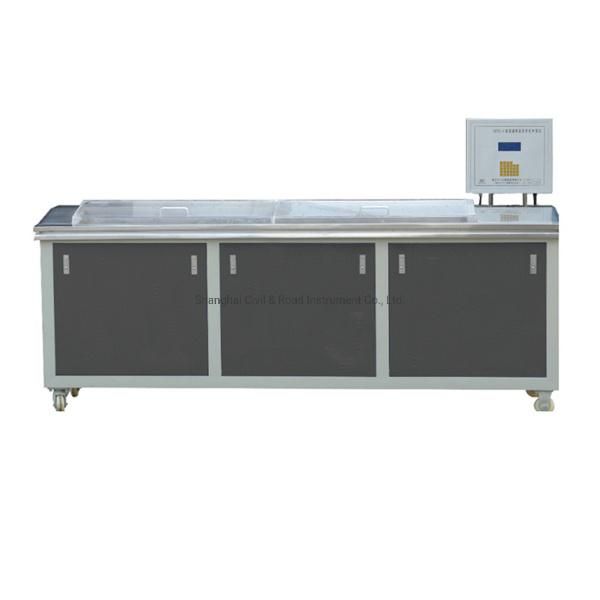

STYD-7 Ductilometer with colling system


Purpose:
The instrument is designed and made as per the National Standard GB/T 4508 "Test Methods for Ductility of Petroleum Asphalt", and T0605 "Asphalt Ductility Test" in the Industry Standard JTJ052 Specification and Test Methods of Bitumen and Bituminous Mixture for Highway Engineering. It is suitable to determine the length of petroleum asphalt when it is dragged to broken at certain speed under stipulated condition and temperature. It is indicated by cm.

Technical characteristics
1. It integrates achievements of domestic and overseas design concepts on ductility tester. It is advanced and delicate.
2. There is no thread rod, guide rail and other device in the test trough, so it is convenient to install test sample.
3. Equipped with newly designed driving parts, it is stable and synchronous without shake during dragging procedure. The dragging speed is uniform and the ductility is accurate.
4. It can make determination for ductility of 3 pieces of samples and dragging force of 2 pieces of samples at the same time.
5. so it is with high temperature controlling accuracy.
6. It uses a large LCD to show temperature, ductility, dragging force, and other parameters clearly. The interface is friendly.
7. Tt can digital display test data (ductility of each sample, average value of ductility, the maximum dragging force, and dragging force change curve automatically.
Parameters:

Temperature control rang	5-50ºC
Tension speed	10~50mm/min adjustable, accuracy: ±1mm
Tension range	0~300N, accuracy: ±1N, Display Resolution: 0.1N
Heating power	3200W
Refrigerator power	800W
