• Model NO.：HD-R811-1
• Control：Computer Control
• Weight：500-1000Kg
• Power Source：AC220V
• Temperature Measurement Range：Room Temperature-200 ºC
• Temperature Measurement Accuracy：100~200 ºC,≤ ± 0.3 ºC
• Equipment Weight：Approx. 250kg
• Dimensions：540 mm× 560 mm× 1120mm
• Power：600W
• Transport Package：Strong Plywood Case
• Specification：ASTM, ISO, GB standard
• Trademark：Haida
• Origin：Dongguan, China
• HS Code：9024109000
• Production Capacity：150 Sets Per Month

Basic Info.

Model NO. HD-R811-1 Control Computer Control Weight 500-1000Kg Power Source AC220V Temperature Measurement Range Room Temperature-200 ºC Temperature Measurement Accuracy 100~200 ºC,≤ ± 0.3 ºC Equipment Weight Approx. 250kg Dimensions 540 mm× 560 mm× 1120mm Power 600W Transport Package Strong Plywood Case Specification ASTM, ISO, GB standard Trademark Haida Origin Dongguan, China HS Code 9024109000 Production Capacity 150 Sets Per Month

Product Description

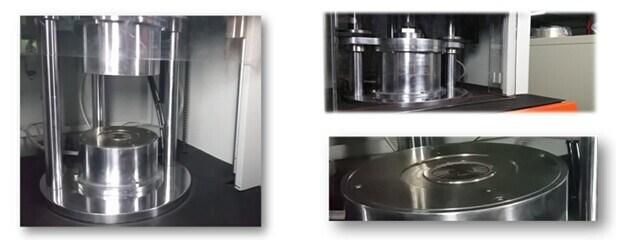

Rubber Rheometer Moving Die Rheometer Lab Tester

Product Introduction:

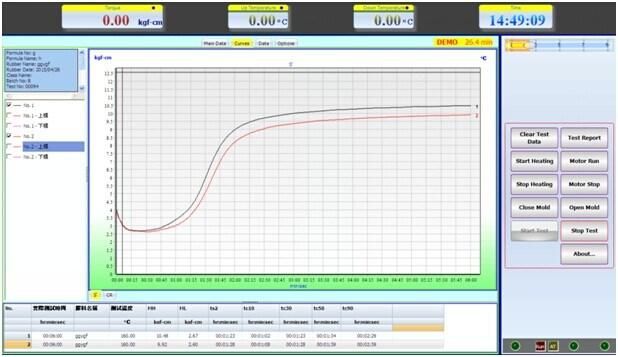

Rubber rheometer  is the most widely used instrument in the rubber processing industry to control the quality of the rubber, rapid inspection and basic research on rubber. It provides accurate data for the optimal formula combination of rubber, and can accurately measure the scorch time, positive vulcanization time, vulcanization Index and parameters such as maximum and minimum torque.

Product Features:
1. High temperature control precision and wide range. (± 0.3 ºC)
2. Clock programming function. (Setting and modification time)
3. Advanced technology switching power supply, wide voltage range.
4. Imported integrated circuits and control components.
5. All Chinese and English display.
6. Comply with the requirements of GB / T16584 (Testing the vulcanization characteristics of rubber with a rotorless vulcanizer) and ISO6502.

Product Advantage:
1. The performance is more stable and more accurate.
2. Low price, good quality and complete functions.
3. This rotorless vulcanization instrument is the best instrument for testing rubber properties.

Standard Parameters:

Item	Parameter
Equipment alias	Sulphurometer,rotorless sulphur transformer, rotorless vulcanization test instrument
Executive standard	ASTMD5289-95 ISO6502-1999 (E) GB / T16584-1996
Temperature measurement range	Room temperature-200 ºC
Temperature measurement accuracy	100~200 ºC,≤ ± 0.3 ºC
Temperature stability	100~200 ºC,≤ ± 0.3 ºC
Setting range	0--200 ºC; setting minimum unit:0.1 ºC
Temperature display range	0--200 ºC; display resolution:0.1 ºC
Setting time range	0-200 minutes; setting minimum unit:1 minute
Automatic range switching	automatically increase according to actual torque
Power supply	50HZ, ~ 220V ± 10%, 50 ± 1Hz, must be well grounded
Compressed air	0.4Mpa (4KG) controlled by pneumatic regulating valve
Swing frequency	100 times / minute (about 1.7HZ)
Ambient temperature	normal temperature -40 ºC, relative humidity less than 80%, no corrosive gas in the air
Quality	about 250kg
Power	600W
Dimensions	540 mm× 560 mm× 1120mm

Company Introduction:
Haida International Instrument Co., Ltd. is involved in the fields of environment, plastics and rubber, paper packaging, printing, adhesive tape, hardware and electronics, toys, furniture, kitchen utensils, "shoes, baby products, etc., providing precision quality instruments, is a focus Years of design and production experience, and product development, production, sales and technical services in an integrated high-tech enterprise.






After-service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.

Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2. Excellent After sale Service:
18 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.
3. Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4. Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
