• Model NO.：GW-032
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：Static Load
• Display：Digital
• Control：Manual Control
• Weight：100-500Kg
• Power Source：AC220V
• Oil Cylinder Position：Electric Control
• Packaging：Wooden Case
• Export Markets：Global
• Model No：Gw-032
• Air Pressure：1+,-0.01 Kgf,Cm2
• Spray Volume：1~2ml,80cm2,H
• Testing Room Humidity：85% Above
• pH：6.5-7.2, 3.0-3.2
• Power：AC 220V, 50Hz
• Transport Package：Wooden Case
• Specification：112*71*900cm
• Trademark：Great Win
• Origin：China
• HS Code：9024800000
• Production Capacity：500 Sets,Year

Salt test (NSS ACSS)35±1  degree / Corrosion Test (CASS)50±1 degreePressure barrel temperatureSalt test (NSS ACSS)47±1 degree / Corrosion Test (CASS)63±1 degreeBrine temperature35±1 degree or 50±1 degreeTesting room Capacity108L270L480LBrine tank capacity15L25L40LSalt concentrationThe concentration of sodium chloride 5% or the 5% concentration of sodium chloride add 0.26g per liter of copper chloride (CuCl2 2H2O)Air pressure1.00±0.01kgf/cm2Spray volume1.0~2.0ml/80cm2/h (working at least 16 hours, and then take the average)Testing room relative humidity85% abovePH6.5~7.2  3.0~3.2Spray formProgrammable spray (Including continuous and intermittent spray)powerAC220V1Φ10AAC220V1Φ15AAC220V1Φ20A

Brief introduction:

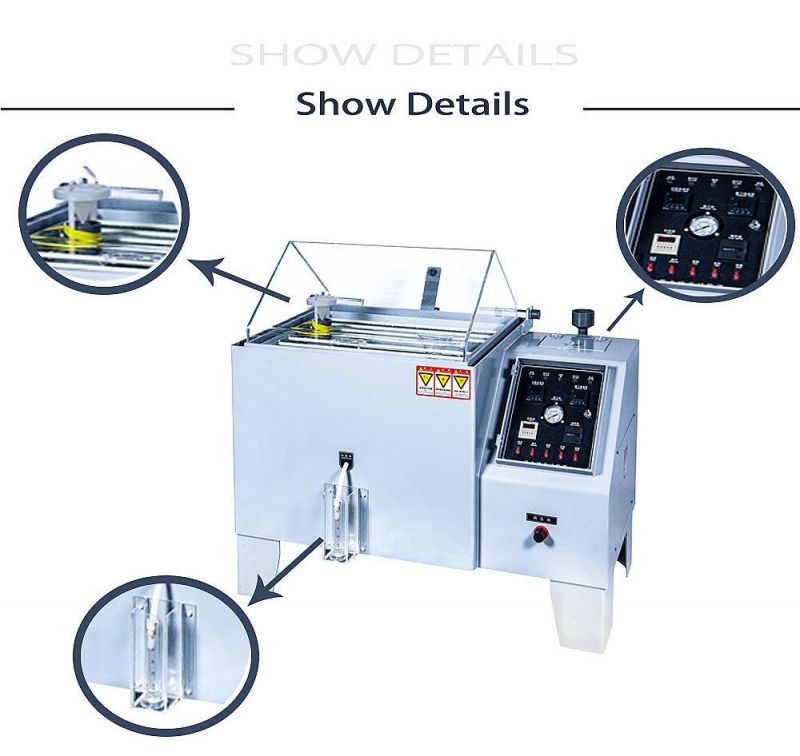

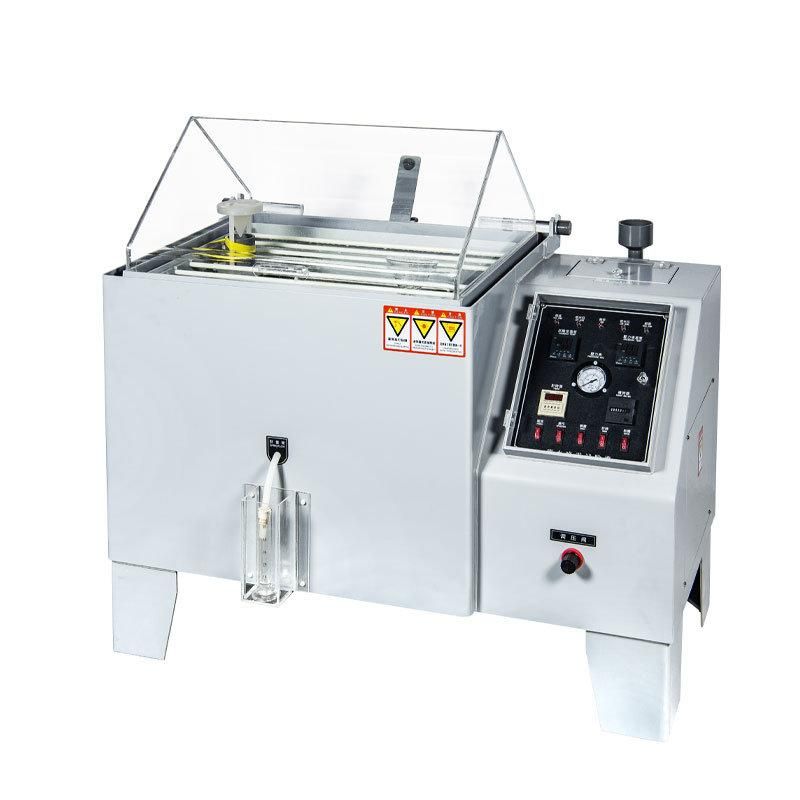

This tester is used to test the anti-erosion quality of the surface of all materials after the rustproof of painting, coating, electroplating, anoding and rustproof greasing.

Standard for:
ISO-9227, ASTM-B117, JIS-D0201, H8502, H8610, Z2371, GB/T10125
Attached accessories:
Two bottle of NaCl
one Pcs 2000ML  glass beaker






What about the product quality?
For our products, each instrument must be carried out 100% quality calibration and test when delivery goods. With CE certificate, we are very confident in our products, and we will pack them with safety wooden case to protect the machine when transport oversea.

What about usage of the machine?
We will also give your professional guidance(Product operating manual and video), each products comes with a USB flash drive which have all the details.

What about warranty?
Guarantee one years( if the parts damage within one year, we can replace the part for free)
If customer need any technical support, we can help them solve their problem through email, video meeting. We also can provide door to door service, but customer need to bear the travel fees.

What about standards support?
We are strictly following different international standards such as EN, ISO, ASTM, AATC, JIS, GB ect, and had been recognized by SATRA, CSA international standard agency.
