TEREK company has more than eighteen years of hydraulic and pneumatic engineering experience in the design and manufacture of air driven liquid pumps. Continuous investment in new machinery and advanced technology imported keeps TEREK at the forefront of the field.

Computer controlled CNG Vehicle Gas Leak Test Machine System .
Accurate, visualized
Reliable, safe operation
Max test pressure: 32MPa
Gas leak test machine adopts compressed air as the driven source and the air driven gas boosters as the booster system and are provided with operating pressure from 0.3 to 32Mpa.
To operate this system, the manual regulator valve has to be fitted on the machine so that it is capable for ultimate output pressure by adjusting the driving air pressure through it.
The gas boosters, pressure gauges as well as all accessories will be mounted into the closed cabinet in a compact and space saving manner.
It is widely used for the leakage test for CNG vehicle high pressure hose lines

There are two control modes for option: 1. Manual control mode 2.Computer controlled mode

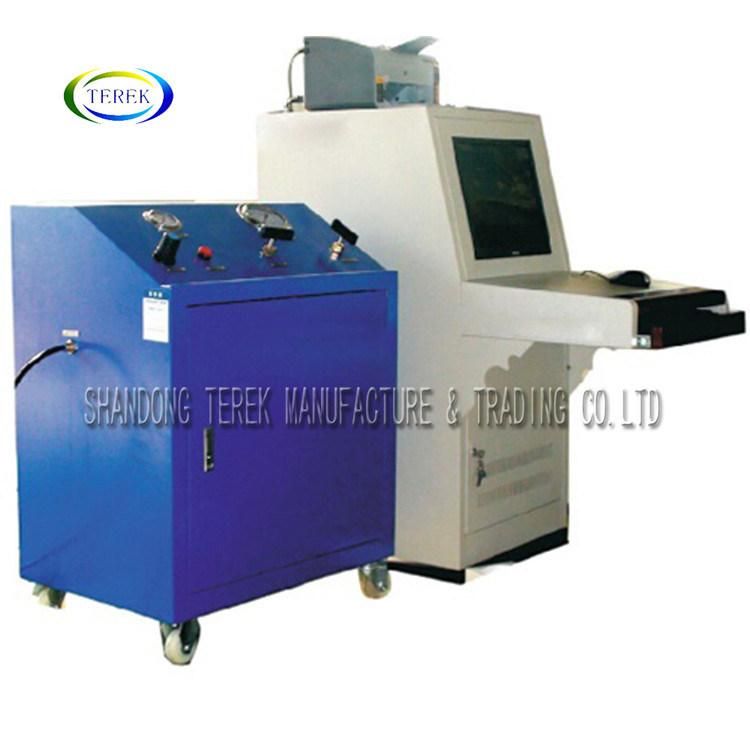

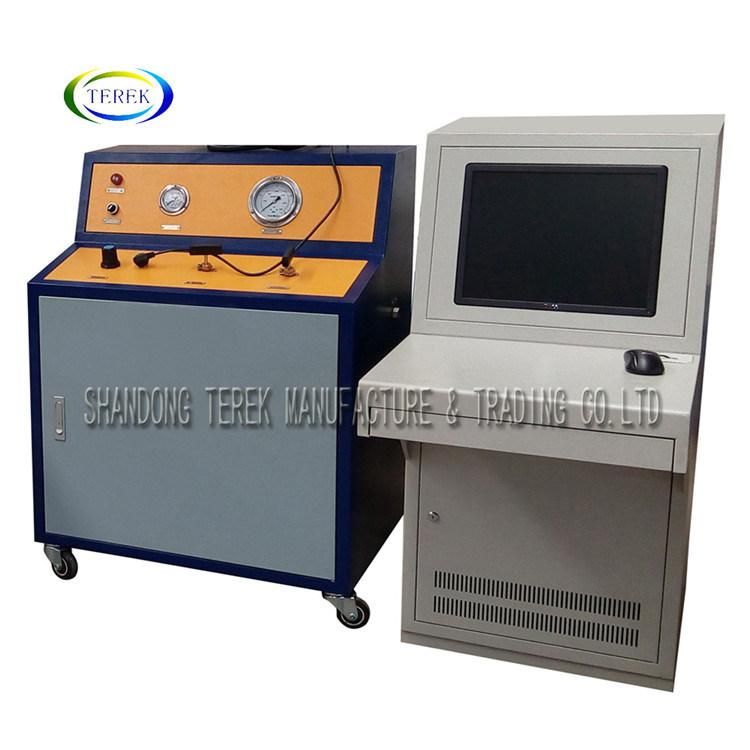

Computer controlled mode leak test machine

Key features and advantages
Compact and rugged construction.
Real-time monitoring and display on LCD with test pressure value as well as test data recorded on high-speed data sampling cards and also available for pressure-time curves printing
Alarming at due time when test pressure decreases to a certain value within pressure-holding period.
Industrial control configuration software are available for programming
Electronic control components in this system include data sampling cards, IPC, PLC, configuration software and printer
Key components, such as gas booster, high pressure air operated valve, high pressure instruments and pipelines are from world top brands to guarantee the safety, reliability and precision of the whole system
Easy installation, maintenance and reliable performance

Applications

Leakage test for CNG vehicle hose lines
High pressure and super high pressure testing for pressure equipment in oil field industries, such as valves, pipelines, pressure vessels, wellheads, wellhead control devices, downhole tools and sealing components
Test tools for research and test institutes

Product parameters

Product name	Computer control Pneumatic gas booster pump tightness leak test equipment.
Model	TSL-GTT-40-PC
Pressure ratio	40:1
Gas booster pump	Two stage booster pump
Medium	CNG Gas
Maximum outlet pressure	320bar  (4640psi)
Common test pressure	200bar(3625psi)
Drive air source pressure	3-8bar.
Power source	TEREK gas booster pump
When adjusting drive pressure 5 bar	The high output pressure is 200bar/2900psi
Pressure sensor range	0-40Mpa (accuracy 0.1bar)
Power supply	AC220V/50HZ
Control Method	Computer automatic control
Data collection	Lab VIEW system,  United States NI company
Test data output	Test curve and print data through printer
Outlet pressure Control unit	Drive air regulator valve
Pressure control accuracy	less than 1%F.S;
Pressure measurement accuracy	0.4 pressure gauge
Valves and piping	High pressure needle valve and stainless steel piping
Equipment Weight	300 KG
Export wooden case Weight	350 KG
Device Configuration	Computer console and Gas booster pump operating station .
Dimension	1000*1100*1500  mm  and 800*600*800 mm
Production time	20-25 days.

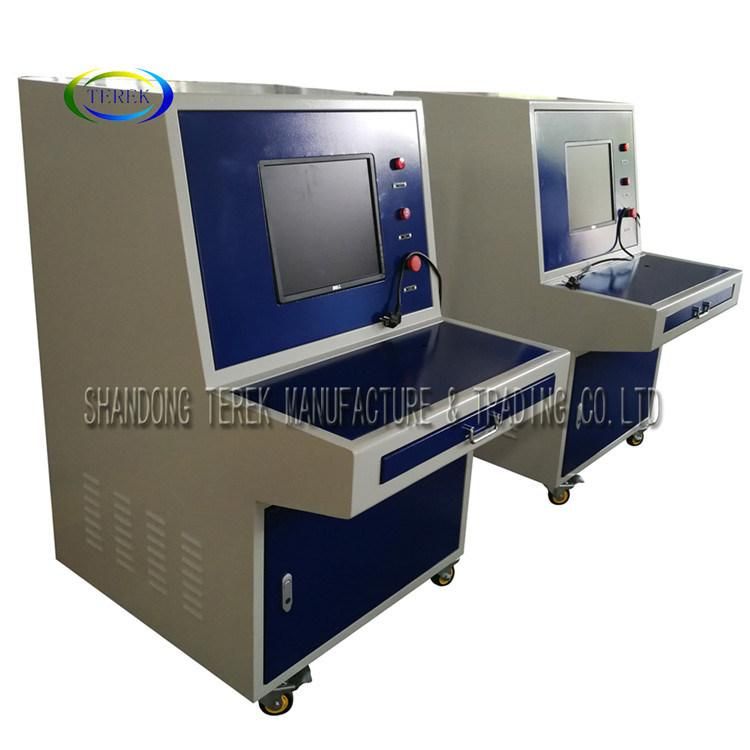

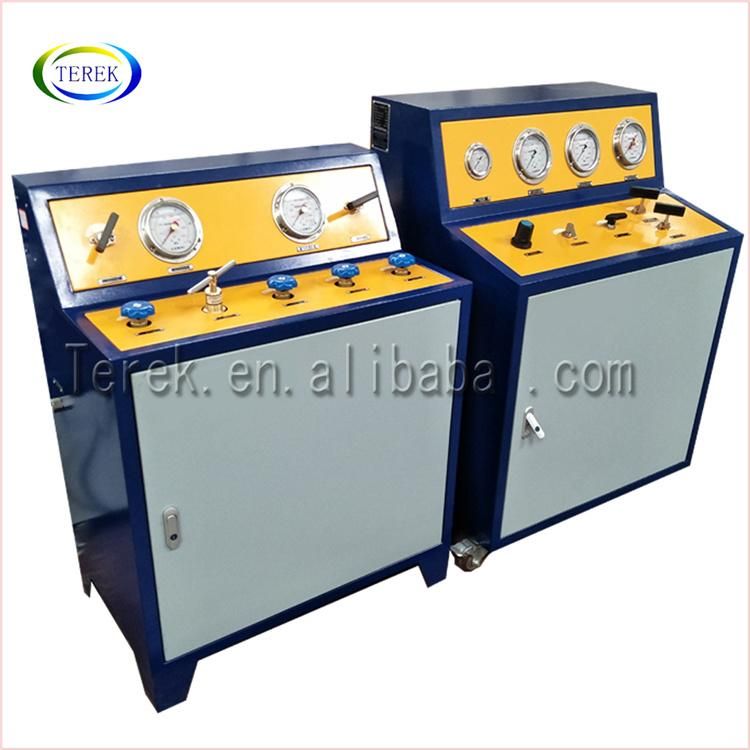

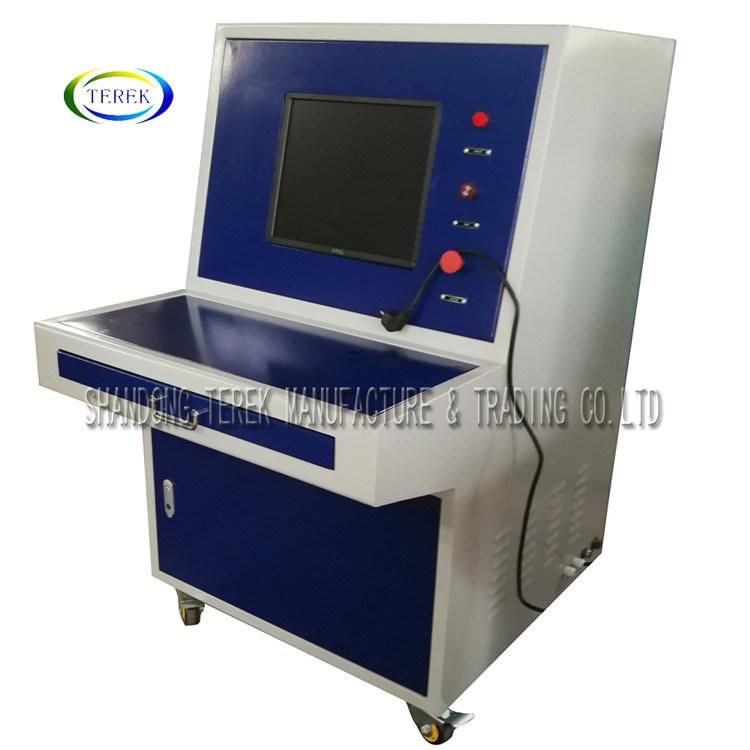

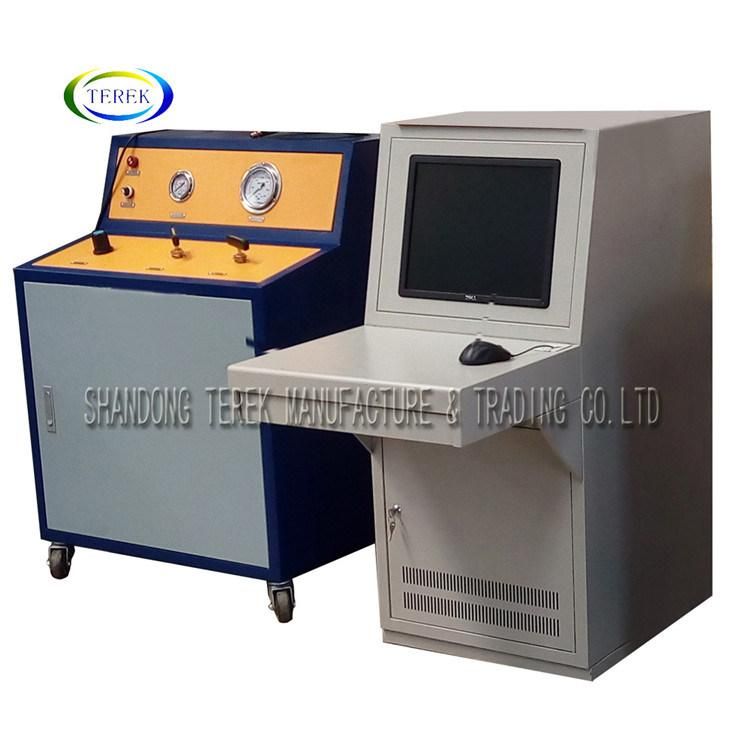

Detailed Images






Product advantages
1.Test medium: Gas
2.Test pressure range:0-320 bar (Test pressure is optional)
3.Drive source: clean compressed air
4.Driven compressed air pressure: 3-8bar (recommended driving pressure ≤8bar)
5.Pressure sensor and high precision test data acquisition card,  Computer controlled data collection and printing test data.

1. Leak Test Method:
3-stage, fully automated:
1-stage pressure supply P = 20 bar
2-stage pressure supply P = 100 bar
3-stage pressure supply P = 200 bar
Test item:
Compressed air
Compressed Air Source:(Pneumatic gas booster pump)
Axial compressor with air supply up to P = 300 bar.
Maximum pressure of compressed air at the exit of the stand: 32 MPa
Flow rate (at an inlet pressure of compressed air 8 bar) 124 L / min.
Power supply: AC 220V.

2. The machine should have the following features:
- Check the tightness of connections and pipelines;
- Check the tightness of gas power systems;
- Check the tightness and performance of the valves;
- Check the tightness of gas solenoid valves;
- Check the tightness and performance of high pressure gear;

3. The entire testing sequence should be automatically controlled by a special computing device (PC).
• Real-time monitoring. Saving the results of each test in the memory of the hard disk.
• Ability to print test results.
• Ability to sound an alarm (loud sound or a special pendulum) when a malfunction is detected during testing.
• Various tools and accessories that meet the different requirements of the test method.
