Single Column Film Elongation Tensile Test/Testing Equipment

Dongguan Haida Equipment Co., Ltd.
  • After-sales Service：1 Year
  • Warranty：One Year
  • Type：Tensile Testing Machine
  • Maxcapacity：200kg
  • Accuracy Grade：0.5
  • Load Way：Electronic Load

Base Info

  • Model NO.：HD-B609B-S
  • Loading Method：Dynamic Load
  • Display：Digital, Computer Display
  • Control：Computer Control
  • Weight：0-100Kg
  • Power Source：AC220V
  • Standards：ASTM JIS Cns Pstc
  • Motor：Servo Motor
  • Delivery Time：15 Days After Receive The Deposit
  • Disign Criteria：ASTM, Cns, JIS, Pstc
  • Power：1 Phase, 220V, 50Hz
  • Load Precision：≤ 0.5%
  • Test Speed：20-300mm,Min
  • Outside Dimension：520 × 520 ×1200mm
  • Usage：Film Elongation Tensile Test
  • Transport Package：Strong Plywood Case
  • Specification：Design Standards: GB,T16491; GB,T1040; GB,T1041; G
  • Trademark：Haida
  • Origin：Dongguan, China
  • HS Code：9024109000
  • Production Capacity：150 Sets Per Month

Description

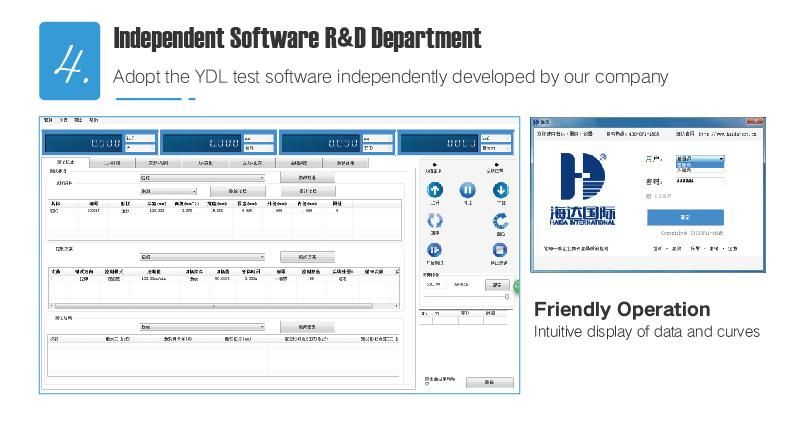

ItemDescriptionMax. Force200 kg (2KN)Load cellChina brand load cell Control system PC with windows 7 systemMotoradjustable-speed motor with reduction box, high-precision mechanical ball screw rodForce reading kgf, Ibf, N, KN, T etcStoke900mm including fixtureLoad cell Resolution1/100,000Load Precision≤1%Test speed50~300mm/min (adjustable by rotary knob)Software TM 2101Curves displayLoad- elongation, Elongation-time, Time-elongation, Stress-strainData displayMax. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc…Safety features E-Stop

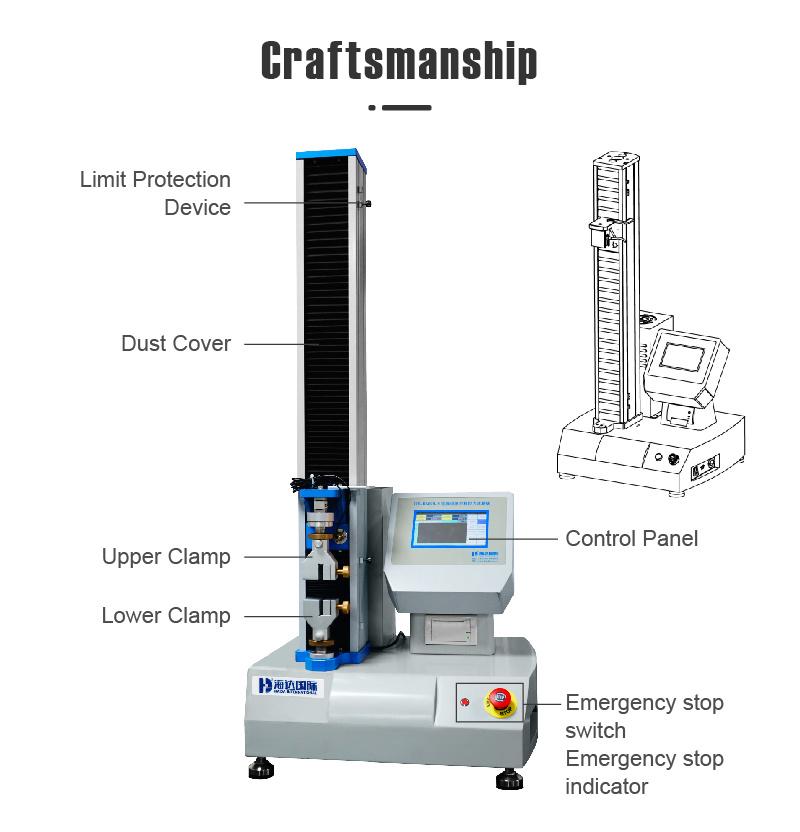

Over-load protection
Upper and lower limit switches
Load sensor with automatic retreat  APPLICATIONS
  1. Deformation under defined load: Test deformation under defined load of tested sample
  2. Load under defined deformation: Test load under defined deformation of tested sample
  3. Software can issue report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.

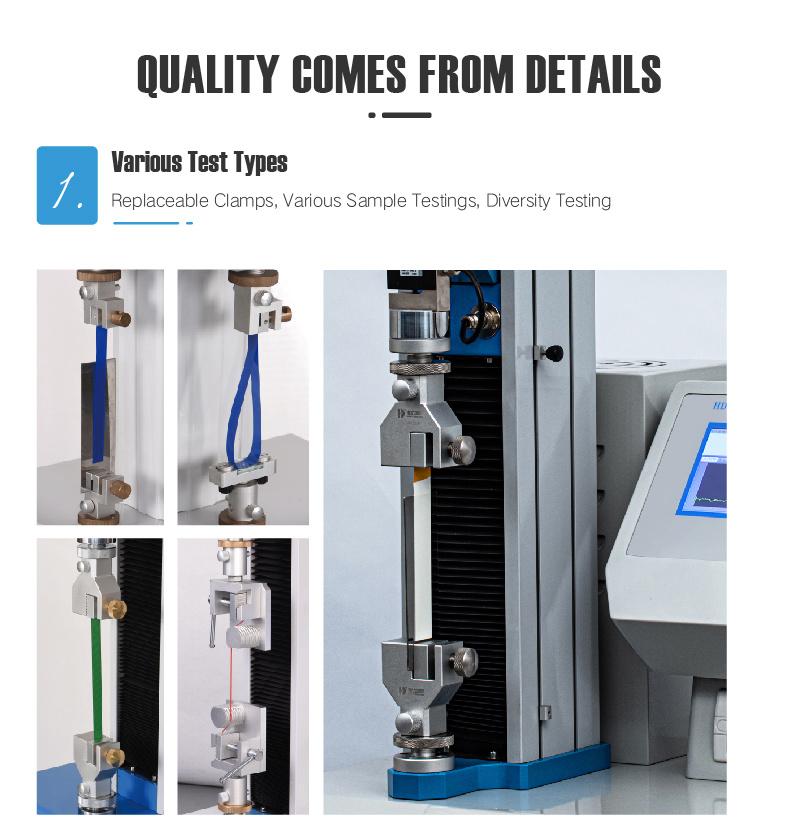

4.  This machine can do different test as per customer requirement such as peel test, tear test, compression test, bend test with different clamps.
 Single Column Film Elongation Tensile Test/Testing EquipmentSingle Column Film Elongation Tensile Test/Testing EquipmentSingle Column Film Elongation Tensile Test/Testing EquipmentSingle Column Film Elongation Tensile Test/Testing EquipmentSingle Column Film Elongation Tensile Test/Testing EquipmentSingle Column Film Elongation Tensile Test/Testing EquipmentSingle Column Film Elongation Tensile Test/Testing EquipmentSingle Column Film Elongation Tensile Test/Testing Equipment

HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 24 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.
