• Model NO.：GD-0165B
• Heating Furnace of Distillation Flask：(0~1300)W, Adjustable
• Heating Power of Receiver：350W, Automatically Controlled
• Temperature Control Point of Receiver：Ambient to 99c+,-3cadjustable
• Vacuum Residual Pressure：(2~99) Mmhg+,-0.1mmhg
• Volume of Buffer Vessel：1000ml
• Warranty：12 Months
• Transport Package：Plywood or Wooden Case
• Origin：Chongqing China
• HS Code：9031809090
• Production Capacity：200 PCS , Month

Basic Info.

Model NO. GD-0165B Heating Furnace of Distillation Flask (0~1300)W, Adjustable Heating Power of Receiver 350W, Automatically Controlled Temperature Control Point of Receiver Ambient to 99c+/-3cadjustable Vacuum Residual Pressure (2~99) Mmhg+/-0.1mmhg Volume of Buffer Vessel 1000ml Warranty 12 Months Transport Package Plywood or Wooden Case Origin Chongqing China HS Code 9031809090 Production Capacity 200 PCS / Month

Product Description

Semi-automatic Vacuum Distillation System for reduced pressure distillations of petroleum products



Semi-automatic Vacuum Distillation System:

The Semi-automatic Vacuum Distillation System is designed and made as per industrial standard SH/T 0165-92 Standard Test Method for Distillation Characteristics of Petroleum Products with High Boiling Point Range by Vacuum Process.
The Semi-automatic Vacuum Distillation System is suitable to determine the distillation characteristics of wax oil, lubricating oils and other petroleum products with high boiling point range.


Features:

1. It adopts single-chip machine technology to control the vacuum pressure automatically.
2. It adopts high accuracy temperature sensor to detect the steam temperature automatically. No need to observe it by naked eye.
3. It adopts LCD technology, can input, modify and show parameters and control them by touch screen.
4. It equips a micro-printer to save and print test results.



Specifications:

1. Power supply: AC(220±10%)V , 50Hz.
2. Heating furnace of distillation flask:  (0~1300)W, adjustable
3. Heating power of receiver: 350W,automatically controlled.
4. Temperature control point of receiver:  Ambient to 99ºC±3ºC,adjustable.
5. Setting range of vacuum residual pressure:  (2~99) mmHg±0.1mmHg.
6. Measurement range of vacuum residual pressure:
(2~150) mmHg±0.1mmHg, automatic pressure maintenance
7. Volume of buffer vessel: 1000ml
8. Illumination light in the air bath :Energy saving lamp
9. Working condition:  Ambient temp.:(5~35)ºC;  RH:< 85%
10. Dimension:  600mm×230mm×605mm


Optional Accessory: Vacuum calibration table

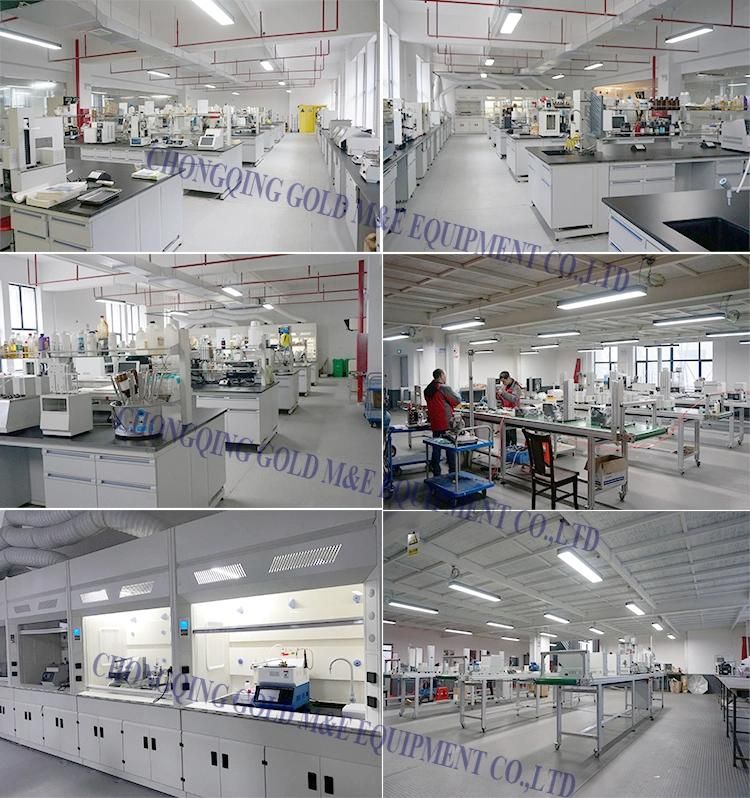

Welcome to visit our laboratory!
