• Model NO.：HD-F750A
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC220V
• Warranty：One Year
• Operation：Easy to Operate
• Sensor：Load Cell
• Capacity：200kg
• Unit：Kg, N, Lb
• up Plate：Diameter 200mm, Bottom Fillet R1mm
• Low Plate：420×420mm, Holes Diameter 6mm, Space 20mm
• Max Stroke：200mm
• Motor：AC Motor
• Driver：Taiwan High Precision Ball Screw
• Transport Package：Strong Case
• Specification：ISO
• Trademark：Haida
• Origin：Dongguan
• HS Code：9024
• Production Capacity：30 Sets Per Month

Basic Info.

Model NO. HD-F750A Control Computer Control Weight 100-500Kg Power Source AC220V Warranty One Year Operation Easy to Operate Sensor Load Cell Capacity 200kg Unit Kg, N, Lb up Plate Diameter 200mm, Bottom Fillet R1mm Low Plate 420×420mm, Holes Diameter 6mm, Space 20mm Max Stroke 200mm Motor AC Motor Driver Taiwan High Precision Ball Screw Transport Package Strong Case Specification ISO Trademark Haida Origin Dongguan HS Code 9024 Production Capacity 30 Sets Per Month

Product Description

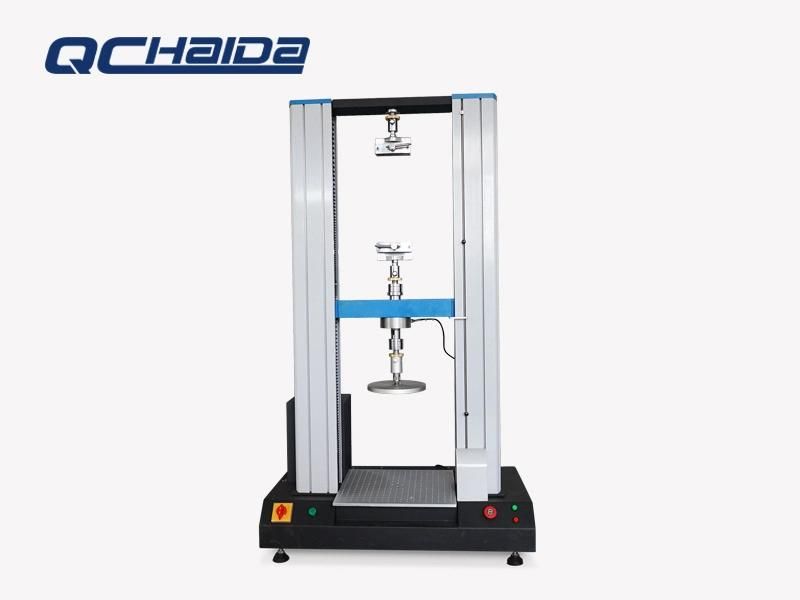

Computer Control Foam Compression Testing Machine / Universal Testing Machine
Foam Compression IFD Tester is used to test material compressed indentation hardness, such as sponge, foam and other porous elastic. Put specimen under pressure plate, the plate compress the specimen
With a specify speed until the national standard require concavity, the load cell feedback the pressure to computer, it processing and display, then measure the indentation hardness of sponge, foam and other materials.
.

Standard Parameters:

Control   and display	Computer
Sensor	Load   cell
Capacity	200KG
Unit	Kg,   N, LB
Up   plate	Diameter   200mm, bottom fillet R1mm
Low   plate	420×420mm,   holes diameter 6mm, space 20mm
Max   stroke	200mm
Test   speed	100±20mm/min
Motor	AC   motor
Driver	Taiwan   high precision ball screw
Power	Single   phase, 220V, 50Hz
Weight	160KG
Dimension	1220×750×1260mm

(The table parameters for the company Standard Model parameters, we support customer customization parameters)

The introduction of Haida
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.


If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
1. Pre-service
    24 Hours online service for your consult.
    Help choose right model,and a series  of service,person,advise. main web site:http://haidaequipment.en.made-in-china.com
2. Middle service
    --Give you best offer
    --Provide discount for many sets order
    --Do customer's request:
    --Choose payment term you convienent.
    --Promptly production and delivery,inform you in time.
    --Can provide invoice value as you like to decrease your tax.
3. After sale service
   --1 year warranty service and all life maintenance.
   --Technical Egineer are avalible for oversea trainning.
   --Free change for some parts
   --Remote control technical consult
   --Free installation DVD
   --Maintenance plan
4,Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
5,Good Packaging:
Good Packaging:  Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
