GDTF-240/240 AC Resonant Test System
HV Hipot Electric Co., Ltd.- Connectors:USB
- Test Mode:Saved Test
- Usage:Power Cable
- Test Region:Unformed
- Cable Type:Shielded
- Power:Electricity
Base Info
- Model NO.:GDTF-240,240
- Certification:ISO
- Customized:Customized
- Color:Red
- Output Voltage:240kv
- Rated Capacity(kVA):240
- Power Supply:Single phase 220V or 3-phase 380V
- Rated current:1A
- Working frequecny:30-300Hz
- Transport Package:Wooden Case
- Specification:SGS, ISO
- Trademark:HV Hipot
- Origin:China
- HS Code:9030899090
- Production Capacity:1000PCS,Year
Description
Basic Info.
Model NO. GDTF-240/240 Certification ISO Customized Customized Color Red Output Voltage 240kv Rated Capacity(kVA) 240 Power Supply Single phase 220V or 3-phase 380V Rated current 1A Working frequecny 30-300Hz Transport Package Wooden Case Specification SGS, ISO Trademark HV Hipot Origin China HS Code 9030899090 Production Capacity 1000PCS/YearProduct Description

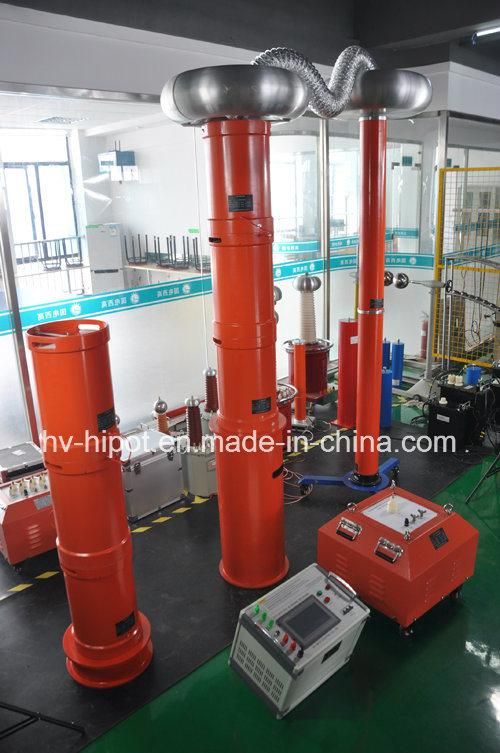

GDTF-240/240 is applied for hipot test to 145KV GIS with 6 big intervals and 6 small intervals( the big interval is 1000pF, the small interval is 500pF), the capacity is less than 0.009uF, the testing frequency is 30-300Hz, the testing voltage is 220KV and the testing time is 1min.Technical parameters
Rated capacity | 240kVA |
Input power supply | Single phase 220V/Three phase 380V; 50Hz |
Rated voltage | 240kV |
Rated current | 1A |
Working Frequency | 30-300Hz |
Output waveform | sine wave |
Waveform distortion rate | ≤1% |
Working time | constant working of 5mins under rated load. Working of 1min, under 1.1 times of rated voltage |
Temperature rise | ≤65K after constant working of 5mins under rated load |
Quality factor | Q ≥30 (f=45Hz) |
Protective function | Over-current, over-voltage and flashover protections for test object. |
Accuracy | 1.5% (RMS) |
