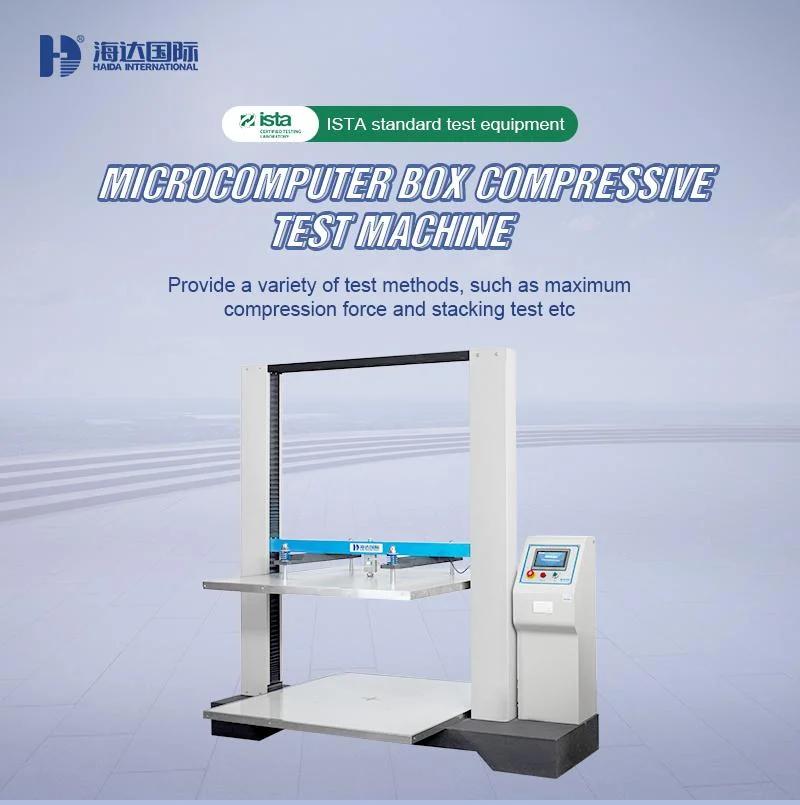

1000kn Container Compression Testing Chamber
Dongguan Haida Equipment Co., Ltd.- Warranty:One Year
- Type:Compression Testing Machine
- Maxcapacity:<1000KN
- Accuracy Grade:0.5
- Power Source:AC220V
- Capacity:10kn
Base Info
- Model NO.:HD-A501-1200
- Motor:AC Motor, Guild Rod
- Delivery Time:20 Days After Receive The Deposit
- Speed of Compression:10 ± 3 mm,Min
- Load Resolution:1,10, 000
- Effective Test Area:700×900×900mm
- Transport Package:Strong Wooden Case
- Specification:TAPPI-T804, JIS - 20212, GB4857.3.4 ASTM-D642
- Trademark:Haida
- Origin:Dongguan, China
- HS Code:9024109000
- Production Capacity:150 Sets Per Month
Description
Basic Info.
Model NO. HD-A501-1200 Motor AC Motor, Guild Rod Delivery Time 20 Days After Receive The Deposit Speed of Compression 10 ± 3 mm/Min Load Resolution 1/10, 000 Effective Test Area 700×900×900mm Transport Package Strong Wooden Case Specification TAPPI-T804, JIS - 20212, GB4857.3.4 ASTM-D642 Trademark Haida Origin Dongguan, China HS Code 9024109000 Production Capacity 150 Sets Per MonthProduct Description

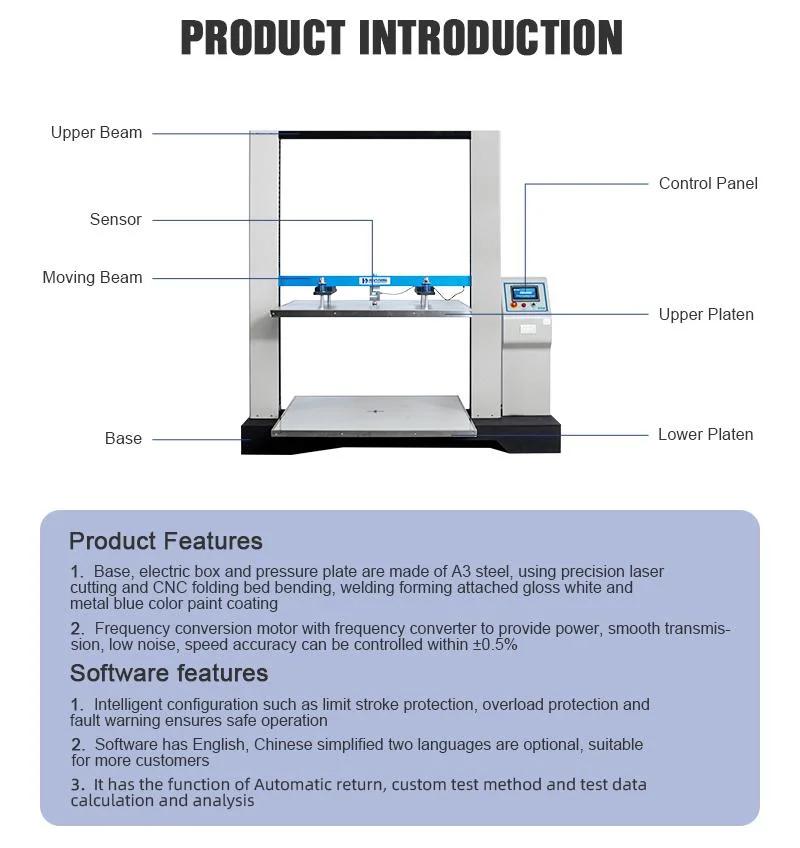

1000KN Container Compression Testing MachineSpecifications:
1.AC frequency conversion motor (Taiwan).
2.For box compression testing.
3.Carton test.
The usage:

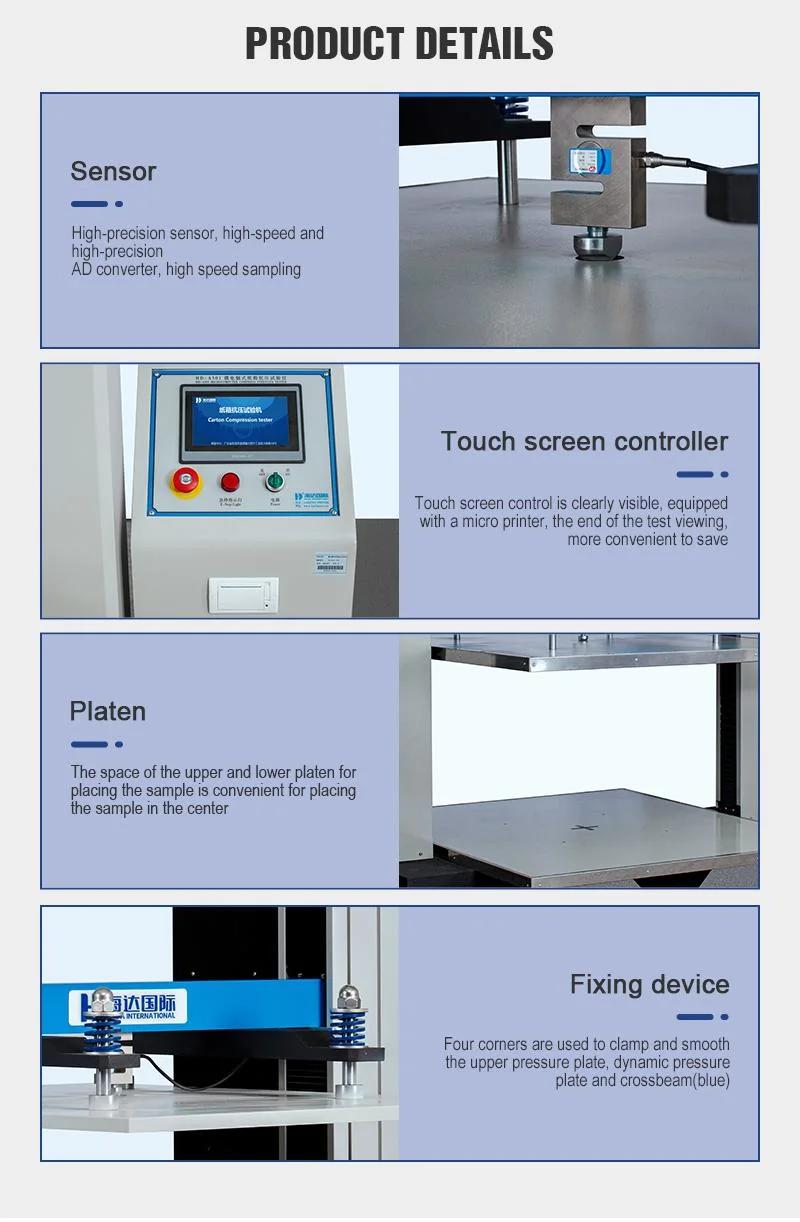

10KN Container Compression Testing Machine is used for measuring the pressure strength of boxes,cartons, packaging containers, etc. for inspecting the pressure-resistance and strike-endurance of packing materials during transportation or carry. Also it can do hold pressure stacking test ,It's equipped with 4 precise Load Cells for detection. The testing results are displayed by computer.
The Main Parameters of Compression Testing Machine:
(The table parameters for the company Standard Model parameters, we support customer customization parameters)
Item | Description |
Max. Force | 1000KG |
Load cell | 1 load cell |
Control system | PLC control |
Motor | AC motor, guild rod |
Force reading | kgf, Ibf, N etc |
Load cell Resolution | 1/100,000 |
Load Precision | within ±0.5% |
Parallelism of Platens | Parallel within ±5mm |
Effective test area | 700×900×900mm |
Test speed | 10 ±3mm/min |
Report output | Mini-printer, thermal printing |
Data display | Load, displacement, speed |
Safety features | E-Stop Over-load protection Upper and lower limit switches |
TAPPI-T804,JIS-20212,GB4857.3.4,ASTM-D642

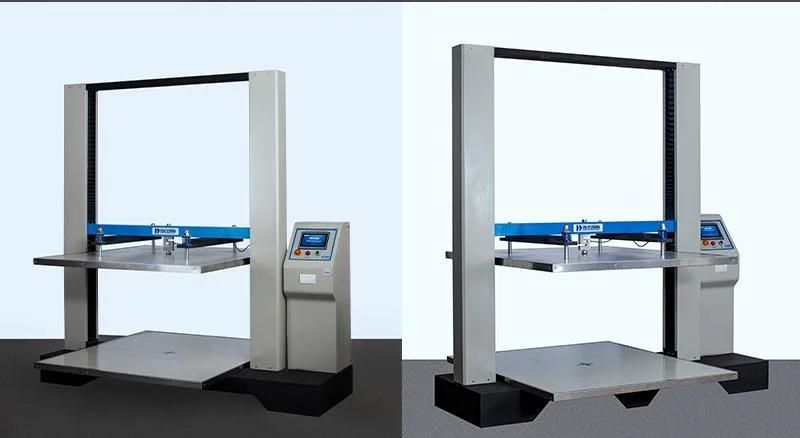

Images:
The Introduction Of Haida
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
1. Pre-service
24 Hours online service for your consult.
Help choose right model,and a series of service,person,advise. main web site:http://haidaequipment.en.made-in-china.com
2. Middle service
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
3. After sale service
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
--Free installation DVD
--Maintenance plan
4,Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
5,Good Packaging:
Good Packaging: Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
