• Model NO.：HD-A501-900
• Load Precision：Within ±0.5%
• Load Cell Resolution：1,100, 000
• Motor：AC Motor, Guild Rod
• Transport Package：Strong Wooden Case
• Specification：Tappi-T804, JIS-20212, GB4857.3.4, ASTM-D642
• Trademark：HAIDA
• Origin：China
• HS Code：9024109000
• Production Capacity：150sets,Month

Basic Info.

Model NO. HD-A501-900 Load Precision Within ±0.5% Load Cell Resolution 1/100, 000 Motor AC Motor, Guild Rod Transport Package Strong Wooden Case Specification Tappi-T804, JIS-20212, GB4857.3.4, ASTM-D642 Trademark HAIDA Origin China HS Code 9024109000 Production Capacity 150sets/Month

Product Description

Automatic Control Compression Test Machine for Package Test Machine
Usage:

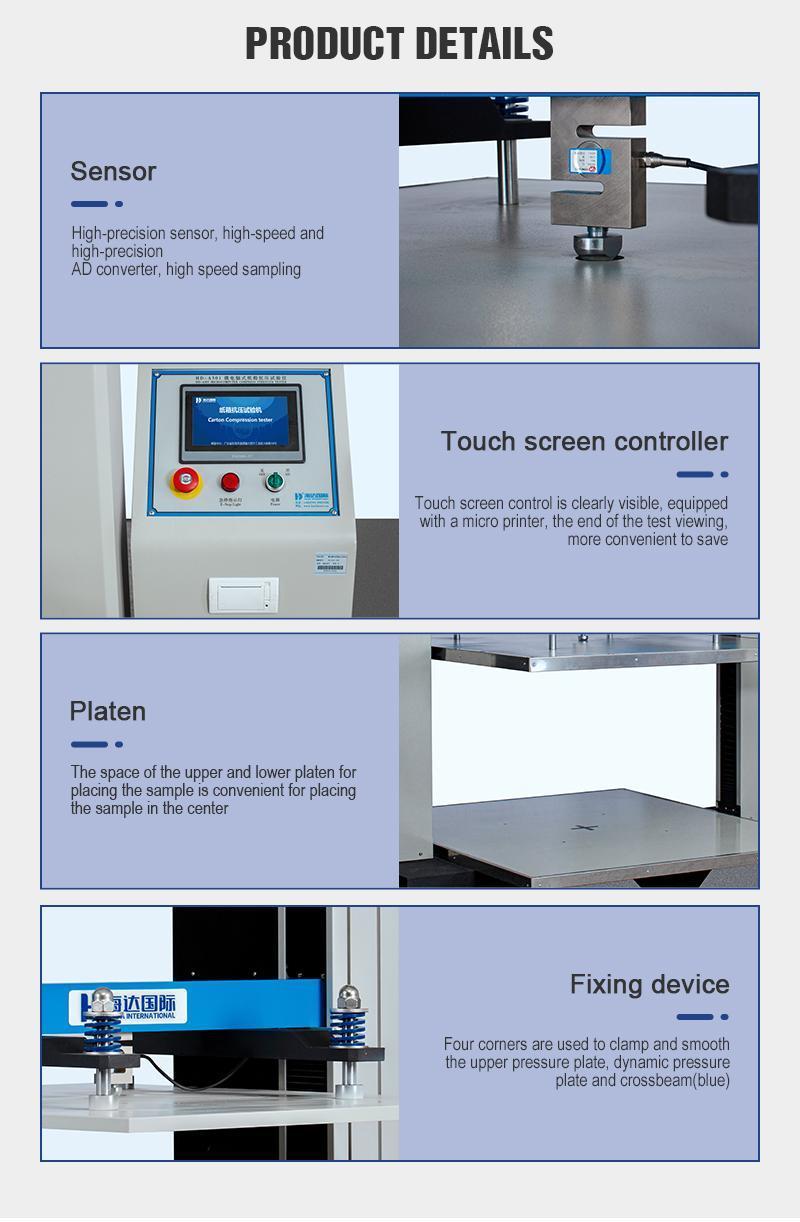

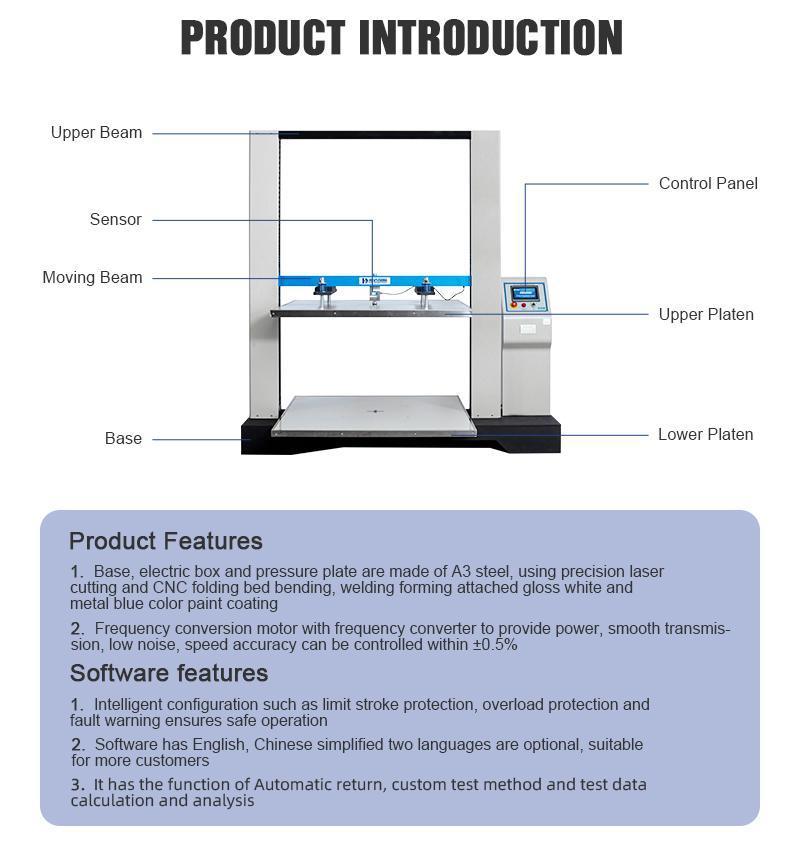

PLC(programmable logic controller) Compression Test Machine For Package Test is used for measuring the pressure strength of boxes,cartons, packaging containers, etc. for inspecting the pressure-resistance and strike-endurance of packing materials during transportation or carry. Also it can do hold pressure stacking test ,It's equipped with 4 precise Load Cells for detection. The testing results are displayed by computer.




Design Criteria:
TAPPI-T804,JIS-20212,GB4857.3.4, ASTM-D642, QB/T1048, BS EN ISO 12048, GB/T4857.16,GB/T8167, GB/T8168, GB/T4857.3,GB/T4857.4



The Main Parameters:

Item	Description
Max. Force	1000KG
Load cell	1 load cell
Control system	PLC control
Motor	AC motor, guild rod
Force reading	kgf, Ibf, N etc
Load cell Resolution	1/100,000
Load Precision	within ±0.5%
Parallelism of Platens	Parallel within ±5mm
Effective test area	700×900×900mm
Test speed	10 ±3mm/min
Report output	Mini-printer, thermal printing
Data display	Load, displacement, speed
Safety features	E-Stop Over-load protection Upper and lower limit switches

(The table parameters for the company Standard Model parameters, we support customer customization parameters)







The Introduction of Haida:
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.


Our Service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
1. Pre-service
    24 Hours online service for your consult.
    Help choose right model,and a series  of service,person,advise. main web site:http://haidaequipment.en.made-in-china.com
2. Middle service
    --Give you best offer
    --Provide discount for many sets order
    --Do customer's request:
    --Choose payment term you convienent.
    --Promptly production and delivery,inform you in time.
    --Can provide invoice value as you like to decrease your tax.
3. After sale service
   --1 year warranty service and all life maintenance.
   --Technical Egineer are avalible for oversea trainning.
   --Free change for some parts
   --Remote control technical consult
   --Free installation DVD
   --Maintenance plan
4,Commitment:
   We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
5,Good Packaging:
   Good Packaging:  Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.


Customer Feedback:



FAQ:

Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 12 years focusing on test equipment field,6 years exporting experience.

Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.

Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 12 months by HAIDA,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.

Q:What about the product' services and quality?
A:Each equiopment must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer's company when you need. products are widely recognized and trusted by users.
A :Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.

Q: Can your products be customized?
A: Yes, our product can be customized according to your parameters.
