Automatic Oxygen Bomb Calorimeter for Testing Calorific Value of Oil Products and Combustible Material

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • Product Name：Oxygen Bomb Calorimeter for Calorific Value
  • Standard：ASTM D240, ASTM D5865
  • Feature：Automatic
  • Heat Capacity：(14000~15000)J,K
  • Temperature Resolution：0.001K
  • Pressure Endured by Oxygen Bomb：20MPa

Base Info

  • Model NO.：GDY-1C
  • Computer Interface：Yes
  • Printing：with External Printer
  • Dimension：600*460*430mm(PC Is Not Included)
  • Delivery Time：10 Working Days(If Urgent, We Can Push)
  • Transport Package：Wooden Case for Gdy-1c
  • Trademark：GOLD
  • Origin：Chongqing, China
  • Production Capacity：100 Sets, Month

Description

No.ItemSpecifications1Heat capacity14000~15000J/K2Temperature measurement range10 ~ 35ºC3Temperature resolution0.001 ºC4Repeatability error≤0.2 % (Grade C)5Endured pressure in oxygen bomb20 MPa6Operation environment temperature15 ~ 28ºC(Ambient temperature); Temperature fluctuation is not more than 1 ºC during a test;7Ambient humidityless than 85%8Power supplyAC 220V±5%, 50 Hz



Related Models:

ParametersGDY-1AGDY-1A+GDY-1CTest modeManualSemi-autoAutomaticControl modelIn-build computerMicro-computerComputerPacking Size

72*59*51;

47*47*28;

71*56*50;

46*37*26;

69*55*48;

45*37*25;

58*52*84;

Gross Weight40kg33kg63kg

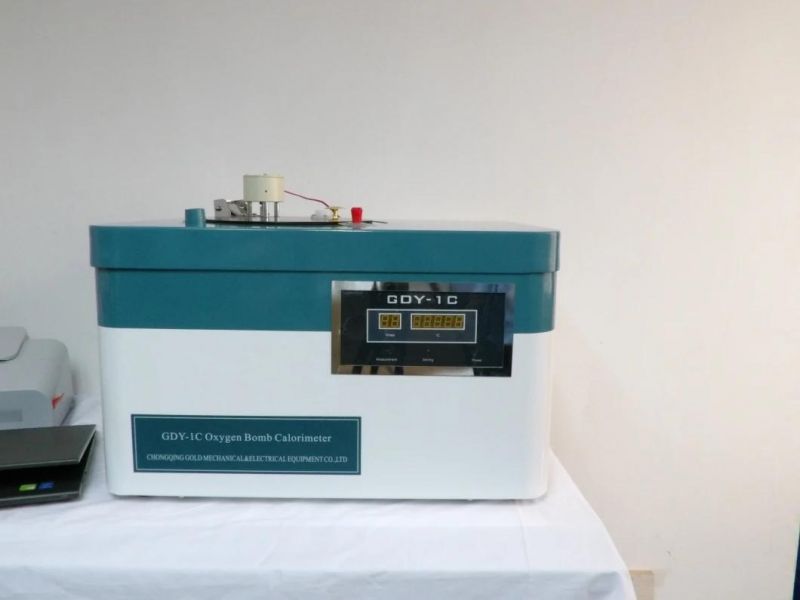

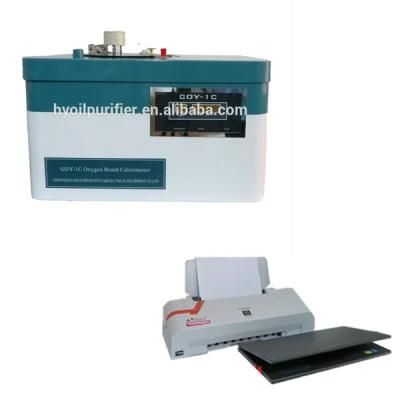

Detail Images:
Automatic Oxygen Bomb Calorimeter for Testing Calorific Value of Oil Products and Combustible Material
