GDCY-20 Impulse Voltage Generator/Test System
HV Hipot Electric Co., Ltd.- Type：Strength Testing Machine
- Maxcapacity：20kV
- Accuracy Grade：1.5
- Load Way：Electronic Load
- Loading Method：Static Load
- Display：Touch Screen Display
Base Info
- Model NO.：GDCY-20
- Control：PLC
- Weight：500-1000Kg
- Power Source：AC Meter
- Oil Cylinder Position：No
- Rated charging voltage：20kV
- Total capacitance：9uFX1
- Rated energy：18kJ
- Transport Package：Wooden Case
- Specification：ISO, SGS
- Trademark：HV Hipot
- Origin：Wuhan China
- HS Code：8543709990
- Production Capacity：500PCS,Year
Description
8. Voltage waveform and amplitude
When charging voltage is 20kV, the generator can output 1.2/50μs waveform of impulse voltage, voltage amplitude 20kV.
Duty cycle: Continuous working at rated voltage and every 120s charging and discharging once. Continuous working at 2/3 of rated voltage and every 10-60s charging and discharging once.
9. The composition of generator
HV DC charging part
Energy storage and discharge part of main body
Wave-adjustable inductors and resistors, and other adjustable components
The ignition sphere gap is cooper ball with tungsten inlay. The control mode is mechanic and impulse way, which can endure big current.
VI. System composition

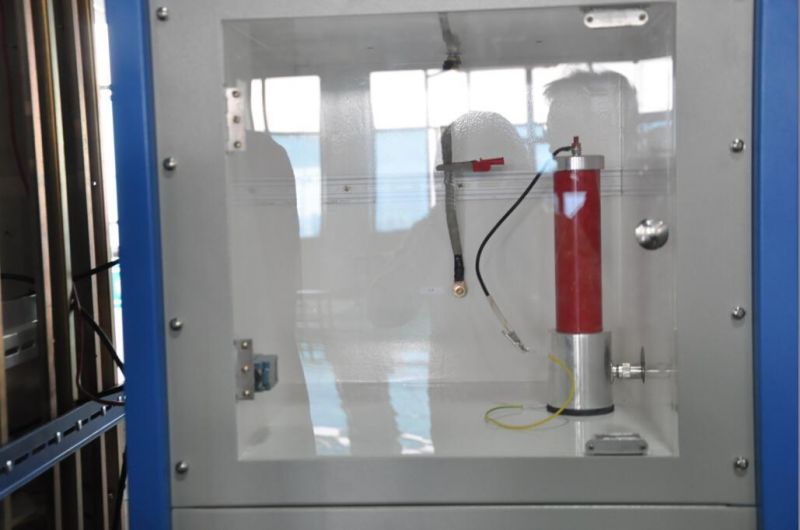

| Name | Basic parameter | Qty | Remark | |
| 1 | Main body | Total capacitance 9μF, output voltage 20kV | 1 | Standard |
| 2 | Measurement device | Voltage divider 20kV | 1 | Standard |

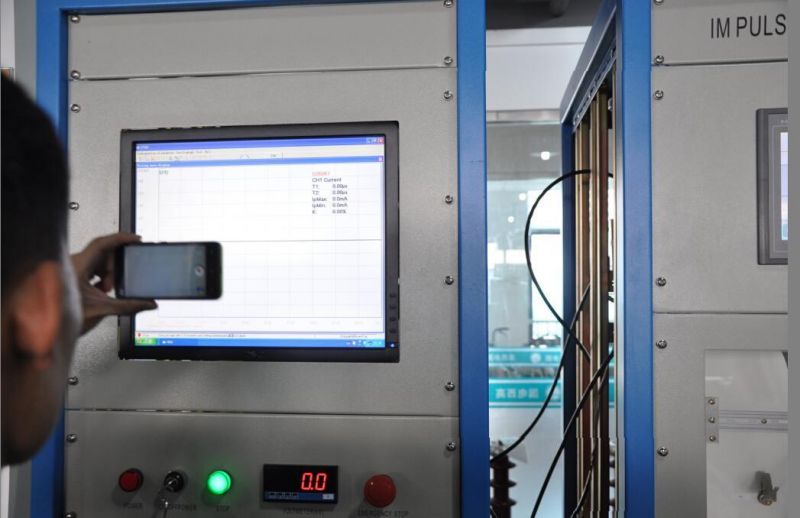

| 3 | Control system | PLC control, touch screen, isolated power supply, safety interlock | 1 | Standard |
| 4 | Digital oscillograph | TDS2012C model | 1 | Required by buyer |
| 5 | Measurement and analysis system | PC, with LCD screen, automatic reading waveform parameters, can be connected with oscillograph, storage data and waveform, print result etc. | 1 | Standard |
Product Details
