• Model NO.：JB-300
• Loading Method：Static Load
• Display：Digital
• Control：Manual Control
• Weight：100-500Kg
• Power Source：AC380V
• Product Name：Impact Test Machine
• Application：Impact Strength Test for Metal Materil
• Pre-Rising Angle of The Pendulum：150c
• Specimen Bearer Span：40+0.2mm
• Round Angle of The Jaw：R1-1.5mm
• Round Angle of Impact Edge：R2-2.5mm,R8±0.05mm
• Angle Accuracy：0.1c
• Standard Specimen Dimension：10mm*10(7.5,5)mm*55mm
• Warranty：12months
• Power Supply：3phs, 380V, 50Hz or 220V,60Hz
• Transport Package：Standard Exporting Plywood Case
• Specification：1000*1000*1560mm
• Trademark：HST
• Origin：China
• HS Code：9024109000
• Production Capacity：100 Set,Month

Basic Info.

Model NO. JB-300 Loading Method Static Load Display Digital Control Manual Control Weight 100-500Kg Power Source AC380V Product Name Impact Test Machine Application Impact Strength Test for Metal Materil Pre-Rising Angle of The Pendulum 150c Specimen Bearer Span 40+0.2mm Round Angle of The Jaw R1-1.5mm Round Angle of Impact Edge R2-2.5mm,R8±0.05mm Angle Accuracy 0.1c Standard Specimen Dimension 10mm*10(7.5/5)mm*55mm Warranty 12months Power Supply 3phs, 380V, 50Hz or 220V,60Hz Transport Package Standard Exporting Plywood Case Specification 1000*1000*1560mm Trademark HST Origin China HS Code 9024109000 Production Capacity 100 Set/Month

Product Description

JB-300 Manual Impact Test Machine



1. ApplicationJB type impact testing machine is used for measuring the metal material resistance performance under dynamic load, in order to determine the material properties under dynamic load.

2. Standards:
ISO148, EN10045, ASTM E23, GB/T3808-2002 ,GB/T229-2007

3. Main Technical Specifications:

Model	JB-300
Reading of dia	0 - 150J (1J/grid); 0 - 300J(2J/grid)
impact energy	150,300J
The distance between the pendulum shaft and impact  point	800mm
Impact speed	5.2m/s
Pre-rising angle of the pendulum	135°
Specimen bearer span	40mm
Round angle of the bearing jaw	R1.0-1.5mm
Round angle of impact blade	R2.0-2.5mm
Thickness of impact blade
Angle accuracy	0.1°
Power supply	Manual
Standard specimen dimension	10mm×10mm×55mm
Dimensions (mm)	1000×630×1520mm
Net Weight (kg)	320Kg

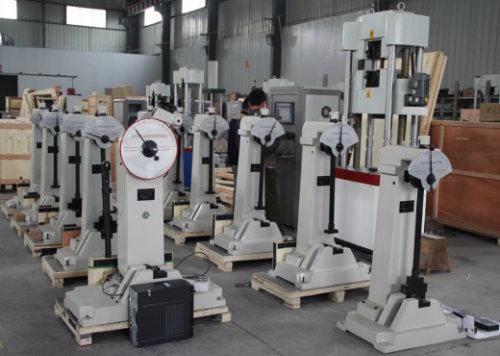

Batch production of the impact test machine

Other models of impact test machine for your choice:

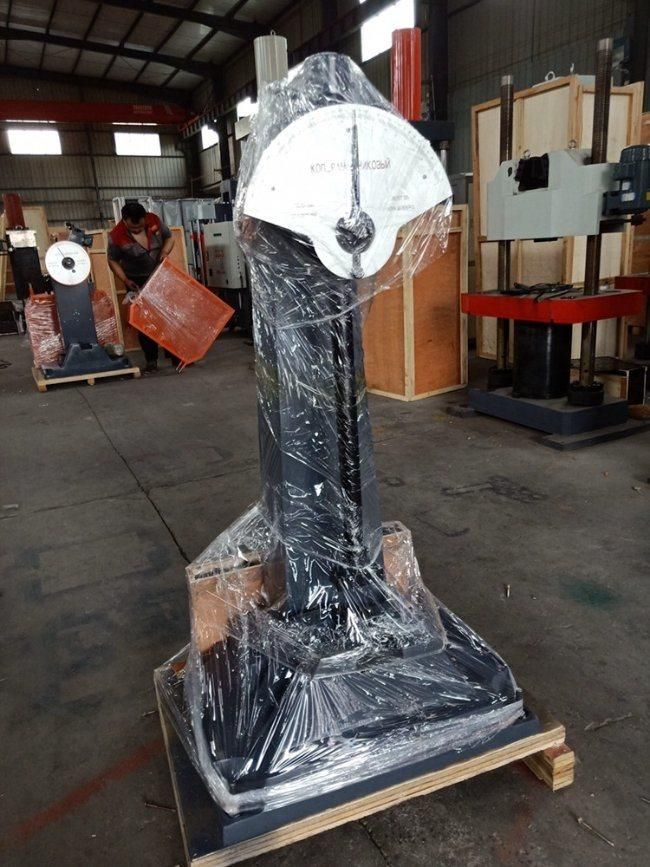

Package & Transportation :

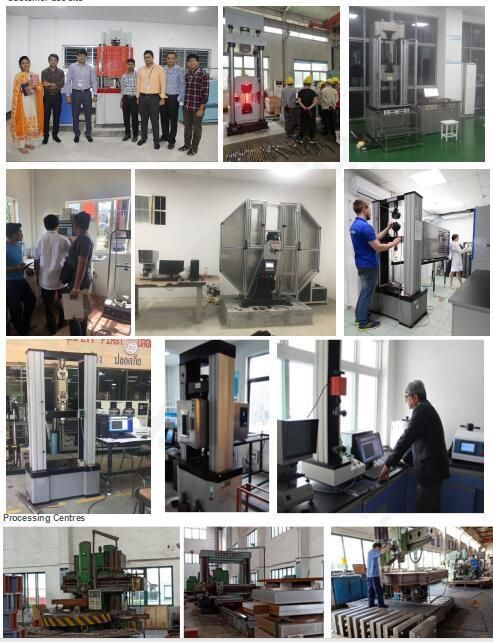

Our customer feedback:

Exhibition site:


CE Certificate:

Company information
