• Model NO.：XJU-22D
• Control：Manual Control
• Weight：0-100Kg
• Power Source：AC220V
• Sample：Plastic,Rubber,Textiles
• Model：Izod
• Impact Speed：3.5m,S
• Impact Energy：5.5j-22j
• Transport Package：Standard Sea Shipping Case
• Trademark：Hensgrand or OEM
• Origin：Jinan, Shandong
• HS Code：9031809090
• Production Capacity：500 Sets,Month

Basic Info.

Model NO. XJU-22D Control Manual Control Weight 0-100Kg Power Source AC220V Sample Plastic/Rubber/Textiles Model Izod Impact Speed 3.5m/S Impact Energy 5.5j-22j Transport Package Standard Sea Shipping Case Trademark Hensgrand or OEM Origin Jinan, Shandong HS Code 9031809090 Production Capacity 500 Sets/Month

Product Description

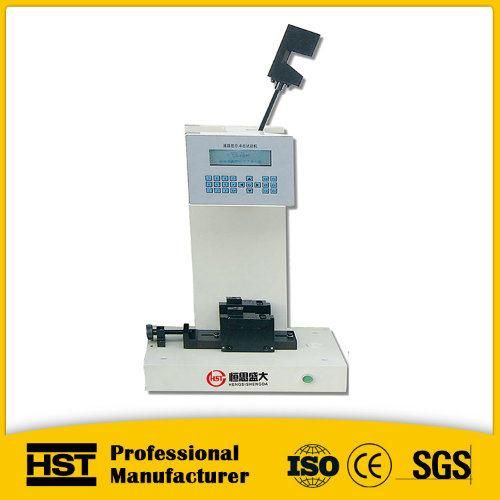

XJU-22D Digital Display Izod Impact Testing Machine 22Joules

1.  Application:

XJU-22D Izod Impact Testing Machine is mainly used in testing the nonmetal materials' impact toughness, such as horniness plastic, strong nylon, glass reinforced plastics, china, clay rock, anti-electric etc . The main technical parameters conform to the requirements of ISO179, ISO180, GB/T1043, GB/T1843, GB/T13525, etc.
2. Features

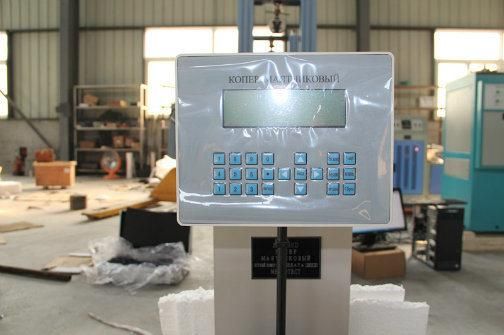

The index value of the dial plate: impact energy 1/200; the plate have the fixed dial plate and the digital plate.The outside of the dial plate is angle, the interlayer is simple-supported value, the inside  is cantilever value.
3. Specifications

Model	XJU-22D
Impact speed	3.5 m/s
Impact energy	5.5 J, 11J, 22J
Distance between pendulum  center  and sample center	322mm
Rising angle of the pendulum	160°
Round angle radius of striking edge	R=0.8±0.2mm
Distance between impact blade and jaw	22±0.2mm
Impact blade angle	75°± l°
Energy loss	5%
Temperature	15°C-35°C
Power	AC220V/50Hz
