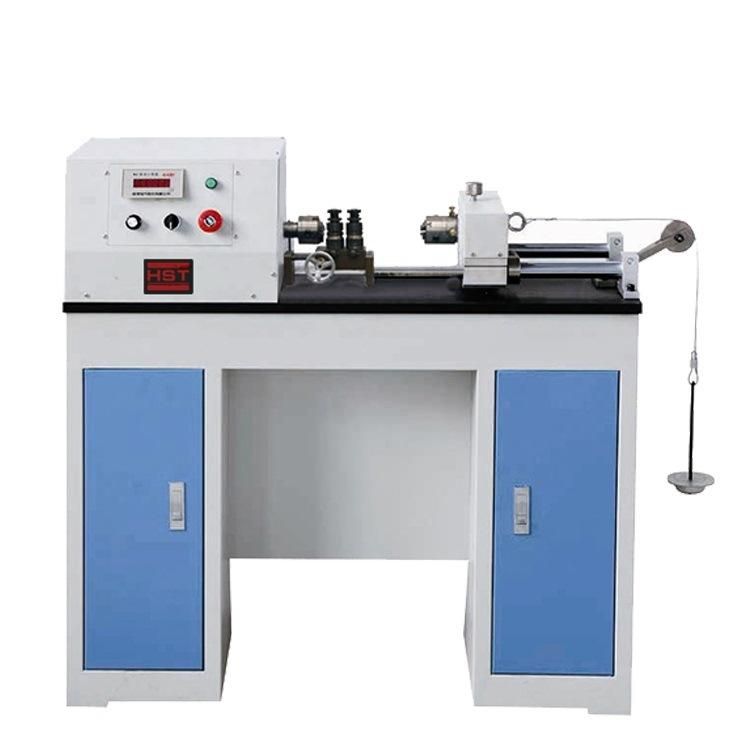

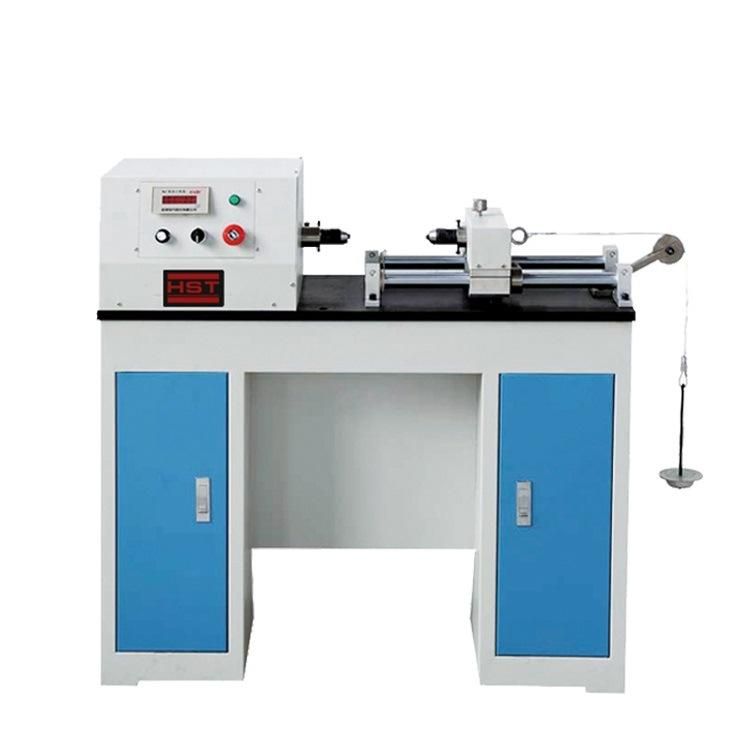

Ez-10 Digital Display Wire Torsion Testing Machine for Wire Diameter 1-10mm
Jinan Kason Testing Equipment Co., Ltd.- Type：Torsion Testing Machine
- Accuracy Grade：1
- Loading Method：Static Load
- Display：Digital
- Control：Manual Control
- Weight：100-500Kg
Base Info
- Model NO.：EZ-10
- Power Source：AC380V
- Transport Package：Plywood Exporting Package
- Specification：350kg, 1.35CBM, color can customize
- Trademark：HST
- Origin：Jinan, Shandong, China
- HS Code：9024109000
- Production Capacity：1000 Sets,Month
Description
Auto-loadingMax. Clamp metal wire diameter (mm) Ф0.2-Ф3.0 Ф1-Ф10 Parallelism of the full moving guide ≤0.2 Max. distance of two chucks (mm) 320 520 Rotation speed adjusting range (r/min) 0-180 0-60 Velocity error <±1% Min. number of circle values 0.1 Two chuck alignment(mm) <Ф0.4 Jaw hardness(HRC) 55-65 Farmar error ±0.5% Work Noise (dB) ≤70 Min. revolutions reading values(r) 1 Power Supply AC 220V±10%,50Hz
Desktop high strength wire torsion host--- 1 Set
1.1 High performance deceleration system --- 1 Set ;
1.2 High precision Taiwan ABBA linear bearings ---- 2 Set ;
1.3 Dedicated wire grip fixtures --- 1 Set ;
1.4 Special tension weights ---- 1 Set ;
Measurement and Control Systems:
2.1 Photoelectric revolving speed measuring device ---- 1 Set ;
2.2 DC speed governing drive ---- 1 Set ;
2.3 DC variable speed motors---- 1 Set ;
2.4 Monitoring and electrical control system ---- 1 Set.
Desktop high strength wire torsion host--- 1 Set
1.1 High performance deceleration system --- 1 Set ;
1.2 High precision Taiwan ABBA linear bearings ---- 2 Set ;
1.3 Dedicated wire grip fixtures --- 1 Set ;
1.4 Special tension weights ---- 1 Set ;
Measurement and Control Systems:
2.1 Photoelectric revolving speed measuring device ---- 1 Set ;
2.2 DC speed governing drive ---- 1 Set ;
2.3 DC variable speed motors---- 1 Set ;
2.4 Monitoring and electrical control system ---- 1 Set.
